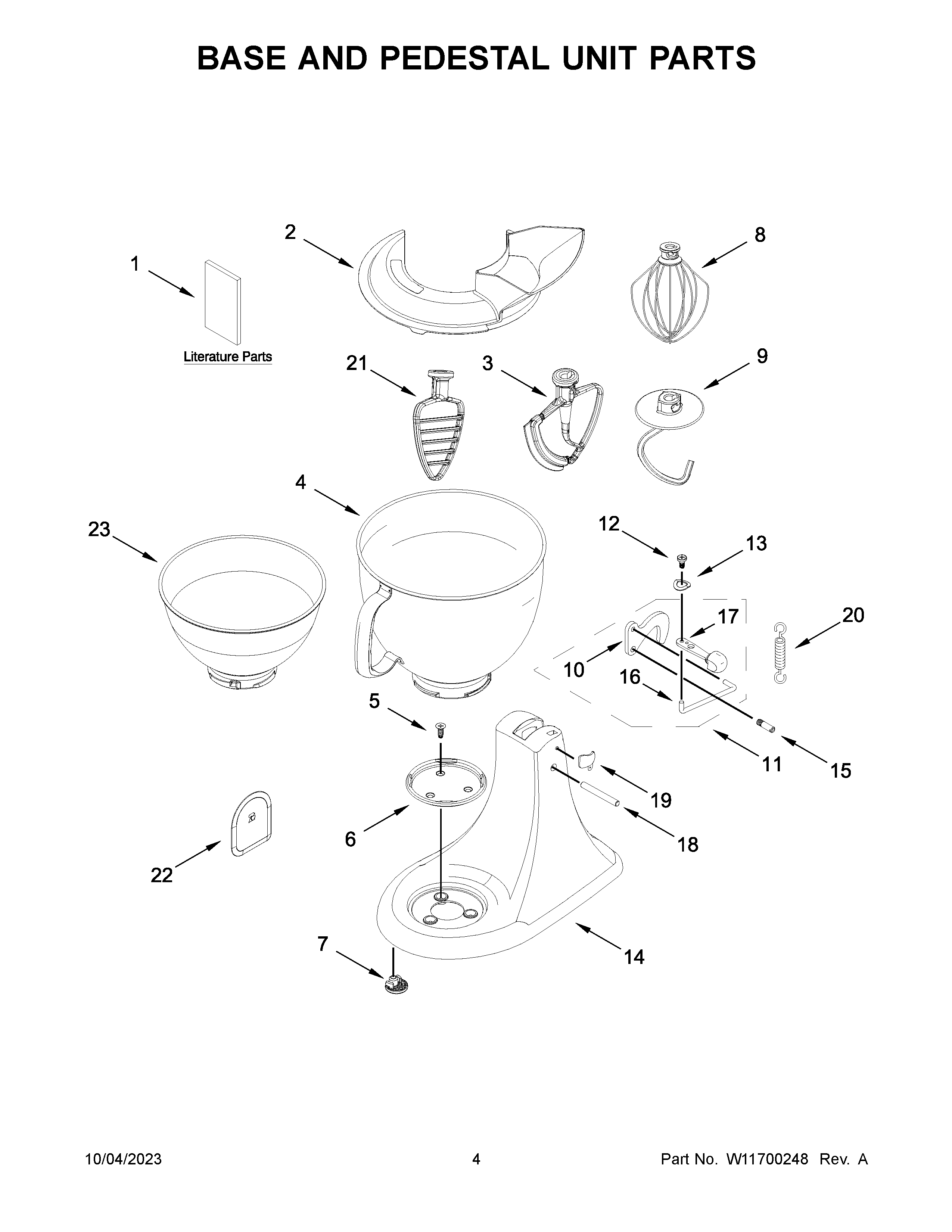

5KSM195PSWMA5 03 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	W11573560 Whirlpool Pour Shelf
3	BEATER, WIPING (SILENT SILVER)
4	BOWL, 5 QT.
5	SCREW
6	WPW10191926 Whirlpool Cap Screw
7	WP9709707 Whirlpool Foot
8	WP9704329 Whirlpool Wire Whip
9	HOOK, DOUGH (SILENT SILVER)
10	W11246352 Whirlpool Latch Mechanism
11	W11416057 Whirlpool Latch Lever
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)
15	W10802060 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17	W11676543 Whirlpool Latch Lever
18	WP16910 Whirlpool Dowel Pin
19	WP3184264 Whirlpool Headlock Assembly
20	W11188450 Whirlpool Spring
21	BEATER, PASTRY (SILENT SILVER)
22	SCRAPER, POT (NYLON)
23	BOWL, 3 QUART
