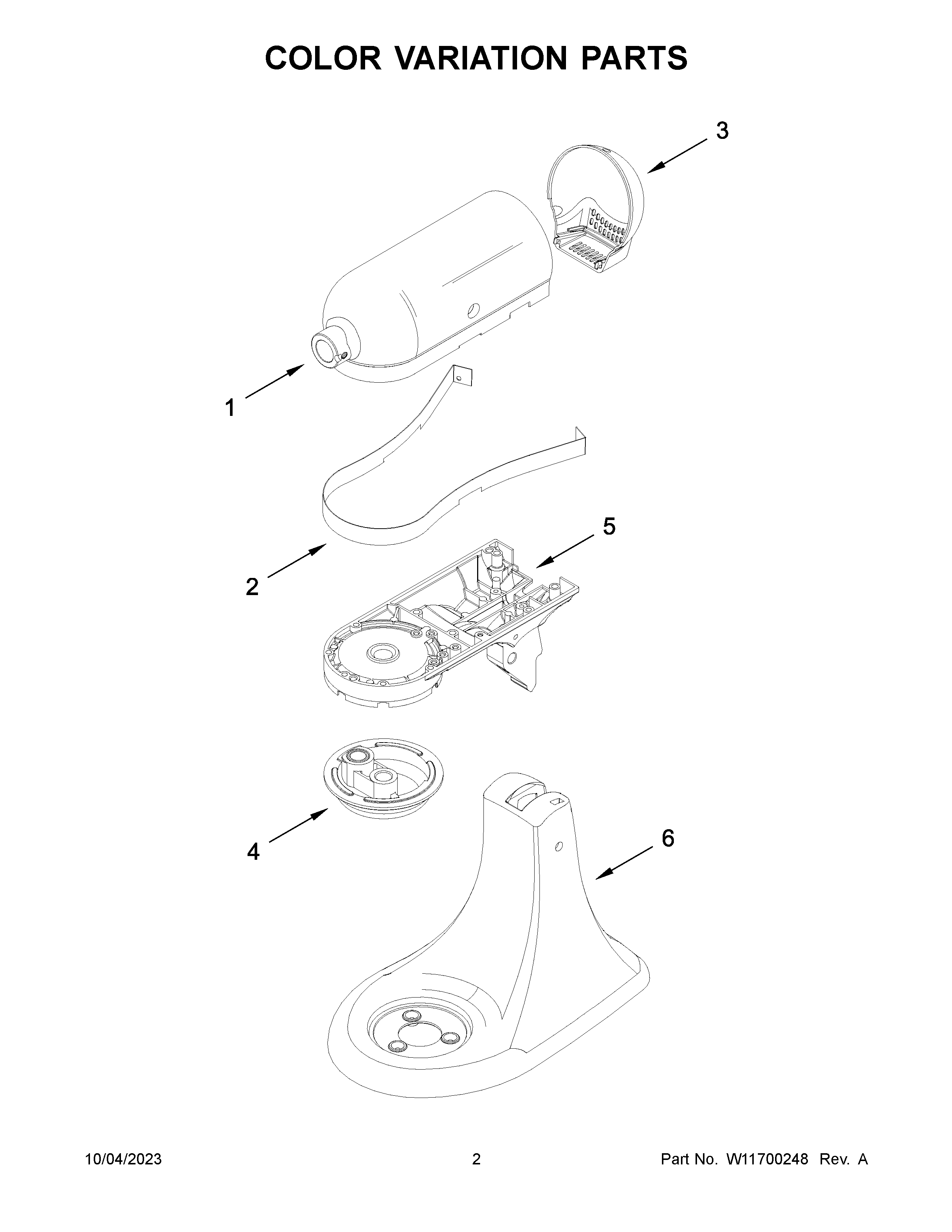

5KSM195PSWVB5 02 – COLOR VARIATION PARTS

5KSM195PSWVB5 02 – COLOR VARIATION PARTS

Written by

in

5KSM195PSWVB5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1MOTOR HOUSING (BLACK MATTE)
1FMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1EMOTOR HOUSING (MAJESTIC YELLOW)
1BMOTOR HOUSING (MATTE DRIED ROSE)
1DMOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE)
1CMOTOR HOUSING (MATCHA)
1AMOTOR HOUSING (CANDY APPLE RED)
2TRIM BAND (DARK PLATINUM)
3AWPW10239110 Whirlpool Cover
3CWPL W11431671
3DWPL W11113835
3WPL W10885707
3FE
3BEND COVER (MATTE DRIED ROSE)
3EEND COVER (MAJESTIC YELLOW)
4AW10239112 Whirlpool Planetary Mixer
4CWPL W11431678
4EPLANETARY (MAJESTIC YELLOW)
4BWPL W11209496
4FWPL W11209470
4W11170306 Whirlpool Planetary Assembly
4DW11113886 Whirlpool Planetary Mixer
5CWPL W11431681
5AW10245786 Whirlpool Gearcase
5DWPL W11113859
5EWPL 24035093
5BWPL W11209493
5FW11209465 Whirlpool Gearcase
5WPL W10885699
6CWPL W11431676
6AWPL W10245720
6BWPL W11209491
6FWPL W11209463
6WPL W11185575
6DWPL W11259895
6EWPL 3184281
