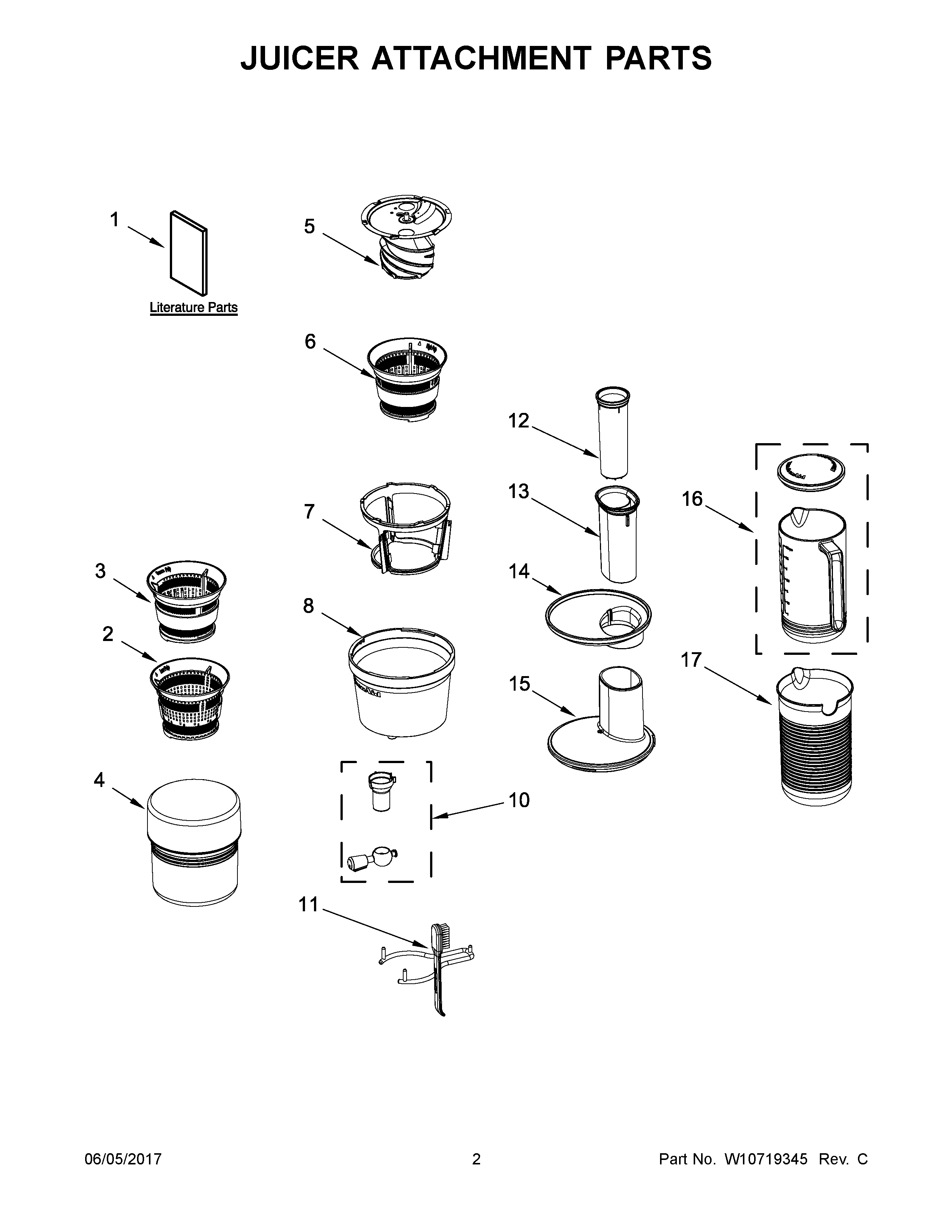

5KSM1JA0 02 – JUICER ATTACHMENT PARTS

5KSM1JA0 02 – JUICER ATTACHMENT PARTS

Written by

in

5KSM1JA0 02 – JUICER ATTACHMENT PARTS

Products

PositionProduct
1USE AND CARE GUIDE,US
1AUSE AND CARE GUIDE, EUROPEAN
2W10724156 Whirlpool Basket Assembly
3W10724157 Whirlpool Basket
4BOX, STORAGE
5BLADE, AUGER ASSEMBLY
6W10724145 Whirlpool Basket
7W10724160 Whirlpool Arm
8W10724161 Whirlpool Bowl Assembly
10W10724165 Whirlpool Stop
11W10724168 Whirlpool Brush
12W10724133 Whirlpool Pusher
13W10724135 Whirlpool Pusher Assembly
14W10724136 Whirlpool Cap
15W10724137 Whirlpool Lid
16CONTAINER, JUICE
17CONTAINER, PULP
