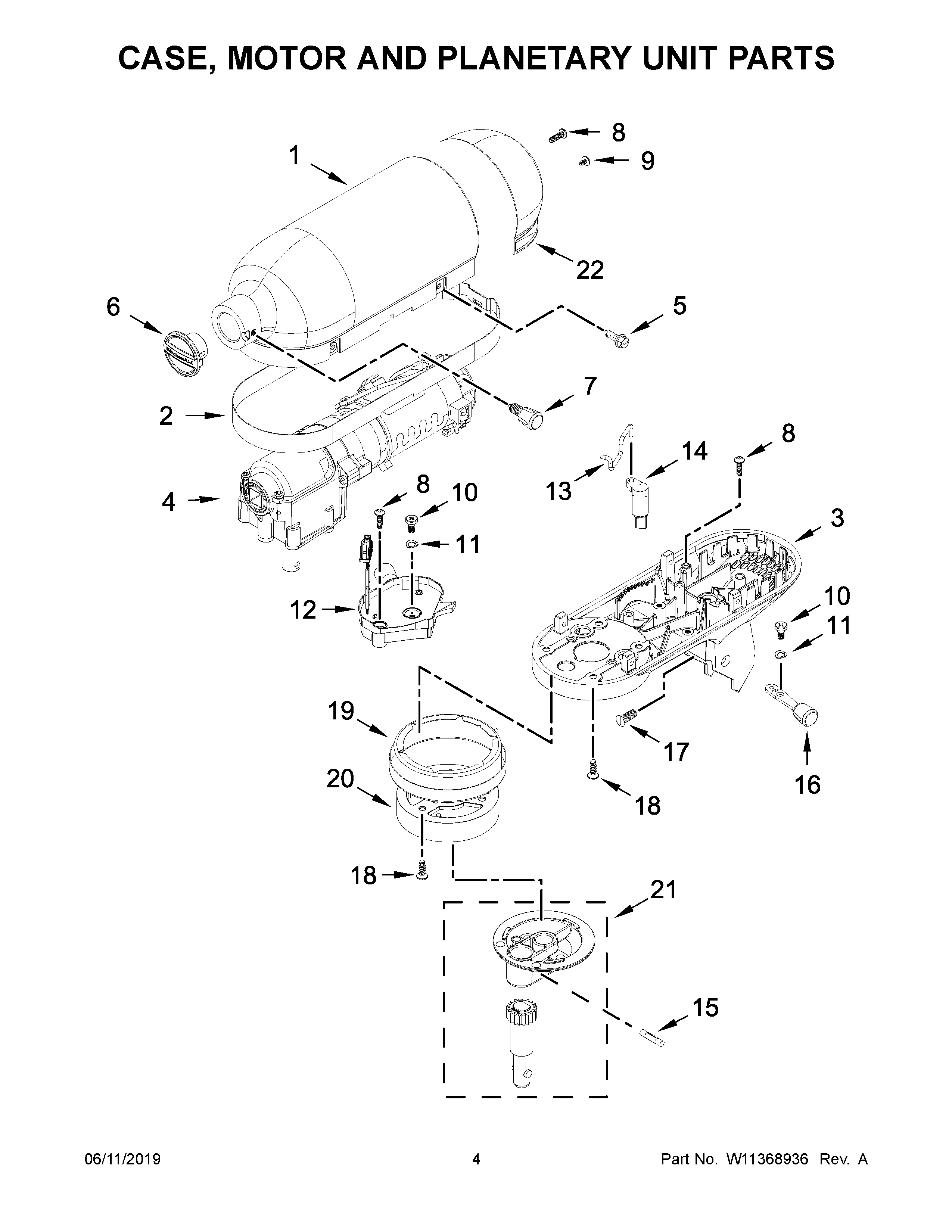

5KSM3310XEWH0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

5KSM3310XEWH0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Written by

in

5KSM3310XEWH0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Products

PositionProduct
1UPPER HOUSING (WHITE)
2TRIM BAND
3LOWER HOUSING (WHITE)
4W10896484 Whirlpool Motor
5WPW10068250 Whirlpool Dishwasher Screw
6W11048596 Whirlpool Hub Chrome Cap
7W11109470 Whirlpool Screw Assembly
8WP3400814 Whirlpool Screw
9W10853069 Whirlpool Screw
10WP110679 Whirlpool Screw
11WP116241 Whirlpool Washer
12W10887360 Whirlpool Speed Control
13WPL W10772250
14WPL W10840237
15WP9705443 Whirlpool Pin Groove
16W11131252 Whirlpool Speed Lever
17W11028216 Whirlpool Screw
18WPL W10830178
19W11129879 Whirlpool Drip Ring
20WPL W10749720
21W10883871 Whirlpool Planetary Mixer
22WPL W10883874
