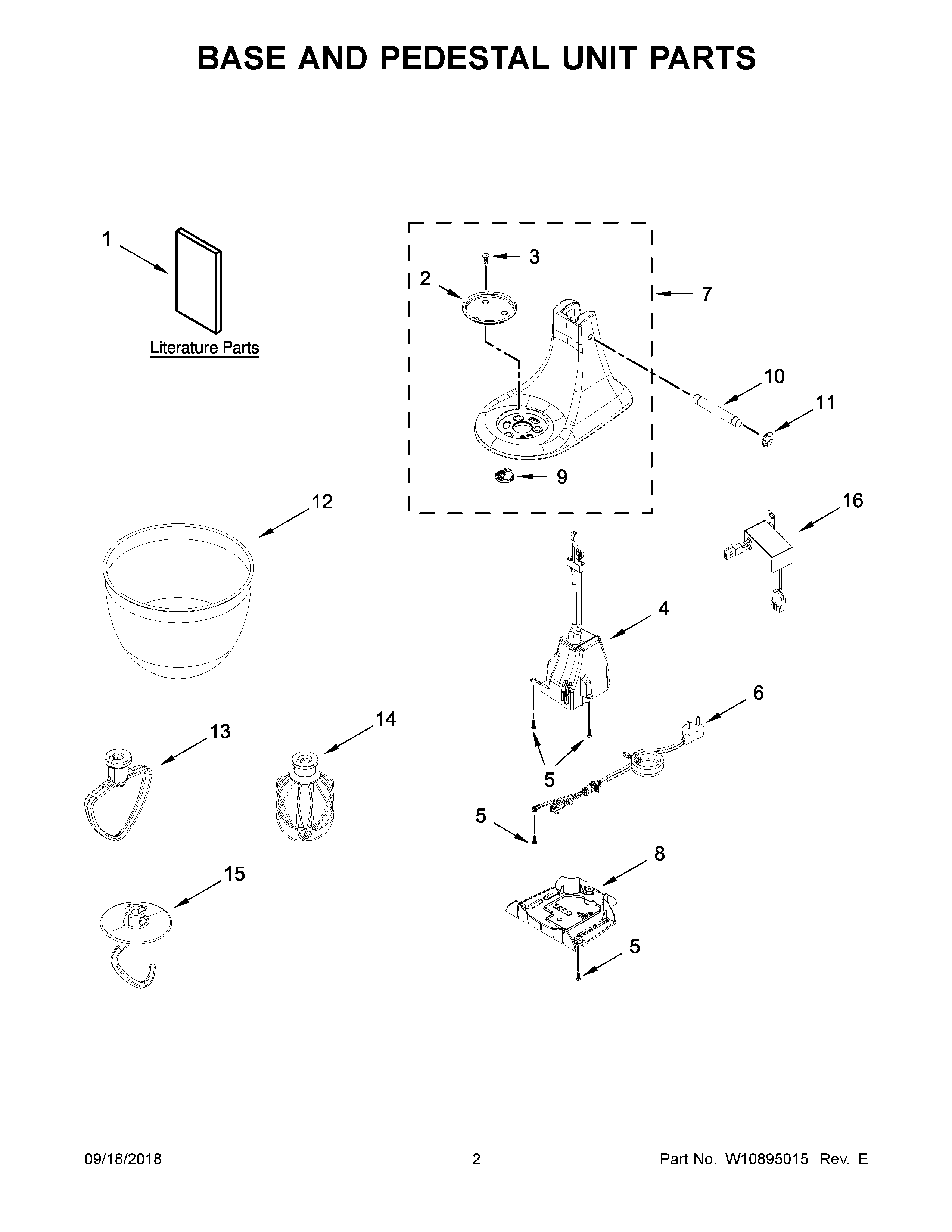

5KSM3311XCGU0 02 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1C	USE & CARE GUIDE (ARGENTINA)
1B	USE & CARE GUIDE (CHINA/BRAZIL)
1D	USE & CARE GUIDE (INDIA)
1A	USE & CARE GUIDE (AUSTRALIA)
1	USE & CARE GUIDE (EUROPE/UNITED KINGDOM)
2	W11189119 Whirlpool Screw Cap
3	SCREW
4A	W11112201 Whirlpool Control
4	W11370750 Whirlpool Control
5	WP3400814 Whirlpool Screw
6G	POWER CORD (WHITE (AUSTRALIA))
6F	W10915001 Whirlpool Appliance Power Cord
6E	POWER CORD (BLACK (BRAZIL – 220V))
6C	W10920187 Whirlpool Power Cord
6D	POWER CORD (BLACK (ARGENTINA))
6B	POWER CORD (BLACK (AUSTRALIA))
6A	POWER CORD (BLACK (UNITED KINGDOM))
6	POWER CORD (BLACK (EUROPE))
7I	PEDESTAL (MATTE GRAY)
7J	PEDESTAL (MATTE WHITE)
7K	PEDESTAL (ONYX BLACK)
7L	PEDESTAL (ORANGE SORBET)
7M	PEDESTAL (TWILIGHT BLUE)
7N	PEDESTAL (CAST IRON BLACK)
7P	PEDESTAL (PISTACHIO)
7O	PEDESTAL (DRIED ROSE)
7H	PEDESTAL (ICE)
7G	W10756517 Whirlpool Pedestal
7F	PEDESTAL (HONEYDEW)
7E	PEDESTAL (GUAVA GLAZE)
7D	PEDESTAL (EMPIRE RED)
7C	PEDESTAL (CONTOUR SILVER)
7B	PEDESTAL (CANDY APPLE)
7A	W10835909 Whirlpool Pedestal Assembly
7	PEDESTAL (ALMOND CREME)
8	COVER, BOTTOM
9	WP9709707 Whirlpool Foot
10	W11175818 Whirlpool Dowel Pin
11	WP354987 Whirlpool C-Clip
12	BOWL-MIXER
13	W11161902 Whirlpool Mixer Beater
14	W11162103 Whirlpool Whip Wire
15	W11162097 Whirlpool Dough Hook
16	FILTER, RFI
