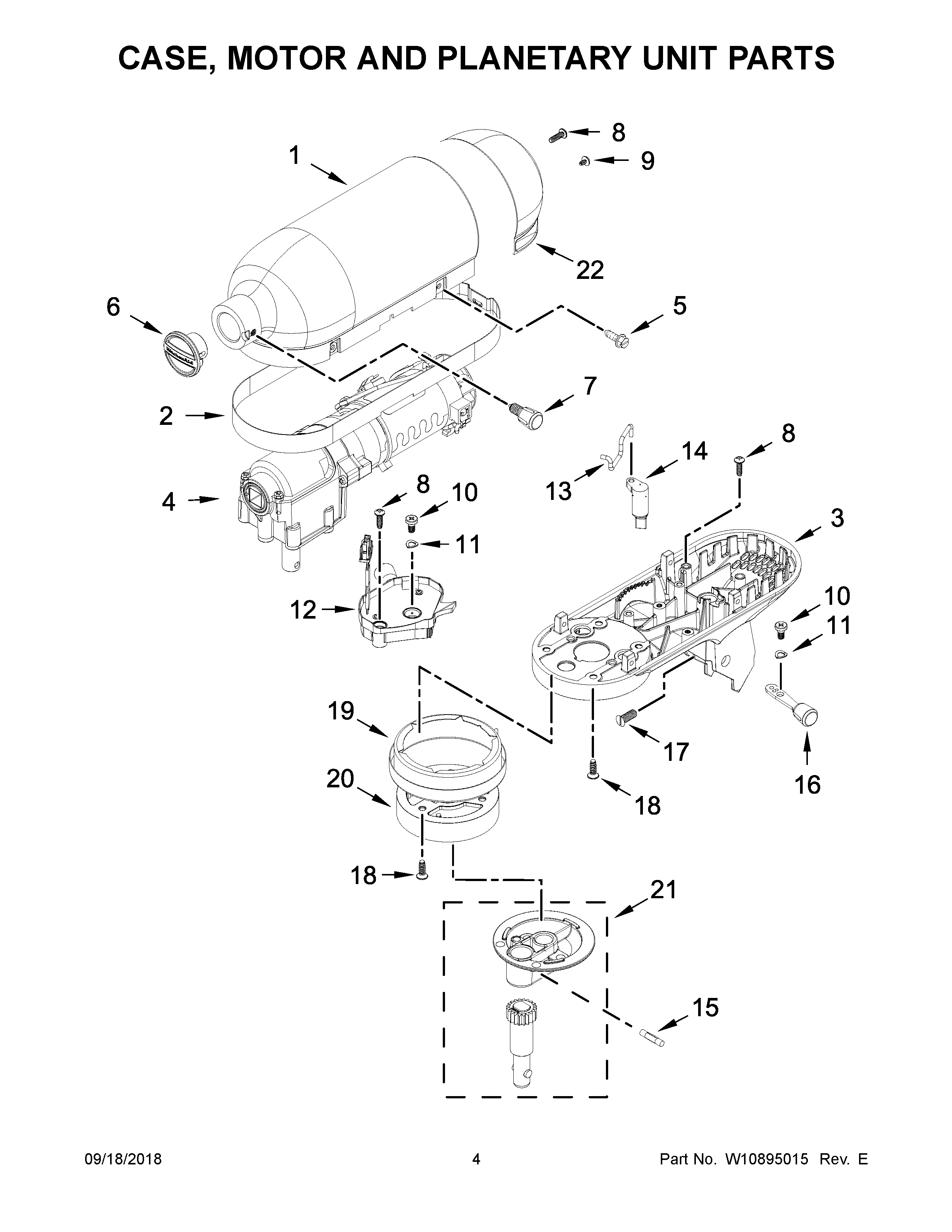

5KSM3311XRER0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

5KSM3311XRER0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Written by

in

5KSM3311XRER0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Products

PositionProduct
1LUPPER HOUSING (ORANGE SORBET)
1FW10765462 Whirlpool Housing
1GW10765465 Whirlpool Housing Assembly
1HUPPER HOUSING (BLACK MATTE)
1IUPPER HOUSING (MATTE GRAY)
1JUPPER HOUSING (MATTE WHITE)
1KUPPER HOUSING (ONYX BLACK)
1MUPPER HOUSING (TWILIGHT BLUE)
1NUPPER HOUSING (CAST IRON BLACK)
1OUPPER HOUSING (DRIED ROSE)
1PUPPER HOUSING (PISTACHIO)
1EUPPER HOUSING (HONEYDEW)
1DUPPER HOUSING (GUAVA GLAZE)
1CUPPER HOUSING (EMPIRE RED)
1BW10870579 Whirlpool Housing Assembly
1AUPPER HOUSING (CANDY APPLE)
1UPPER HOUSING (ALMOND CREME)
2TRIM BAND
3MLOWER HOUSING (TWILIGHT BLUE)
3ILOWER HOUSING (MATTE GRAY)
3HLOWER HOUSING (BLACK MATTE)
3GLOWER HOUSING (ICE)
3FLOWER HOUSING (HOT SAUCE)
3ELOWER HOUSING (HONEYDEW)
3DLOWER HOUSING (GUAVA GLAZE)
3CLOWER HOUSING (EMPIRE RED)
3BLOWER HOUSING (CONTOUR SILVER)
3ALOWER HOUSING (CANDY APPLE)
3LOWER HOUSING (ALMOND CREME)
3LLOWER HOUSING (ORANGE SORBET)
3PLOWER HOUSING (PISTACHIO)
3OLOWER HOUSING (DRIED ROSE)
3KLOWER HOUSING (ONYX BLACK)
3NLOWER HOUSING (CAST IRON BLACK)
3JLOWER HOUSING (MATTE WHITE)
4AMOTOR & TRANSMISSION ASSEMBLY (120
4W10896484 Whirlpool Motor
5WPW10068250 Whirlpool Dishwasher Screw
6W11048596 Whirlpool Hub Chrome Cap
7W11109470 Whirlpool Screw Assembly
8WP3400814 Whirlpool Screw
9W10853069 Whirlpool Screw
10WP110679 Whirlpool Screw
11WP116241 Whirlpool Washer
12W10887360 Whirlpool Speed Control
13WPL W10772250
14WPL W10840237
15WP9705443 Whirlpool Pin Groove
16W11131252 Whirlpool Speed Lever
17W11028216 Whirlpool Screw
18WPL W10830178
19W11129879 Whirlpool Drip Ring
20WPL W10749720
21JWPL W10835933
21KWPL W11210626
21LWPL W10765477
21MWPL W10765474
21NWPL W11186741
21OWPL W11446547
21PWPL W11446545
21IWPL W10835934
21HW10835935 Whirlpool Planetary
21GWPL W10765476
21WPL W10816045
21AWPL W10883851
21BWPL W10870573
21CWPL W10870572
21DWPL W10835938
21EWPL W10835936
21FW10750140 Whirlpool Planetary Mixer
22IWPL W10835952
22JWPL W10835951
22KWPL W11210625
22LW10765458 Whirlpool Cover Assembly
22MW10765456 Whirlpool Cover Assembly
22NWPL W11186742
22OWPL W11446694
22HW10835953 Whirlpool Cover Assembly
22GWPL W10765460
22FW10765455 Whirlpool Cover Assembly
22EWPL W10835954
22DWPL W10835956
22CWPL W10870582
22BWPL W10870583
22AWPL W10883855
22WPL W10816048
22PWPL W11446692
