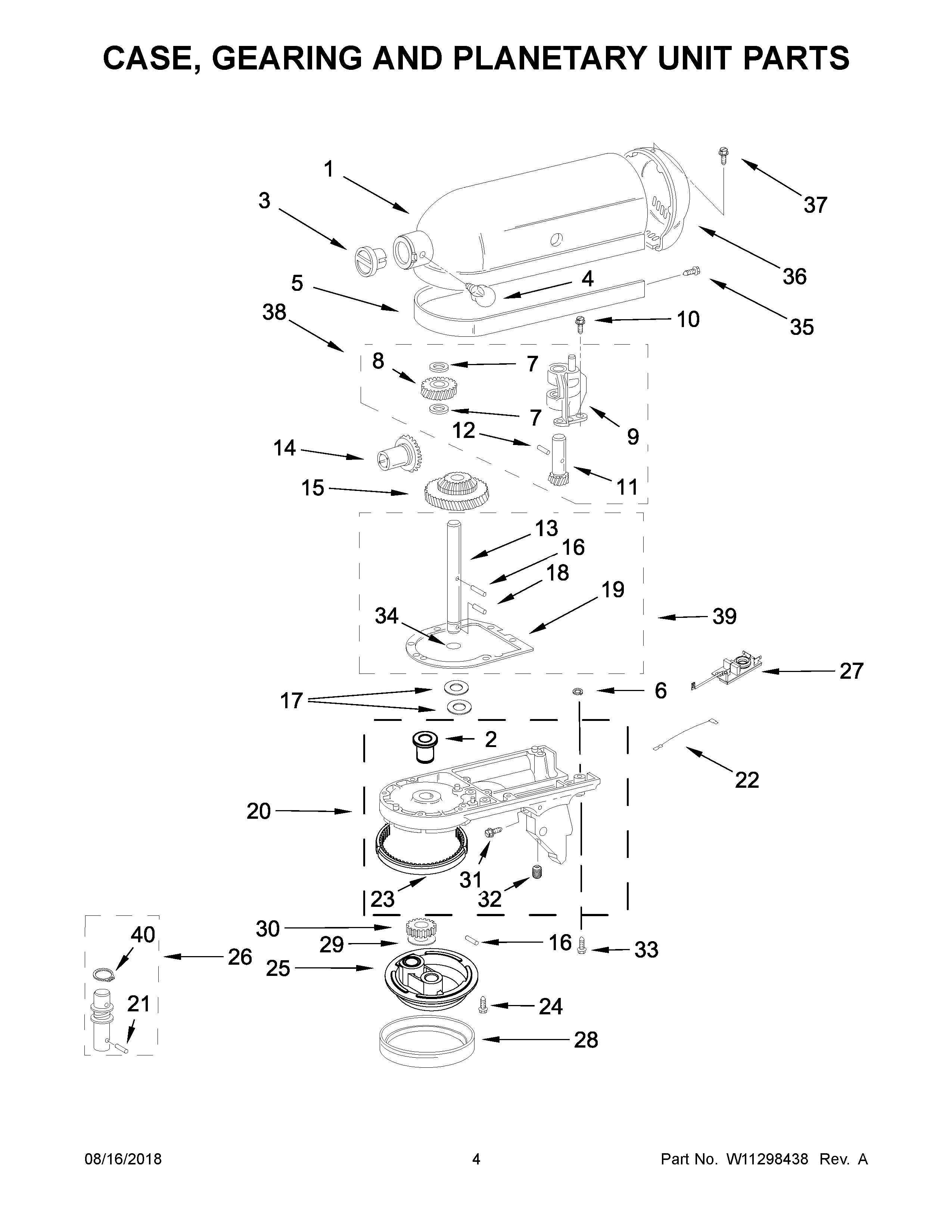

5KSM45BSL4 03 – CASE, GEARING AND PLANETARY UNIT PARTS

5KSM45BSL4 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Written by

in

5KSM45BSL4 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
2WP16897 Whirlpool Bearing
3W11048596 Whirlpool Hub Chrome Cap
4WP9709194 Whirlpool Black Thumb Screw
6WP8533914 Whirlpool Lock
7WPW10323373 Whirlpool Washer
8WPW10112253 Whirlpool Gear Assembly
9W11082541 Whirlpool Bearing
10W11097298 Whirlpool Dishwasher Screw
11Shaft & Pinion
12WP9705444 Whirlpool Pin Groove
13WP240026 Whirlpool Control Shaft
15W11192794 Whirlpool HUB Gear
16Pin (Vertical Center Shaft)
17WPW10323378 Whirlpool Washer
18WP9705443 Whirlpool Pin Groove
19WP4162324 Whirlpool Case Gasket
21W11664709 Whirlpool Groove Pin
22WPL 9702311
23W11340106 Whirlpool Gear Assembly
24W11170598 Whirlpool Screw
26WP243368 Whirlpool Agitator Shaft
274176340 Whirlpool Refrigerator Mixer Filter
28WP240285 Whirlpool Drip Ring
29WP9706090 Whirlpool Washer
30W11133645 Whirlpool Pinion Gear
31W11028216 Whirlpool Screw
32WP3400203 Whirlpool Screw
33W11173547 Whirlpool Screw
34O RING
35W10853069 Whirlpool Screw
36CABINET (NOT A SERVICEABLE PART)
37WP241877 Whirlpool Screw
38GEAR, WORM AND BRACKET
394160474 Whirlpool Control Shaft
40WP9703438 Whirlpool Snap Retaining Ring
