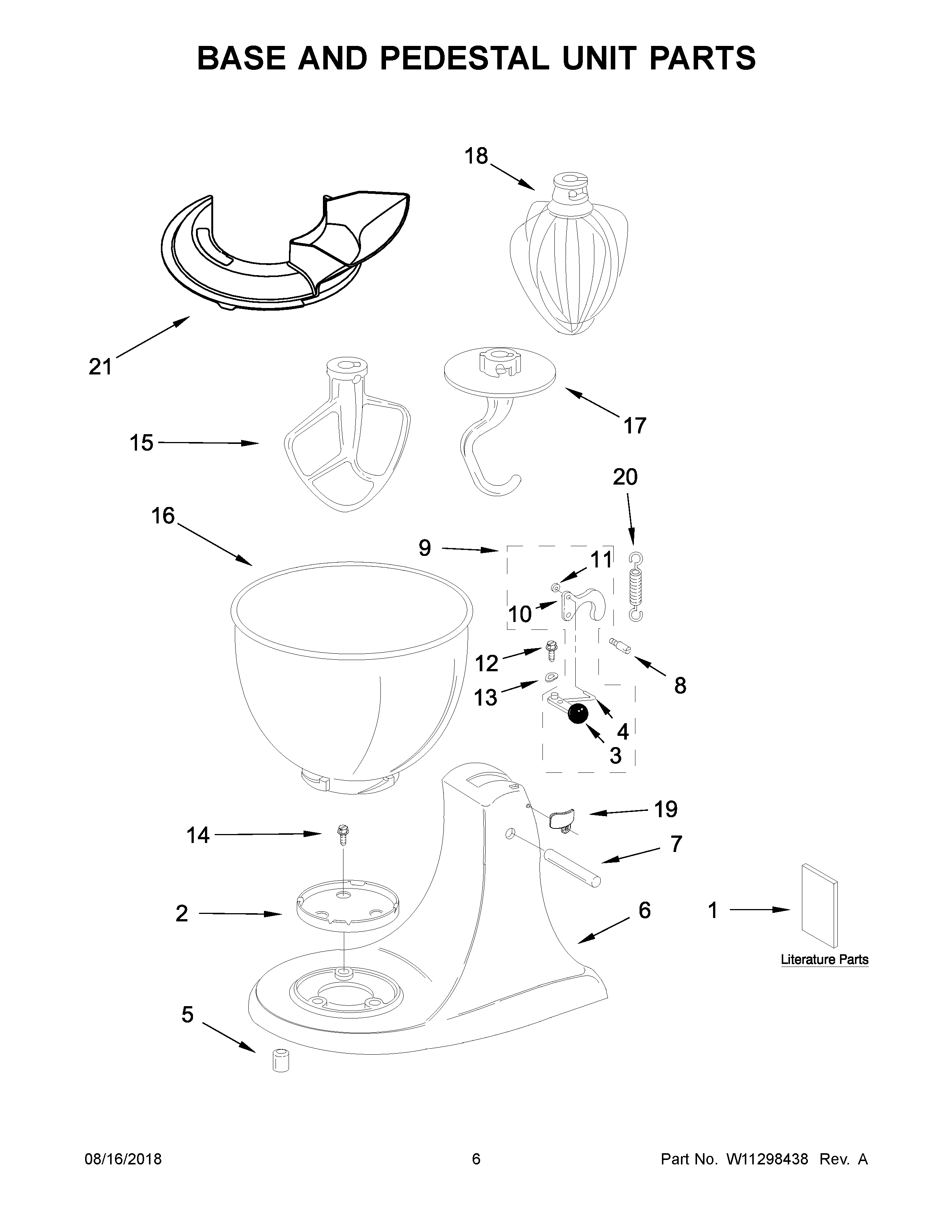

5KSM45ESL4 04 – BASE AND PEDESTAL UNIT PARTS
Written by
in
5KSM45ESL4 04 – BASE AND PEDESTAL UNIT PARTS
Products
Position
Product
1
USE & CARE GUIDE
2
WPW10191926 Whirlpool Cap Screw
3
WP9709267 Whirlpool Latch Lever
4
W11232016 Whirlpool Latch Link
5
WP9709707 Whirlpool Foot
6
CABINET (NOT A SERVICEABLE PART)
7
WP16910 Whirlpool Dowel Pin
8
W10802060 Whirlpool Screw
9
WP3184200 Whirlpool Latch Lever
10
W11246352 Whirlpool Latch Mechanism
11
W11218705 Whirlpool Washer Assembly
12
WP110679 Whirlpool Screw
13
WP116241 Whirlpool Washer
14
SCREW
15
WPW10672617 Whirlpool Stand Mixer Flat Beater
16
W10802058 Whirlpool Mixer Bowl
17
WPW10674618 Whirlpool Dough Hook
18
WP9704329 Whirlpool Wire Whip
19
WP3184264 Whirlpool Headlock Assembly
20
W11188450 Whirlpool Spring
21
W11312468 Whirlpool Pour Shelf
←
