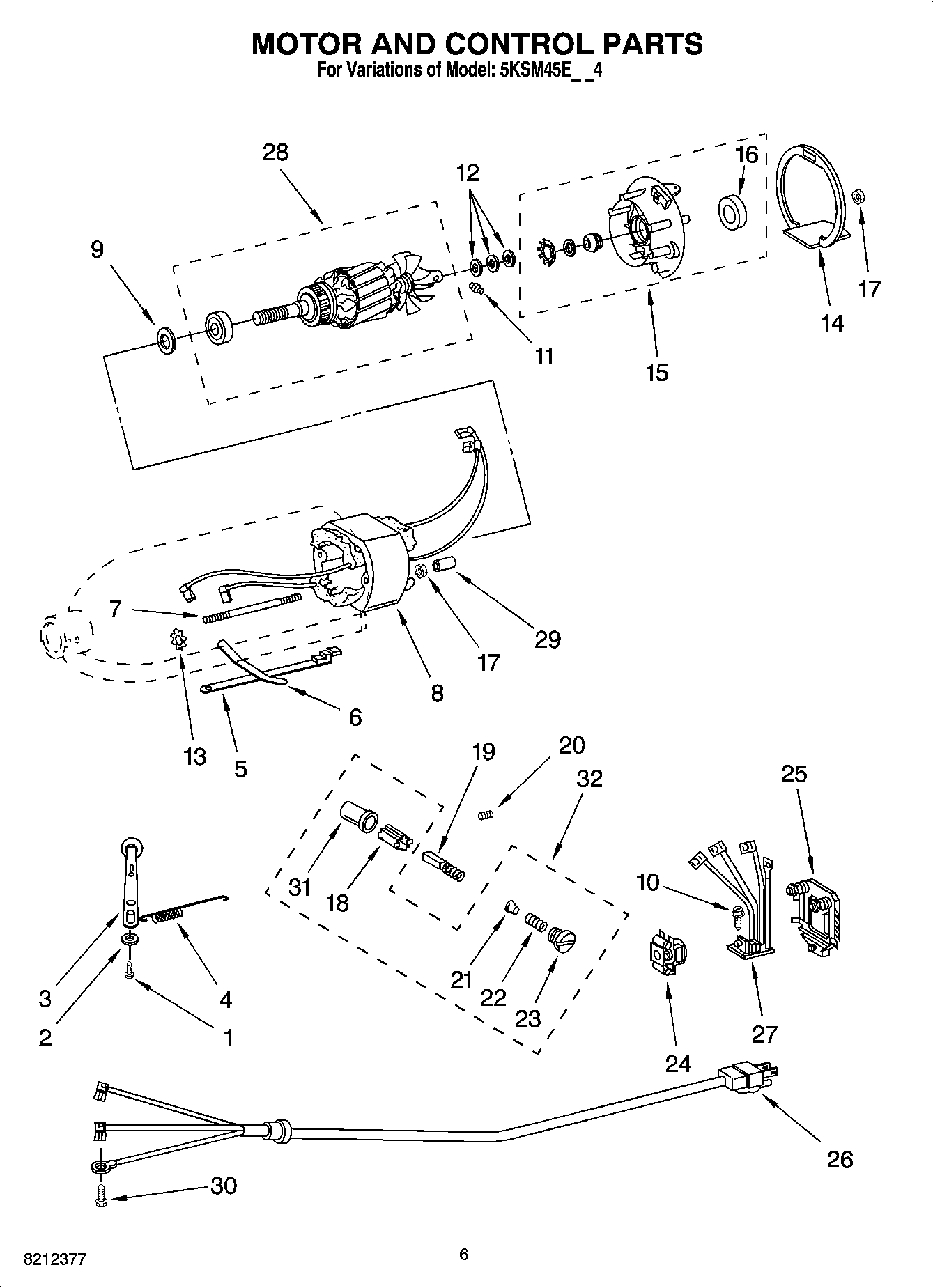

5KSM45EWH4 04 – MOTOR AND CONTROL PARTS, OPTIONAL PARTS

5KSM45EWH4 04 – MOTOR AND CONTROL PARTS, OPTIONAL PARTS

Written by

in

5KSM45EWH4 04 – MOTOR AND CONTROL PARTS, OPTIONAL PARTS

Products

PositionProduct
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
Food Tray (FT)
CAN OPENER (CO)
JUICER (JE)
FOOD GRINDER (FG-A)
W10802058 Whirlpool Mixer Bowl
Bowl,
W11312468 Whirlpool Pour Shelf
Bowl Cover, Plastic Non-Sealing
WPL 3180617
Grain Mill, KGMA
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
SAUSAGE STUFFER KIT (SSA)
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
PASTA MAKER PLATES (SNPA)
67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
MAKER, ICE CREAM (KICA0WH)
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5Speed Link & Cam
6WP240205 Whirlpool Spring
7W10851015 Whirlpool Stat Screw
8WPW10417246 Whirlpool Field Assembly
9WP9704324 Whirlpool Washer
10W11084238 Whirlpool Screw Assembly
11WP16998 Whirlpool Drive Stud
12W11233557 Whirlpool Washer
13W11170663 Whirlpool Washer
14WP240775-1 Whirlpool Endcap Seal
15WP3180526 Whirlpool Bearing Bracket
16WASHER
178533905 Whirlpool Nut
18W11656718 Whirlpool Insert
19WPW10380496 Whirlpool Stand Mixer Motor Brush
20W11176201 Whirlpool Screw
21WP116286 Whirlpool Spring Cap
22WP116287 Whirlpool Spring Cap
23WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
24WPW10330804 Whirlpool Speed Governor
25Control Plate Assembly
26W10706734 Whirlpool Power Cord
27W11174552 Whirlpool Stand Mixer Phase Board
28W10900799 Whirlpool Armature
29W11210996 Whirlpool Sleeve
30WP4159193 Whirlpool Screw
31WP3179908 Whirlpool Brush Holder
324162546 Whirlpool Brush Holder
