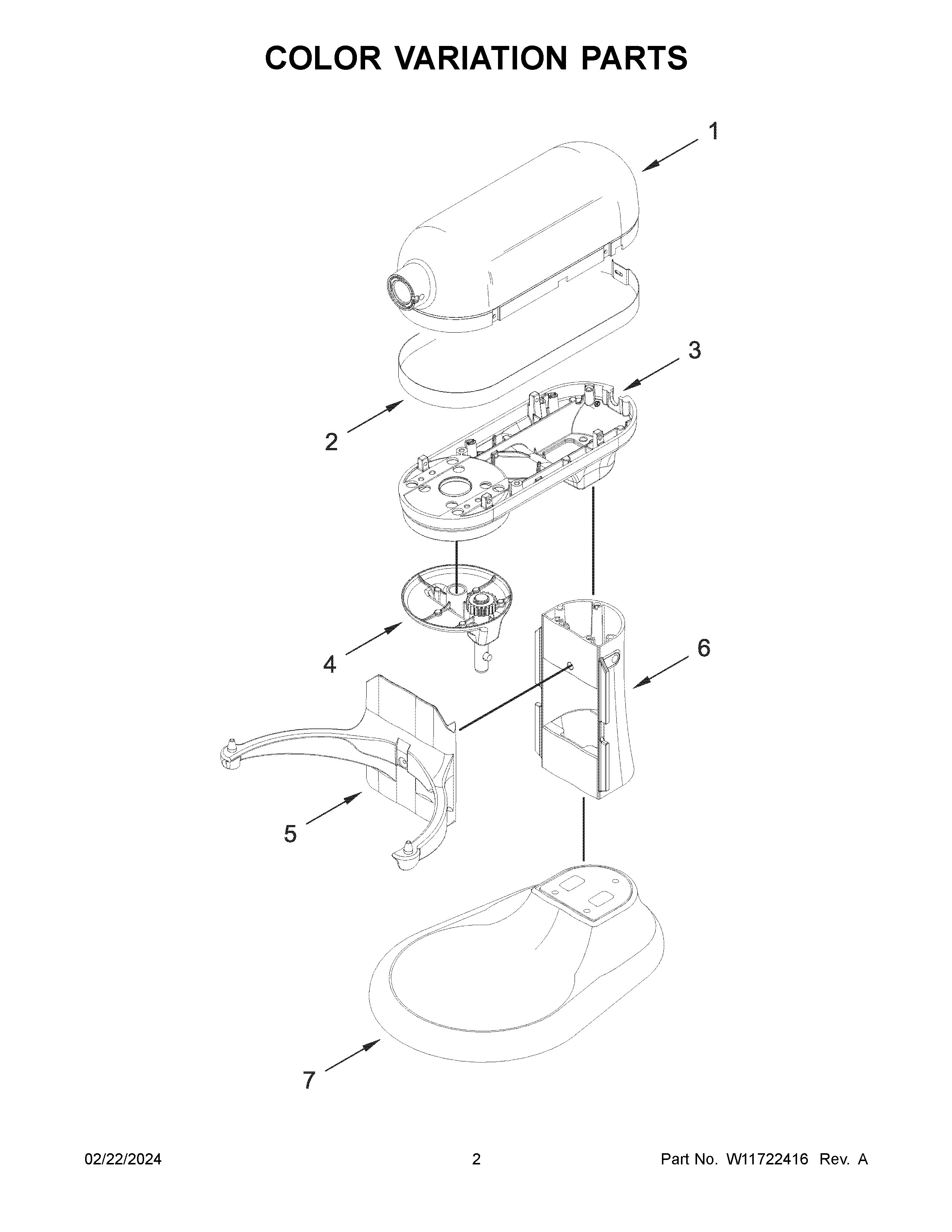

5KSM55SXXECU0 02 – COLOR VARIATION PARTS

Products

Position	Product
1	MOTOR HOUSING (BLACK MATTE)
1A	W10327951 Whirlpool Housing
1B	9705300 Whirlpool Housing Assembly
1C	9705296 Whirlpool Housing
1D	9703311 Whirlpool Housing Assembly
2	TRIM BAND (LIGHT BRUSHED ALUMINUM)
3D	LOWER GEARCASE (WHITE)
3C	LOWER GEARCASE (ONYX BLACK)
3B	LOWER GEARCASE (EMPIRE RED)
3A	W11520143 Whirlpool Gearcase
3	LOWER GEARCASE (BLACK MATTE)
4A	PLANETARY (CONTOUR SILVER)
4B	PLANETARY
4D	PLANETARY (WHITE)
4	PLANETARY (BLACK MATTE)
4C	W11513268 Whirlpool Planetary Assembly
5D	9703674 Whirlpool Support
5A	WPL W10327966
5	WPL W11328664
5C	9705356 Whirlpool Support
5B	9705360 Whirlpool Support Assembly
6D	9703673 Whirlpool Column
6C	9705320 Whirlpool Column
6B	9705324 Whirlpool Column Assembly
6A	W10328003 Whirlpool Column Assembly
6	WPL W11123140
7A	WPL W10328017
7C	9705344 Whirlpool Base
7D	9703690 Whirlpool Base
7B	9705348 Whirlpool Base
7	BASE & FOOT ASSEMBLY (BLACK MATTE)
