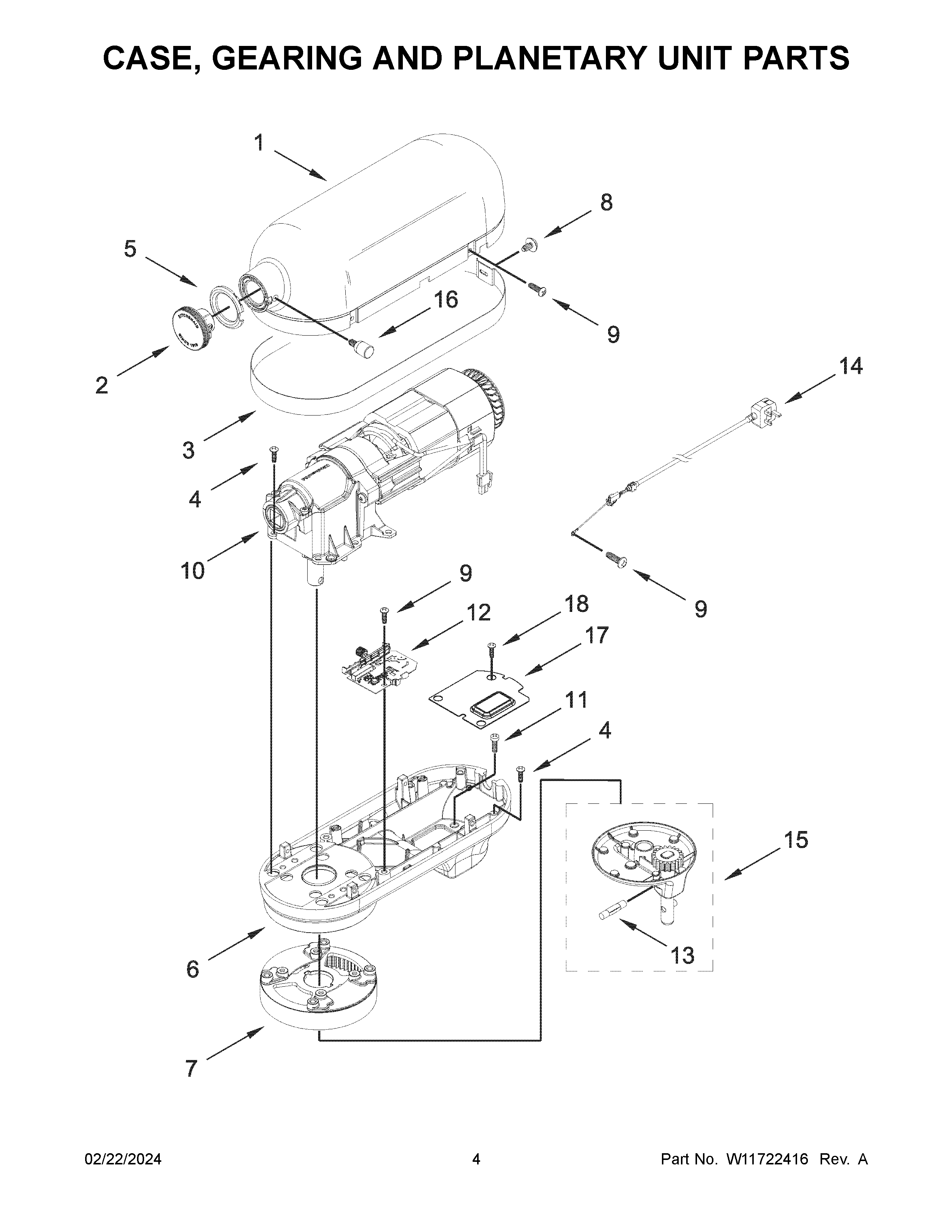

5KSM55SXXECU0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
1	GEARCASE MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)
2	CAP, ATTACHMENT HUB
3	BAND, TRIM (REFER TO COLOR VARIATION PARTS PAGE)
4	W10914506 Whirlpool Screw
5	WP9703315 Whirlpool Hub Cap
6	LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE)
7	GEAR, RING AND PLATE ASSEMBLY
8	W10853069 Whirlpool Screw
9	WP3400814 Whirlpool Screw
10	MOTOR, 230 VOLT ASSEMBLY
11	W10913677 Whirlpool Screw
12	CONTROL ASSEMBLY (230 VOLT)
13	WPW10234531 Whirlpool Dishwasher Groove Pin
14	CORD, POWER (BLACK (EMEA))
15	PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
16	THUMB SCREW (BLACK)
17	PLATE, LOWER HOUSING
18	SCREW
