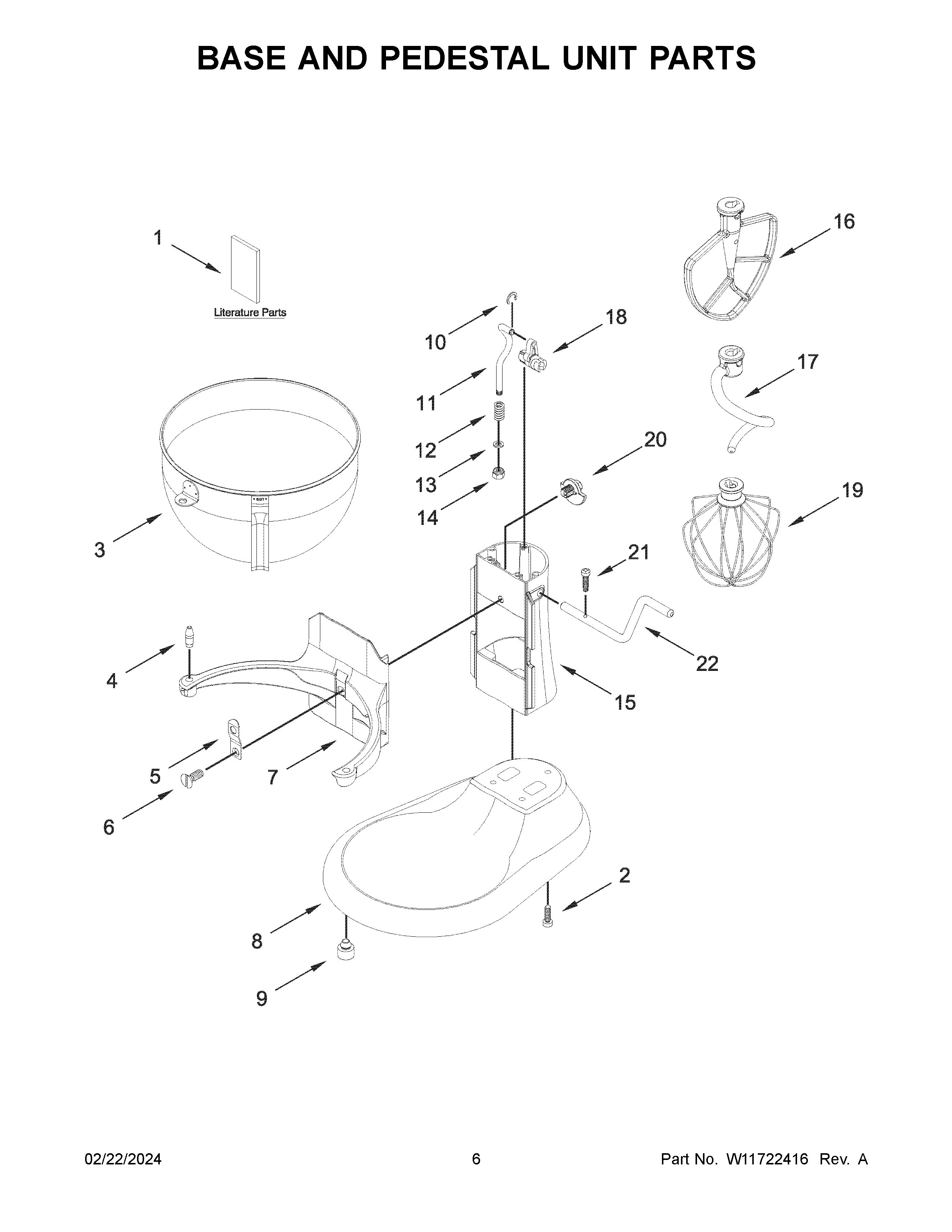

5KSM55SXXECU0 04 – BASE AND PEDESTAL UNIT PARTSadmin2025-04-26T10:43:16+00:005KSM55SXXECU0 04 – BASE AND PEDESTAL UNIT PARTS ProductsPositionProduct1USE AND CARE GUIDE2W10913677 Whirlpool Screw3WPW10717235 Whirlpool Mixer Bowl4WP240185 Whirlpool Bowl Retaining Pin5WPW10504114 Whirlpool Clip6W10861883 Whirlpool Screw7BOWL SUPPORT (REFER TO COLOR VARIATION PARTS PAGE)8BASE AND FOOT ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)9WP9708649 Whirlpool Foot10WP9703307 Whirlpool Ring-C Assembly11W11376364 Whirlpool Lift Rod124159622 Whirlpool PP Spring13Washer148533907 Whirlpool Dishwasher Nut15COLUMN ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)16BEATER, FLAT (COATED)17HOOK, DOUGH18WP9706885 Whirlpool Lift Arm Assembly19WP9703491 Whirlpool Wire Whip20Cam, Adjusting21WP3400814 Whirlpool Screw22W11376371 Whirlpool Handle Assembly
