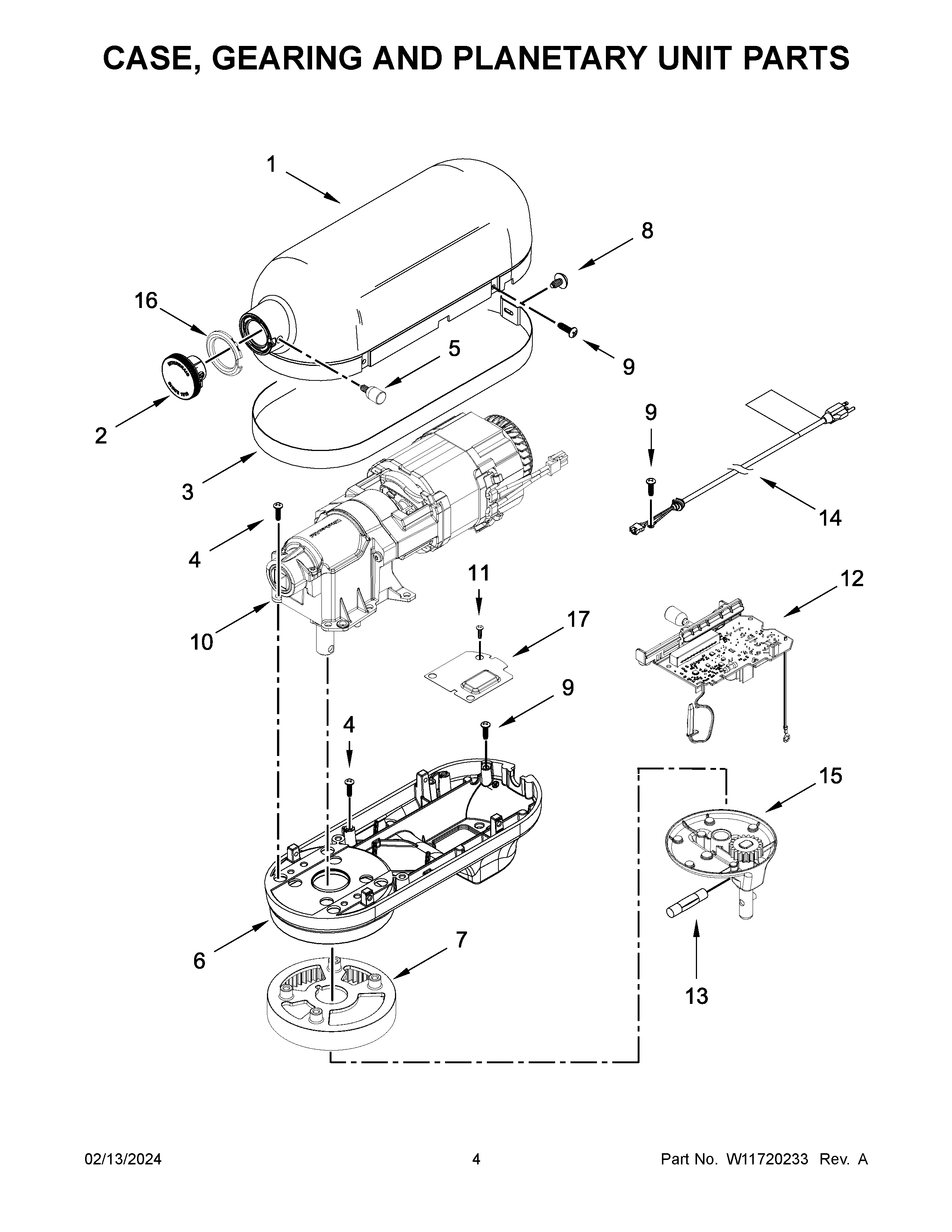

5KSM55SXXPER0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
1MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)
2CAP, ATTACHMENT HUB
3TRIM BAND (REFER TO COLOR VARIATION PARTS PAGE)
4W10914506 Whirlpool Screw
5THUMB SCREW (BLACK)
6LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE)
7GEAR, RING AND PLATE ASSEMBLY
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10MOTOR, 230 VOLT ASSEMBLY
11SCREW
12CONTROL ASSEMBLY (230 VOLT)
13WPW10234531 Whirlpool Dishwasher Groove Pin
14CORD, POWER (BLACK (PHILIPPINES))
15PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
16WP9703315 Whirlpool Hub Cap
17PLATE, LOWER HOUSING
