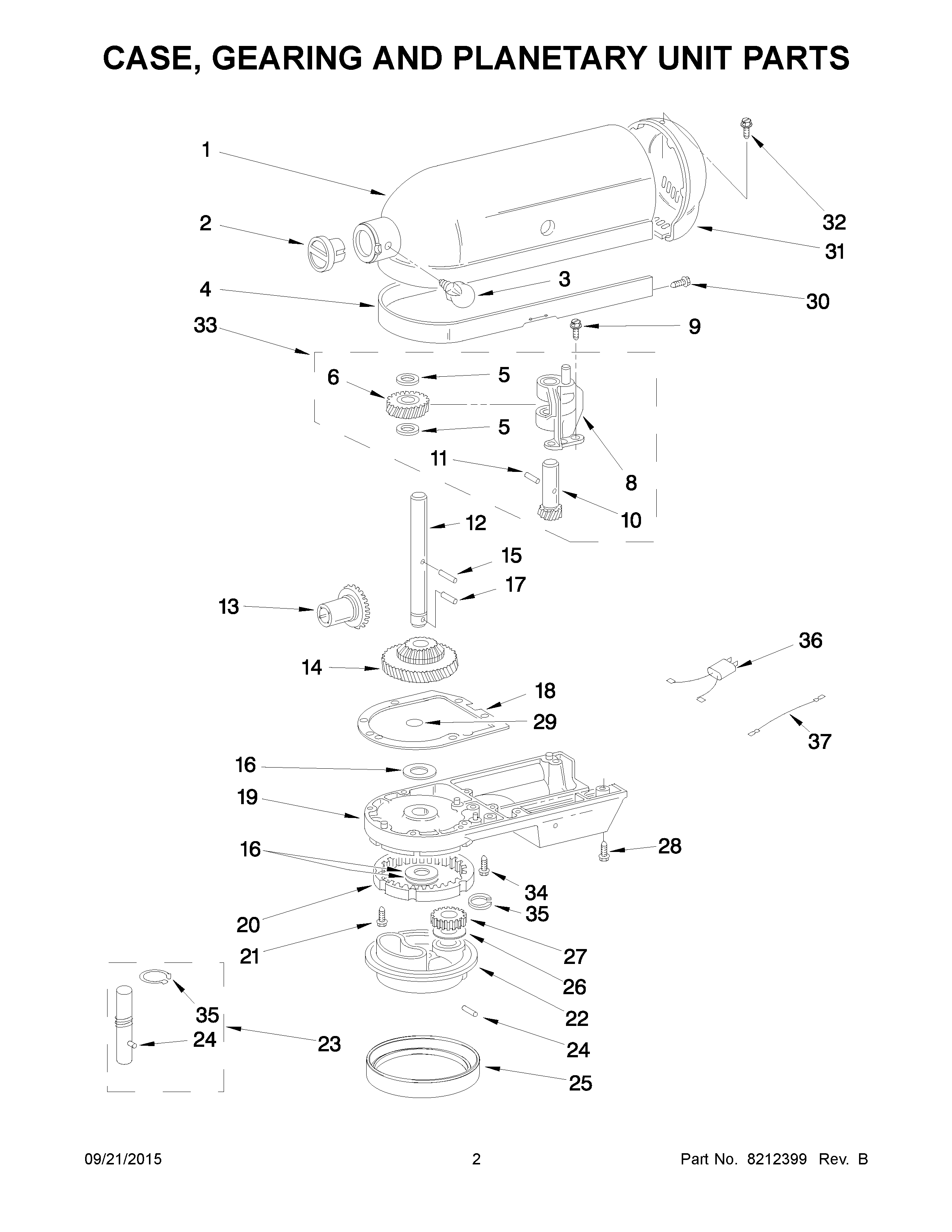

5KSM5ABU0 02 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
2	Cap, Attachment Hub
3	WP9709194 Whirlpool Black Thumb Screw
5	WPW10323373 Whirlpool Washer
6	WPW10112253 Whirlpool Gear Assembly
8	W11082541 Whirlpool Bearing
9	W11097298 Whirlpool Dishwasher Screw
10	Shaft & Pinion
11	WP9705444 Whirlpool Pin Groove
12	WP240026 Whirlpool Control Shaft
13	W11192794 Whirlpool HUB Gear
15	Pin (Vertical Center Shaft)
16	WPW10323378 Whirlpool Washer
17	WP9705443 Whirlpool Pin Groove
18	WP4162324 Whirlpool Case Gasket
20	W11340106 Whirlpool Gear Assembly
21	Screw, Special (5)
23	WP243368 Whirlpool Agitator Shaft
24	W11664709 Whirlpool Groove Pin
25	WP240285 Whirlpool Drip Ring
26	WP9706090 Whirlpool Washer
27	W11133645 Whirlpool Pinion Gear
28	WP3400025 Whirlpool Screw
29	O RING
30	WP313808 Whirlpool Screw
31	CABINET (NOT A SERVICEABLE PART)
32	WP241877 Whirlpool Screw
33	GEAR, WORM AND BRACKET
34	WP9708653 Whirlpool Screw
35	WP9703438 Whirlpool Snap Retaining Ring
36	4176340 Whirlpool Refrigerator Mixer Filter
37	WPL 9702311
