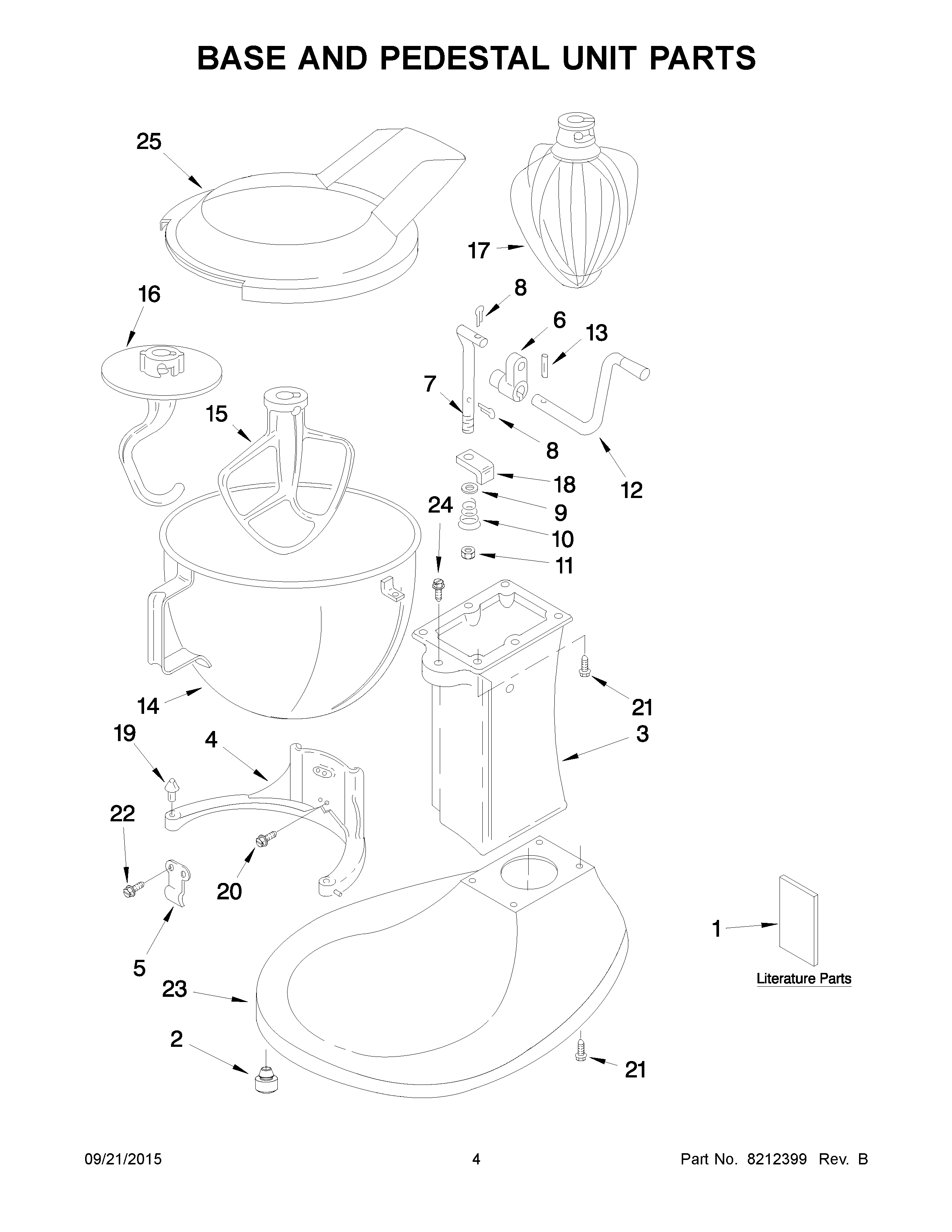

5KSM5ABU0 03 – BASE AND PEDESTAL UNIT PARTSadmin2025-04-26T10:44:08+00:005KSM5ABU0 03 – BASE AND PEDESTAL UNIT PARTS ProductsPositionProduct1GUIDE, USE & CARE (EUROPE)2WP9708649 Whirlpool Foot5WP3182857 Whirlpool Spring6WP241764 Whirlpool Mixer Lift Arm Bowl7W10598834 Whirlpool Lift Rod8WP9704608 Whirlpool Cotter Pin9W11708396 Whirlpool Washer104159622 Whirlpool PP Spring118533907 Whirlpool Dishwasher Nut12W10598843 Whirlpool Handle Assembly13WP9703442 Whirlpool Roll Pin14WPW10714130 Whirlpool Mixer Bowl15W10807813 Whirlpool Mixer Beater16WPW10674621 Whirlpool Dough Hook Assembly17WPW10731415 Whirlpool Stand Mixer Wire Whip18240169 Whirlpool Bracket19WP240185 Whirlpool Bowl Retaining Pin20W10861883 Whirlpool Screw21WP4162403 Whirlpool Screw22WP4159193 Whirlpool Screw23CABINET (NOT A SERVICEABLE PART)243182904 Whirlpool Screw25W11312468 Whirlpool Pour Shelf
