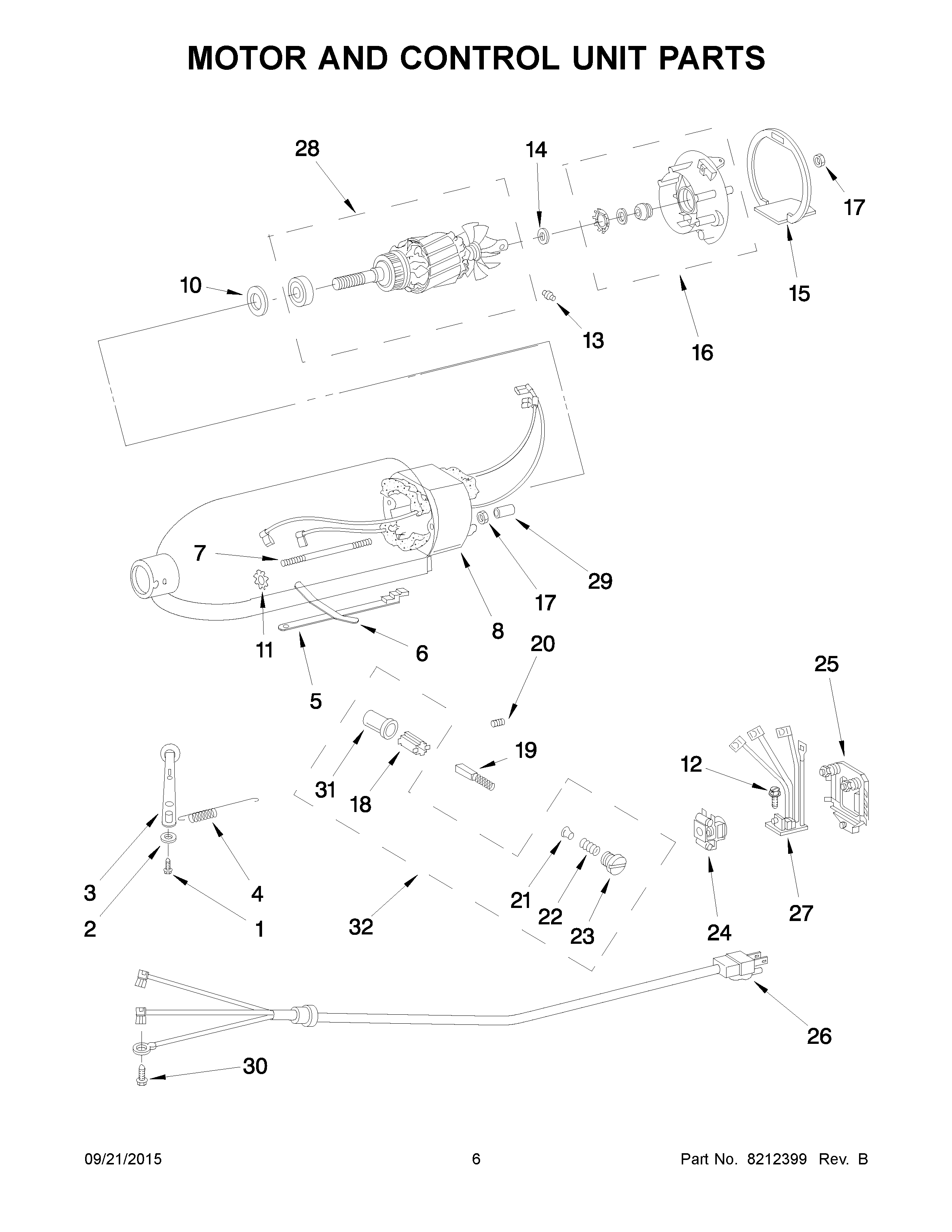

5KSM5ABU0 04 – MOTOR AND CONTROL UNIT PARTS

Products

Position	Product
1	WP110679 Whirlpool Screw
2	WP116241 Whirlpool Washer
3	WP9709276 Whirlpool Speed Control Lever
4	WP3183680 Whirlpool Spring
5	Speed Link & Cam
6	WP240205 Whirlpool Spring
7	W10851015 Whirlpool Stat Screw
8	WPW10417246 Whirlpool Field Assembly
10	WP9704324 Whirlpool Washer
11	W11170663 Whirlpool Washer
12	W11084238 Whirlpool Screw Assembly
13	WP16998 Whirlpool Drive Stud
14	W11233557 Whirlpool Washer
15	WP240775-1 Whirlpool Endcap Seal
16	WP3180526 Whirlpool Bearing Bracket
17	8533905 Whirlpool Nut
18	W11656718 Whirlpool Insert
19	WPW10380496 Whirlpool Stand Mixer Motor Brush
20	W11176201 Whirlpool Screw
21	WP116286 Whirlpool Spring Cap
22	WP116287 Whirlpool Spring Cap
23	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
24	WPW10330804 Whirlpool Speed Governor
25	Control Plate Assembly
26	W11221247 Whirlpool Power Cord
27	W11174552 Whirlpool Stand Mixer Phase Board
28	W10900799 Whirlpool Armature
29	W11210996 Whirlpool Sleeve
30	Screw
31	WP3179908 Whirlpool Brush Holder
32	4162546 Whirlpool Brush Holder
