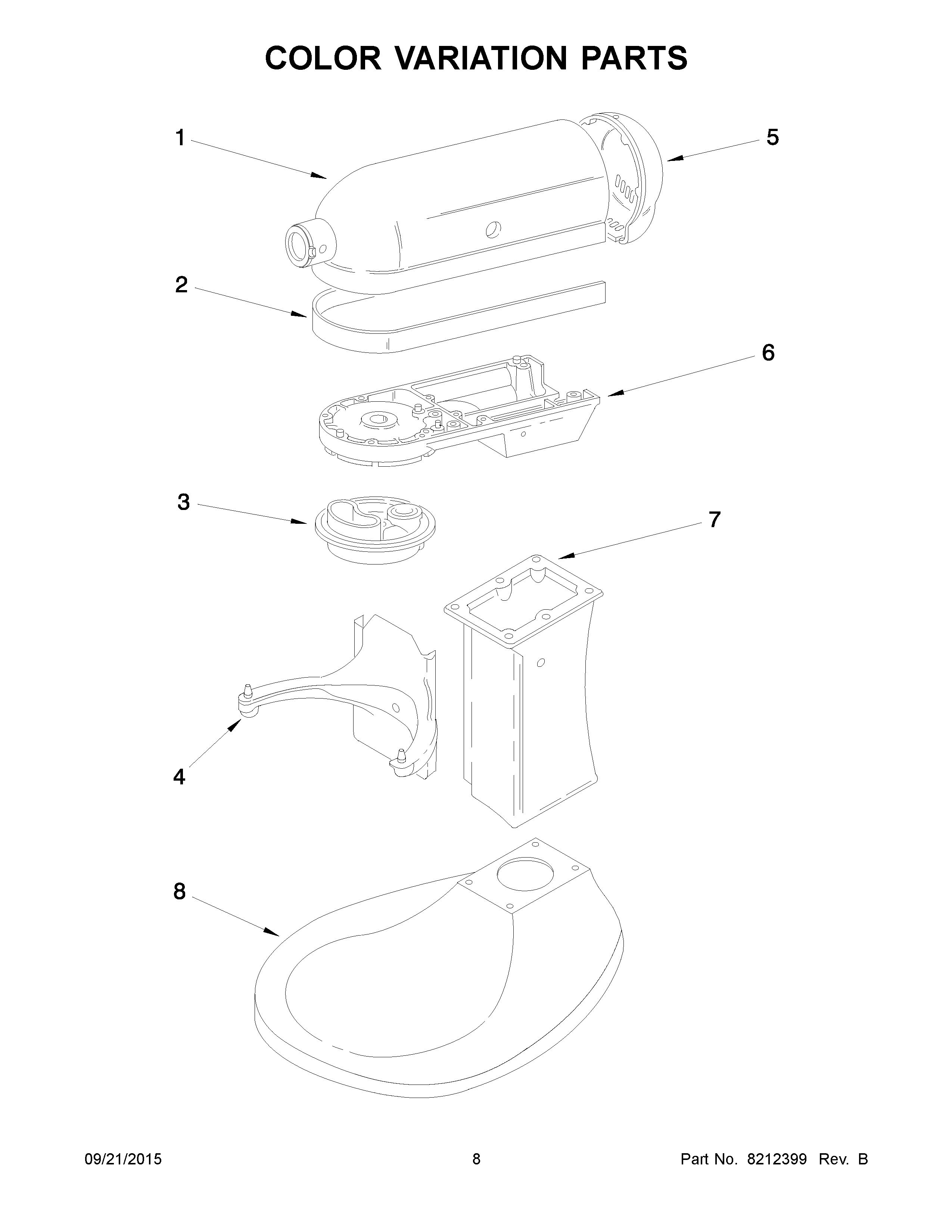

5KSM5AMY0 05 – COLOR VARIATION PARTS

Products

Position	Product
1	MOTOR HOUSING (COBALT BLUE)
1A	MOTOR HOUSING (EMPIRE RED)
1B	MOTOR HOUSING (MAJESTIC YELLOW)
2	TRIM BAND (BLACK)
3	PLANETARY (COBALT BLUE)
3B	PLANETARY (MAJESTIC YELLOW)
3A	PLANETARY (EMPIRE RED)
4B	BOWL SUPPORT & PINS (MAJESTIC YELLOW)
4A	BOWL SUPPORT & PINS (EMPIRE RED)
4	BOWL SUPPORT & PINS (COBALT BLUE)
5	END COVER (COBALT BLUE)
5A	END COVER (EMPIRE RED)
5B	END COVER (MAJESTIC YELLOW)
6A	LOWER GEARCASE (EMPIRE RED)
6	LOWER GEARCASE (COBALT BLUE)
6B	LOWER GEARCASE (MAJESTIC YELLOW)
7	COLUMN (COBALT BLUE)
7A	COLUMN ASSY-EMPIRE RED
7B	COLUMN ASSY-MAJESTIC YELLOW
8B	BASE & FOOT SUPPORT-MAJESTIC YELLOW
8A	BASE & FOOT SUPPORT-EMPIRE RED
8	BASE & FOOT ASSEMBLY (COBALT BLUE)
