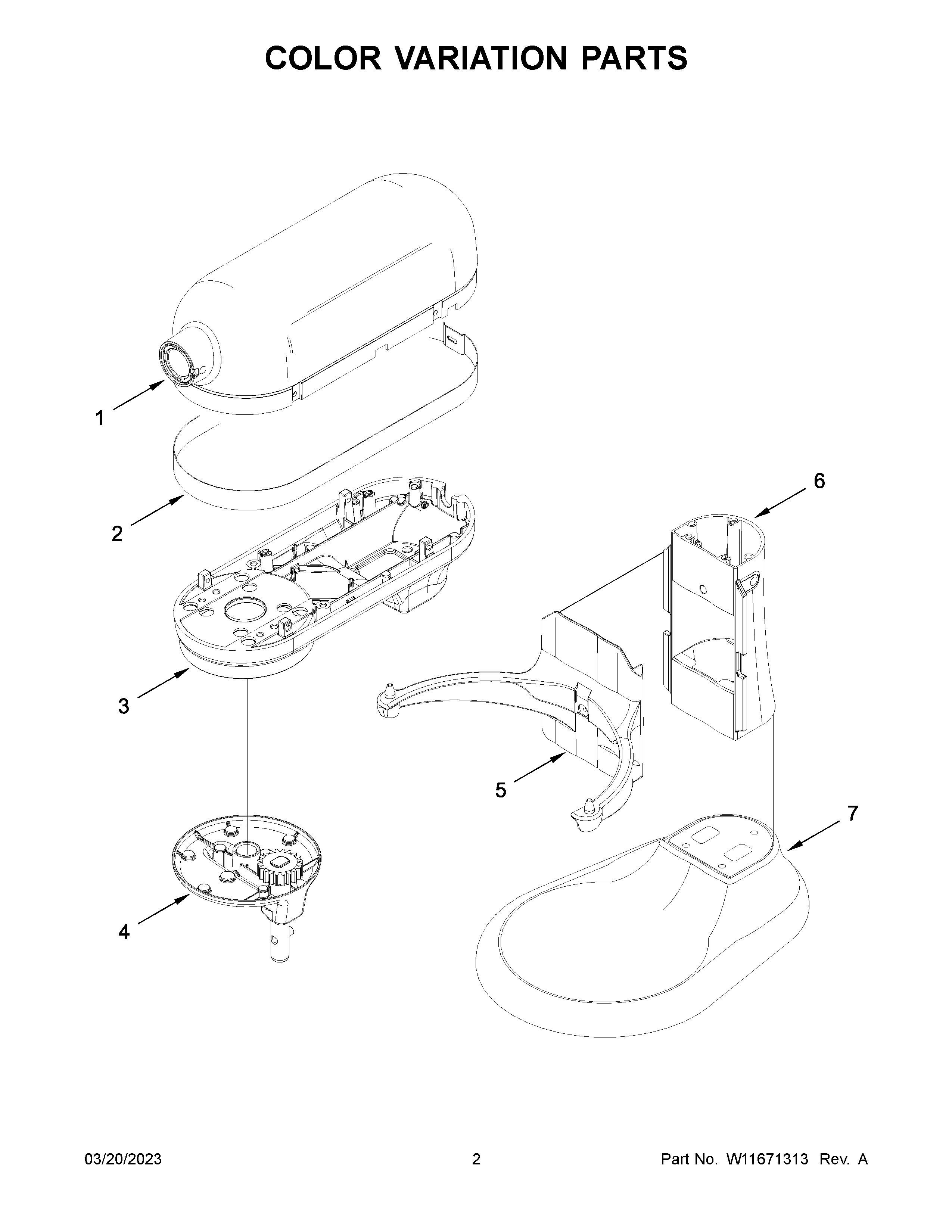

5KSM60SPXACU0 02 – COLOR VARIATION PARTS

Products

Position	Product
1C	9705300 Whirlpool Housing Assembly
1B	MOTOR HOUSING (MATTE DRIED ROSE)
1D	MOTOR HOUSING (MATTE MILKSHAKE)
1	MOTOR HOUSING (BLACK MATTE)
1A	W10327951 Whirlpool Housing
1E	MOTOR HOUSING (PISTACHIO)
2	TRIM BAND (BRIGHT ALUMINUM)
3A	W11520143 Whirlpool Gearcase
3C	LOWER GEARCASE (EMPIRE RED)
3B	LOWER GEARCASE (MATTE DRIED ROSE)
3E	LOWER GEARCASE (PISTACHIO)
3D	LOWER GEARCASE (MILKSHAKE)
3	LOWER GEARCASE (BLACK MATTE)
4	PLANETARY (BLACK MATTE)
4E	PLANETARY (PISTACHIO)
4B	PLANETARY (MATTE DRIED ROSE)
4D	PLANETARY (MILKSHAKE)
4A	PLANETARY (CONTOUR SILVER)
4C	PLANETARY
5C	9705360 Whirlpool Support Assembly
5E	BOWL SUPPORT AND PINS (PISTACHIO)
5	WPL W11328664
5D	WPL W11113728
5A	WPL W10327966
5B	BOWL SUPPORT AND PINS (MATTE DRIED ROSE)
6	WPL W11123140
6B	COLUMN AND PINS (MATTE DRIED ROSE)
6D	WPL W11113727
6E	COLUMN AND PINS (PISTACHIO)
6C	9705324 Whirlpool Column Assembly
6A	W10328003 Whirlpool Column Assembly
7E	BASE AND FOOT ASSEMBLY (PISTACHIO)
7	BASE & FOOT ASSEMBLY (BLACK MATTE)
7C	9705348 Whirlpool Base
7A	WPL W10328017
7D	W11113722 Whirlpool Base
7B	BASE AND FOOT AS
