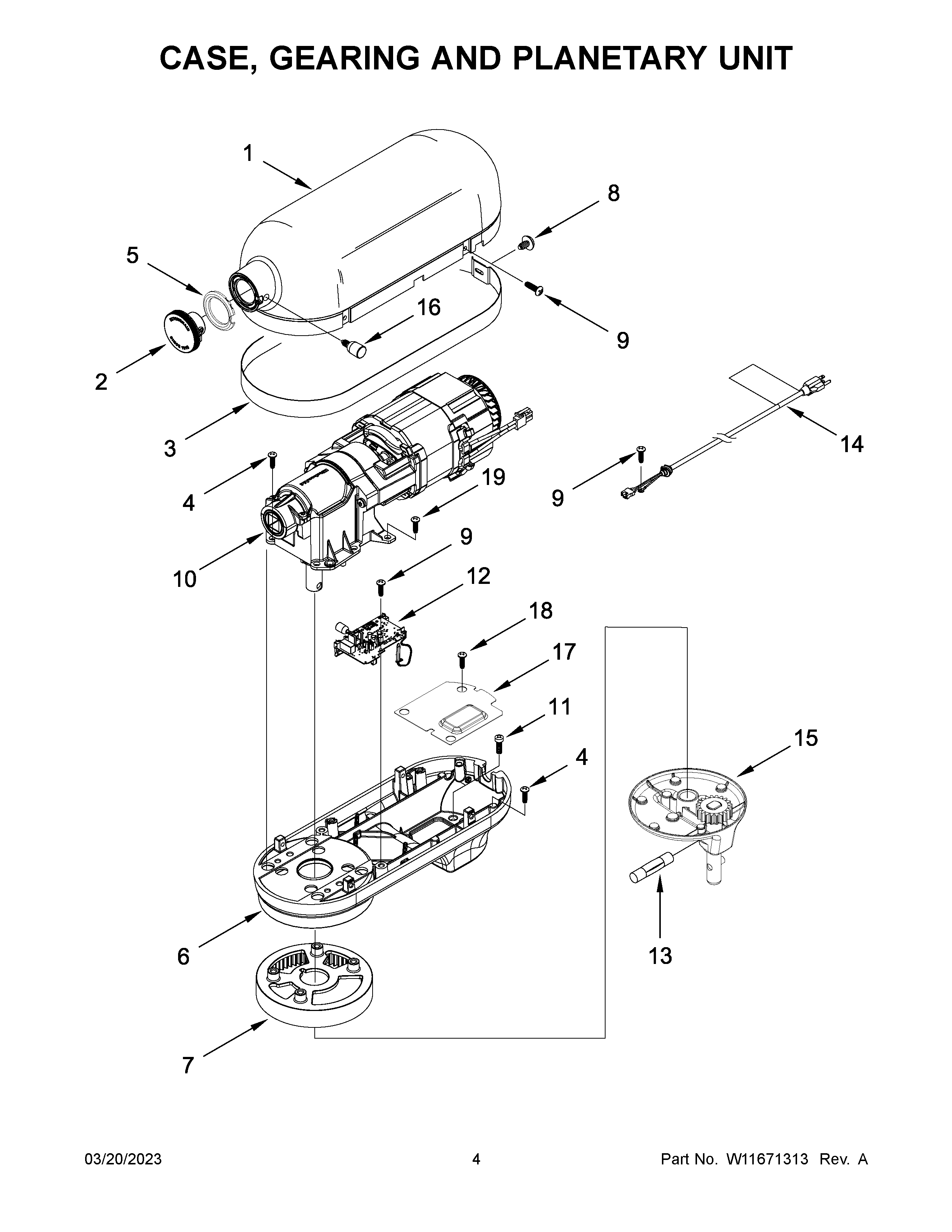

5KSM60SPXAER0 03 – CASE, GEARING AND PLANETARY UNIT

5KSM60SPXAER0 03 – CASE, GEARING AND PLANETARY UNIT

Written by

in

5KSM60SPXAER0 03 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
2CAP, ATTACHMENT HUB
4W10914506 Whirlpool Screw
5WP9703315 Whirlpool Hub Cap
7GEAR, RING AND PLATE ASSEMBLY
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10MOTOR, 230 VOLT ASSEMBLY
11W10913677 Whirlpool Screw
12CONTROL ASSEMBLY, 220/230 VOLT
13WPW10234531 Whirlpool Dishwasher Groove Pin
14CORD, POWER (BLACK (AUSTRALIA – NEW ZEALAND))
15CABINET (NOT A SERVICEABLE PART)
16THUMB SCREW (SATIN CHROME)
17PLATE, LOWER HOUSING
18SCREW
19SCREW
