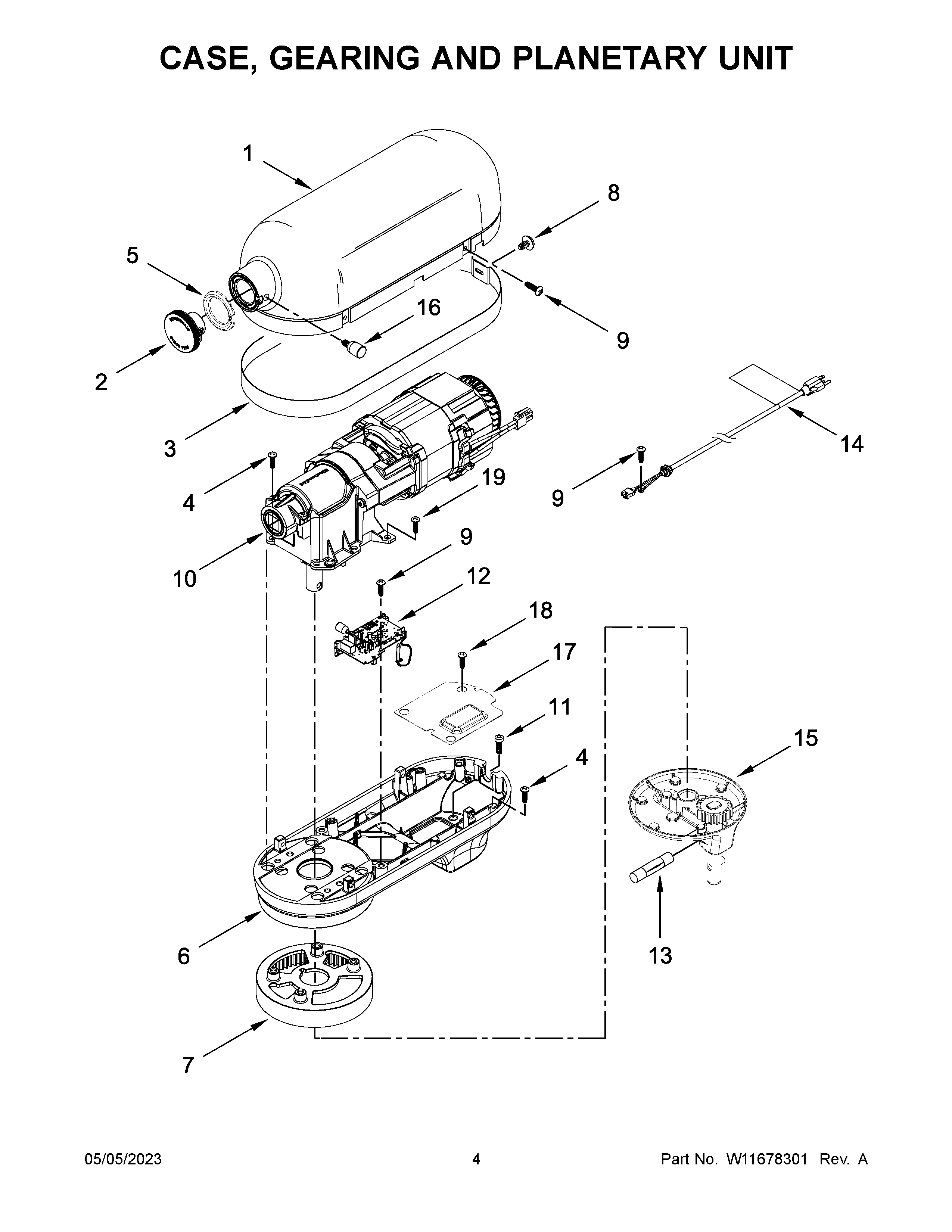

5KSM60SPXBBM0 03 – CASE, GEARING AND PLANETARY UNIT

Products

Position	Product
2	CAP, ATTACHMENT HUB
4	W10914506 Whirlpool Screw
5	WP9703315 Whirlpool Hub Cap
7	GEAR, RING AND PLATE ASSEMBLY
8	W10853069 Whirlpool Screw
9	WP3400814 Whirlpool Screw
10	MOTOR, 230 VOLT ASSEMBLY
11	W10913677 Whirlpool Screw
12	CONTROL ASSEMBLY, 220/230 VOLT
13	WPW10234531 Whirlpool Dishwasher Groove Pin
14	CORD, POWER (BLACK)
15	CABINET (NOT A SERVICEABLE PART)
16	THUMB SCREW (SATIN CHROME)
17	PLATE, LOWER HOUSING
18	SCREW
19	SCREW
