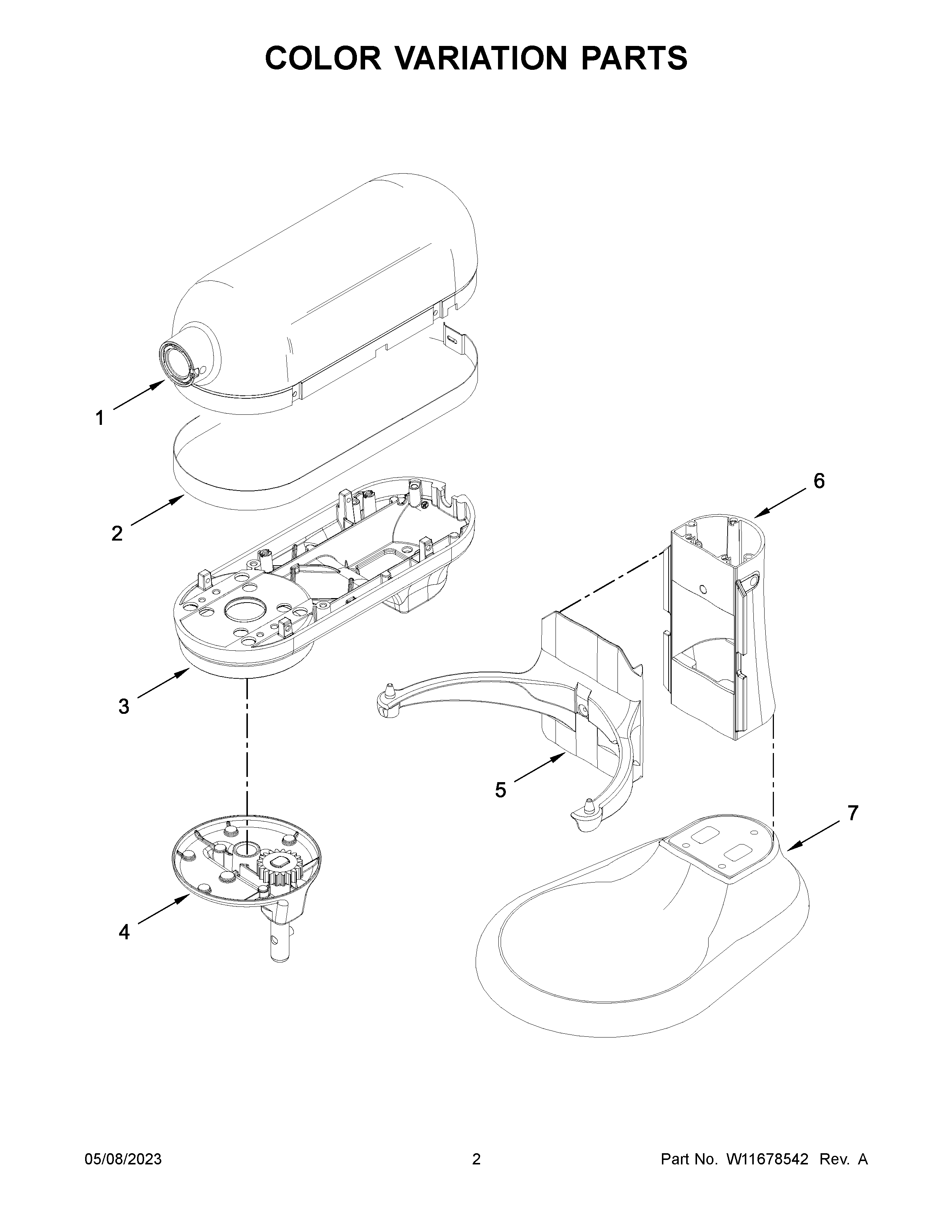

5KSM60SPXEER0 02 – COLOR VARIATION PARTS

5KSM60SPXEER0 02 – COLOR VARIATION PARTS

Written by

in

5KSM60SPXEER0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1MOTOR HOUSING (ALMOND CREAM/CREME)
1C9705300 Whirlpool Housing Assembly
1AMOTOR HOUSING (BLACK MATTE)
1DMOTOR HOUSING (PISTACHIO)
1BW10327951 Whirlpool Housing
2TRIM BAND (BRIGHT ALUMINUM)
3BW11520143 Whirlpool Gearcase
3CLOWER GEARCASE (EMPIRE RED)
3ALOWER GEARCASE (BLACK MATTE)
3LOWER GEARCASE (ALMOND CREAM/CREME)
3DLOWER GEARCASE (PISTACHIO)
4APLANETARY (BLACK MATTE)
4PLANETARY (ALMOND CREME)
4CPLANETARY
4DPLANETARY (PISTACHIO)
4BPLANETARY (CONTOUR SILVER)
5C9705360 Whirlpool Support Assembly
5WPL 9705358
5DBOWL SUPPORT AND PINS (PISTACHIO)
5BWPL W10327966
5AWPL W11328664
6BW10328003 Whirlpool Column Assembly
6AWPL W11123140
6WPL 9705322
6C9705324 Whirlpool Column Assembly
6DCOLUMN AND PINS (PISTACHIO)
7ABASE & FOOT ASSEMBLY (BLACK MATTE)
7C9705348 Whirlpool Base
7BWPL W10328017
7WPL 9705346
7DBASE AND FOOT ASSEMBLY (PISTACHIO)
