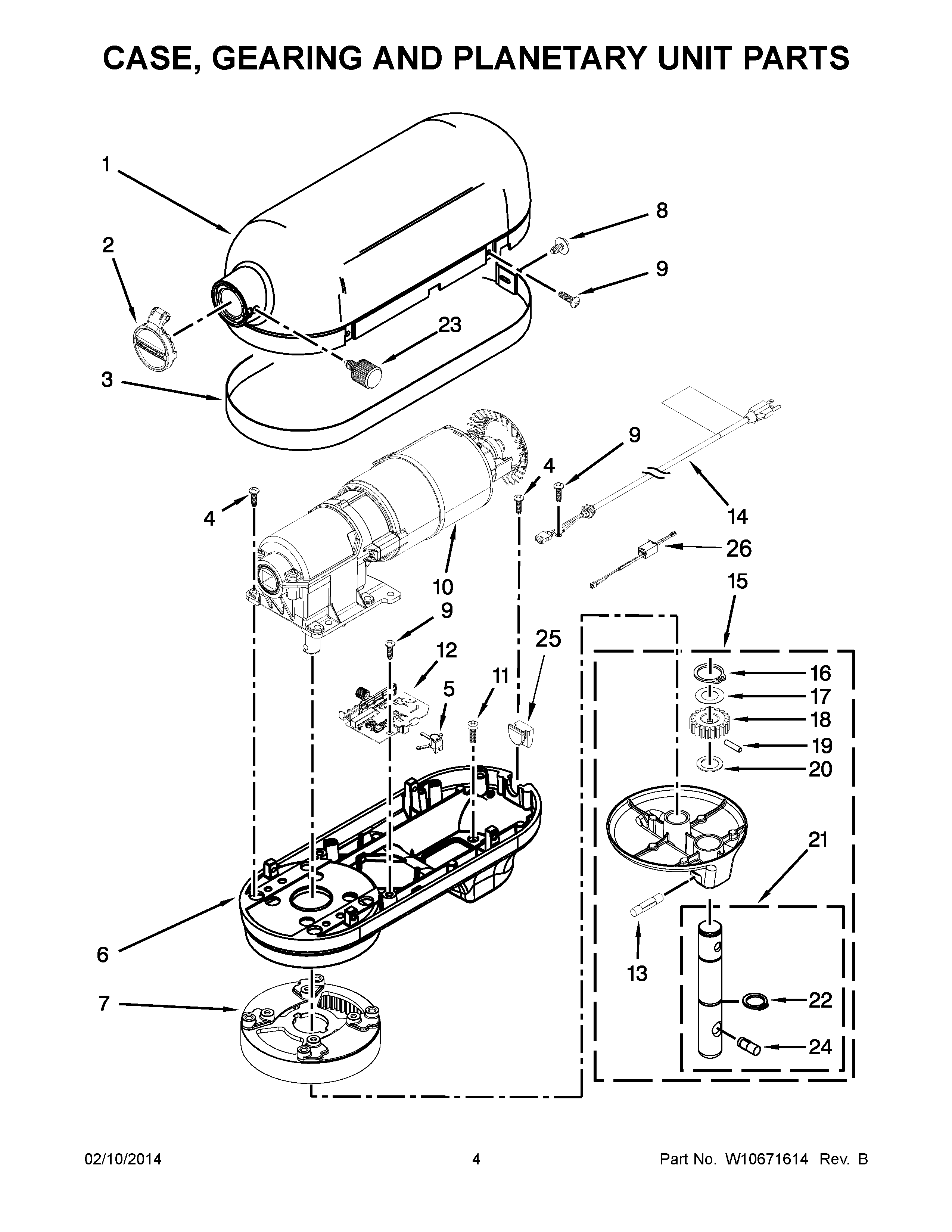

5KSM6521XBER0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

5KSM6521XBER0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Written by

in

5KSM6521XBER0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
1USE AND CARE GUIDE
2W11501449 Whirlpool Handle Assembly
3BOWL, GLASS (6 QUART)
4WP240185 Whirlpool Bowl Retaining Pin
5WPW10504114 Whirlpool Clip
6W10861883 Whirlpool Screw
9WP9708649 Whirlpool Foot
10WP9703307 Whirlpool Ring-C Assembly
11W11376364 Whirlpool Lift Rod
124159622 Whirlpool PP Spring
13Washer
148533907 Whirlpool Dishwasher Nut
15CABINET (NOT A SERVICEABLE PART)
16BEATER, FLAT
17W10686131 Whirlpool Dough Hook
18WP9706885 Whirlpool Lift Arm Assembly
19WPW10552543 Whirlpool Wire Whip
20Cam, Adjusting
21WP3400814 Whirlpool Screw
22W11376371 Whirlpool Handle Assembly
23W10913677 Whirlpool Screw
24W11210995 Whirlpool Bowl Cover Assembly
259706814 Whirlpool Screen
