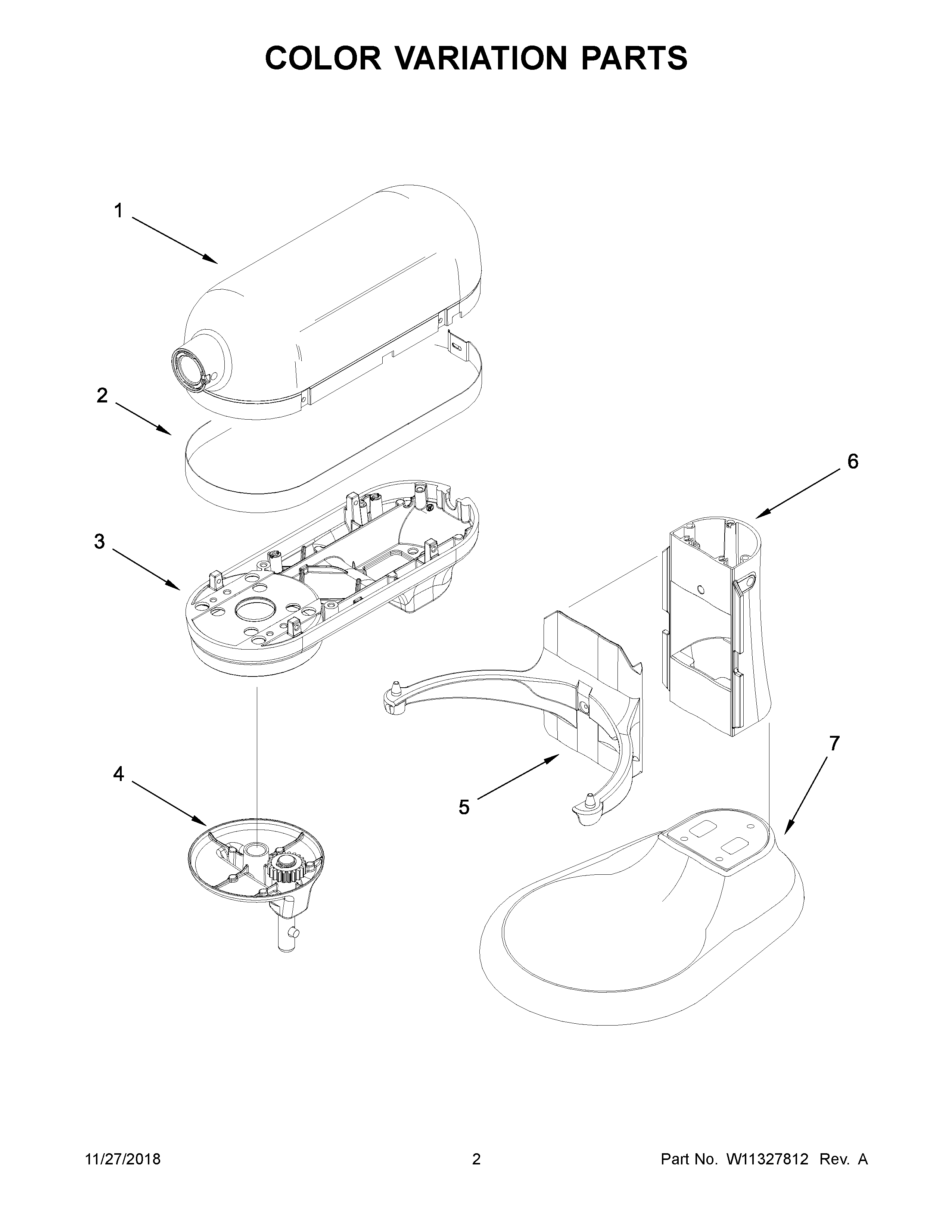

5KSM6583CBF0 02 – COLOR VARIATION PARTS

5KSM6583CBF0 02 – COLOR VARIATION PARTS

Written by

in

5KSM6583CBF0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1BWPW10453625 Whirlpool Housing
1MOTOR HOUSING (BUTTERCUP)
1CMOTOR HOUSING (GUAVA GLAZE)
1DW10726426 Whirlpool Housing
1A9705300 Whirlpool Housing Assembly
1E9703311 Whirlpool Housing Assembly
2W10668069 Whirlpool Trim Band
3CLOWER GEARCASE (GUAVA GLAZE)
3BLOWER GEARCASE (ESPRESSO)
3DLOWER GEARCASE (ICE)
3LOWER GEARCASE (BUTTERCUP)
3ELOWER GEARCASE (WHITE)
3AW10410014 Whirlpool Gearcase
4CPLANETARY (GUAVA GLAZE)
4AWPW10419426 Whirlpool Planetary Assembly
4EWPW10420628 Whirlpool Planetary Mixer
4DPLANETARY (ICE)
4PLANETARY (BUTTERCUP)
4BPLANETARY (ESPRESSO)
5E9703674 Whirlpool Support
5A9705360 Whirlpool Support Assembly
5BWPW10453636 Whirlpool Support
5DBOWL SUPPORT AND PINS (ICE)
5BOWL SUPPORT AND PINS (BUTTERCUP)
5CBOWL SUPPORT AND PINS (GUAVA GLAZE)
6AWPW10451578 Whirlpool Column
6ECOLUMN AND PINS (WHITE)
6COLUMN AND PINS (BUTTERCUP)
6DCOLUMN AND PINS (ICE)
6BCOLUMN AND PINS (ESPRESSO)
6CCOLUMN AND PINS (GUAVA GLAZE)
7E9703690 Whirlpool Base
7BASE & FOOT ASSEMBLY (BUTTERCUP)
7DW10726441 Whirlpool Base Assembly
7CBASE & FOOT ASSEMBLY (GUAVA GLAZE)
7BWPW10453644 Whirlpool Base Assembly
7A9705348 Whirlpool Base
