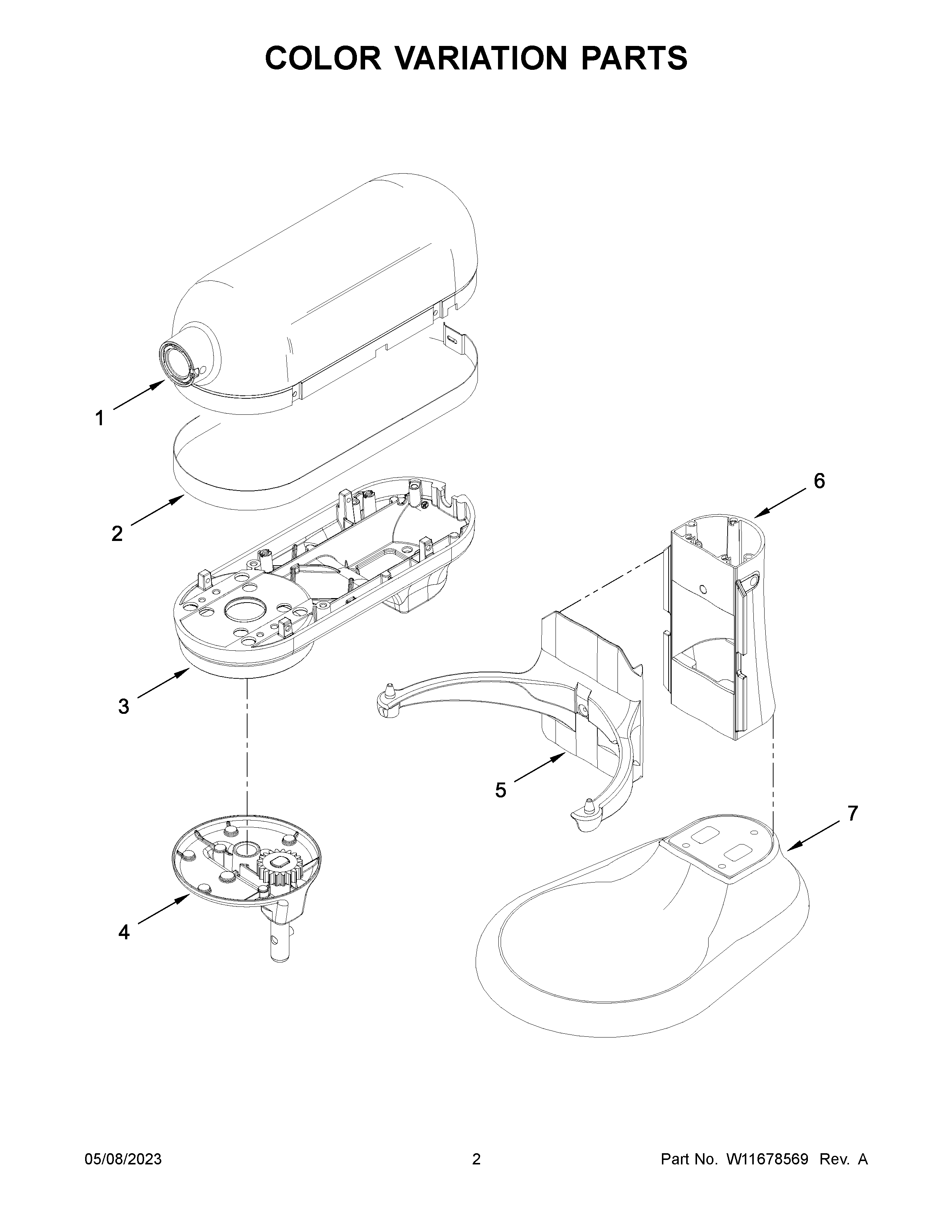

5KSM70JPXBWH0 02 – COLOR VARIATION PARTS

5KSM70JPXBWH0 02 – COLOR VARIATION PARTS

Written by

in

5KSM70JPXBWH0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1B9703311 Whirlpool Housing Assembly
1A9705300 Whirlpool Housing Assembly
1W10327951 Whirlpool Housing
2TRIM BAND (LIGHT BRUSHED ALUMINUM)
3BLOWER GEARCASE (WHITE)
3W11520143 Whirlpool Gearcase
3ALOWER GEARCASE (EMPIRE RED)
4PLANETARY (SILENT SILVER)
5A9705360 Whirlpool Support Assembly
5B9703674 Whirlpool Support
5WPL W10327966
6W10328003 Whirlpool Column Assembly
6A9705324 Whirlpool Column Assembly
6B9703673 Whirlpool Column
7WPL W10328017
7B9703690 Whirlpool Base
7A9705348 Whirlpool Base
