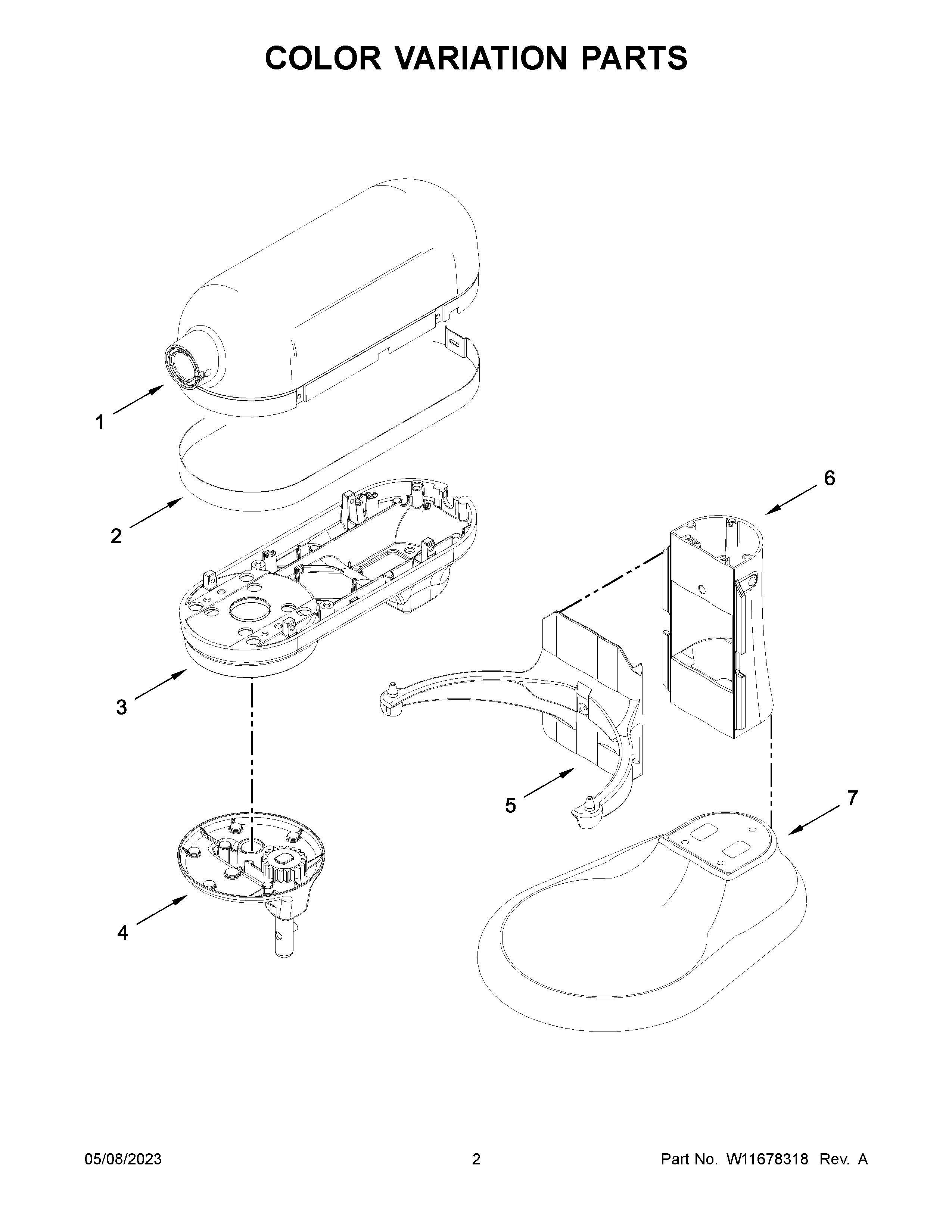

5KSM70JPXEWH0 02 – COLOR VARIATION PARTS

5KSM70JPXEWH0 02 – COLOR VARIATION PARTS

Written by

in

5KSM70JPXEWH0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1C9703311 Whirlpool Housing Assembly
1B9705296 Whirlpool Housing
1A9705300 Whirlpool Housing Assembly
1W10327951 Whirlpool Housing
2TRIM BAND (LIGHT BRUSHED ALUMINUM)
3W11520143 Whirlpool Gearcase
3CLOWER GEARCASE (WHITE)
3ALOWER GEARCASE (EMPIRE RED)
3BLOWER GEARCASE (ONYX BLACK)
4PLANETARY (SILENT SILVER)
5A9705360 Whirlpool Support Assembly
5WPL W10327966
5B9705356 Whirlpool Support
5C9703674 Whirlpool Support
6A9705324 Whirlpool Column Assembly
6C9703673 Whirlpool Column
6W10328003 Whirlpool Column Assembly
6B9705320 Whirlpool Column
7WPL W10328017
7C9703690 Whirlpool Base
7A9705348 Whirlpool Base
7B9705344 Whirlpool Base
