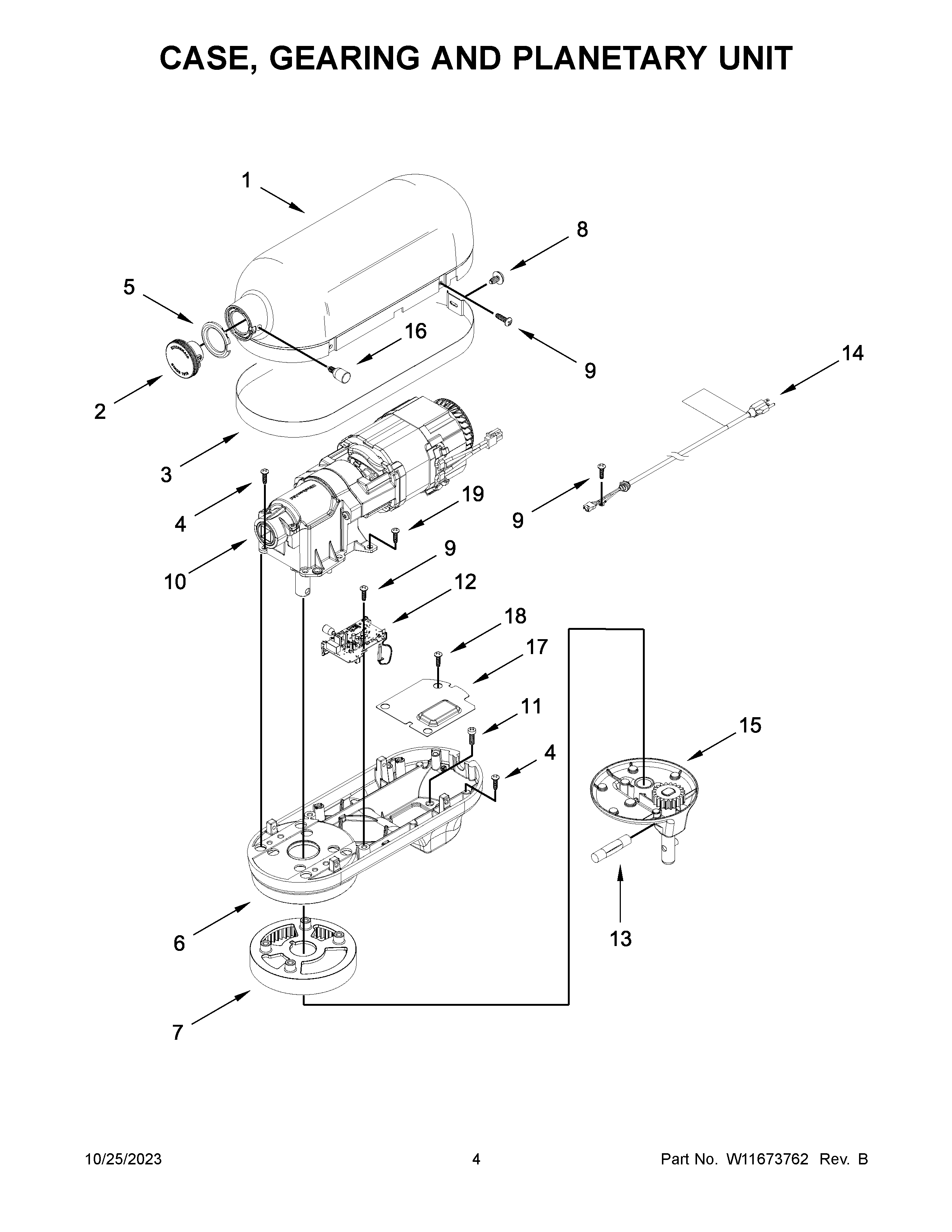

5KSM70SHXAAC0 03 – CASE, GEARING AND PLANETARY UNITadmin2025-04-26T10:43:07+00:005KSM70SHXAAC0 03 – CASE, GEARING AND PLANETARY UNIT ProductsPositionProduct1GEARCASE MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)2COVER, ATTACHMENT HUB - DUAL FINISH3BAND, TRIM (REFER TO COLOR VARIATION PARTS PAGE)4W10914506 Whirlpool Screw5WP9703315 Whirlpool Hub Cap6LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE)7GEAR, RING AND PLATE ASSEMBLY8W10853069 Whirlpool Screw9WP3400814 Whirlpool Screw10MOTOR, 230 VOLT ASSEMBLY11W10913677 Whirlpool Screw12W11649202 Whirlpool Speed Control13WPW10234531 Whirlpool Dishwasher Groove Pin14CORD, POWER (BLACK)15PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)16THUMB SCREW (CHROME)17PLATE, LOWER HOUSING18SCREW19SCREW
