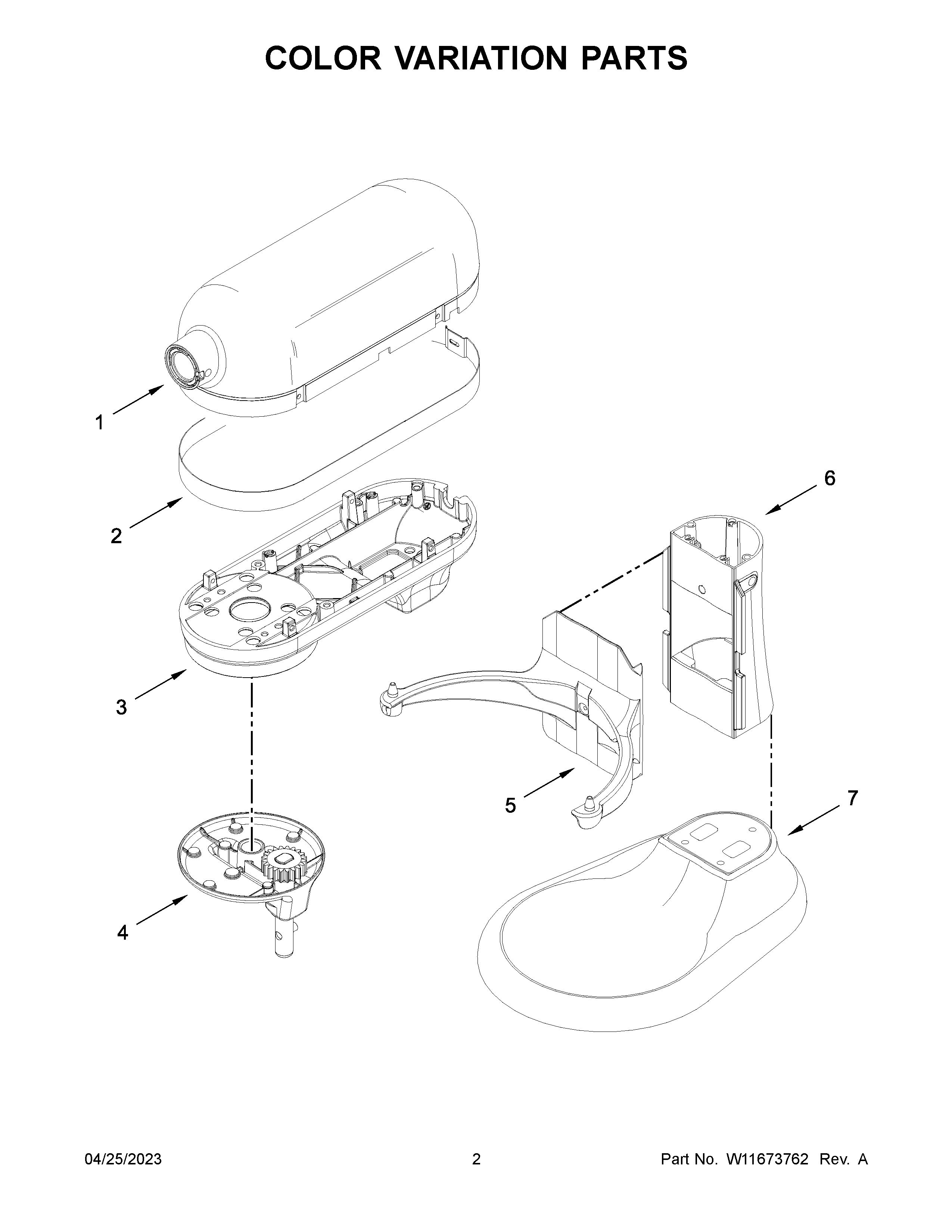

5KSM70SHXABK0 02 – COLOR VARIATION PARTS

Products

Position	Product
1B	WPW10403016 Whirlpool Housing
1A	9703532 Whirlpool Housing Assembly
1F	MOTOR HOUSING (PISTACHIO)
1	MOTOR HOUSING (ALMOND CREAM/CREME)
1C	MOTOR HOUSING (MATTE DRIED ROSE)
1E	MOTOR HOUSING (PEBBLED PALM)
1D	9705300 Whirlpool Housing Assembly
2	TRIM BAND (BRIGHT ALUMINUM)
3C	LOWER GEARCASE (MATTE DRIED ROSE)
3B	LOWER GEARCASE (CANDY APPLE RED)
3F	LOWER GEARCASE (PISTACHIO)
3	LOWER GEARCASE (ALMOND CREAM/CREME)
3A	LOWER GEARCASE (CAST IRON BLACK/IMPERIAL BLACK)
3E	LOWER GEARCASE (PEBBLED PALM)
3D	LOWER GEARCASE (EMPIRE RED)
4	PLANETARY (SILENT SILVER)
5D	9705360 Whirlpool Support Assembly
5C	BOWL SUPPORT AND PINS (MATTE DRIED ROSE)
5F	BOWL SUPPORT AND PINS (PISTACHIO)
5B	WPW10402998 Whirlpool Support
5	WPL 9705358
5E	W11415373 Whirlpool Support Assembly
5A	BOWL SUPPORT-Imperial Black
6F	COLUMN AND PINS (PISTACHIO)
6	WPL 9705322
6D	9705324 Whirlpool Column Assembly
6A	COLUMN-Imperial Black
6C	COLUMN AND PINS (MATTE DRIED ROSE)
6B	WPW10402992 Whirlpool Column Assembly
6E	WPL W11415374
7C	BASE AND FOOT AS
7B	WPW10402986 Whirlpool Base Assembly
7F	BASE AND FOOT ASSEMBLY (PISTACHIO)
7D	9705348 Whirlpool Base
7A	Base And Foot Assembly (Imperial Black)
7	WPL 9705346
7E	WPL W11415375
