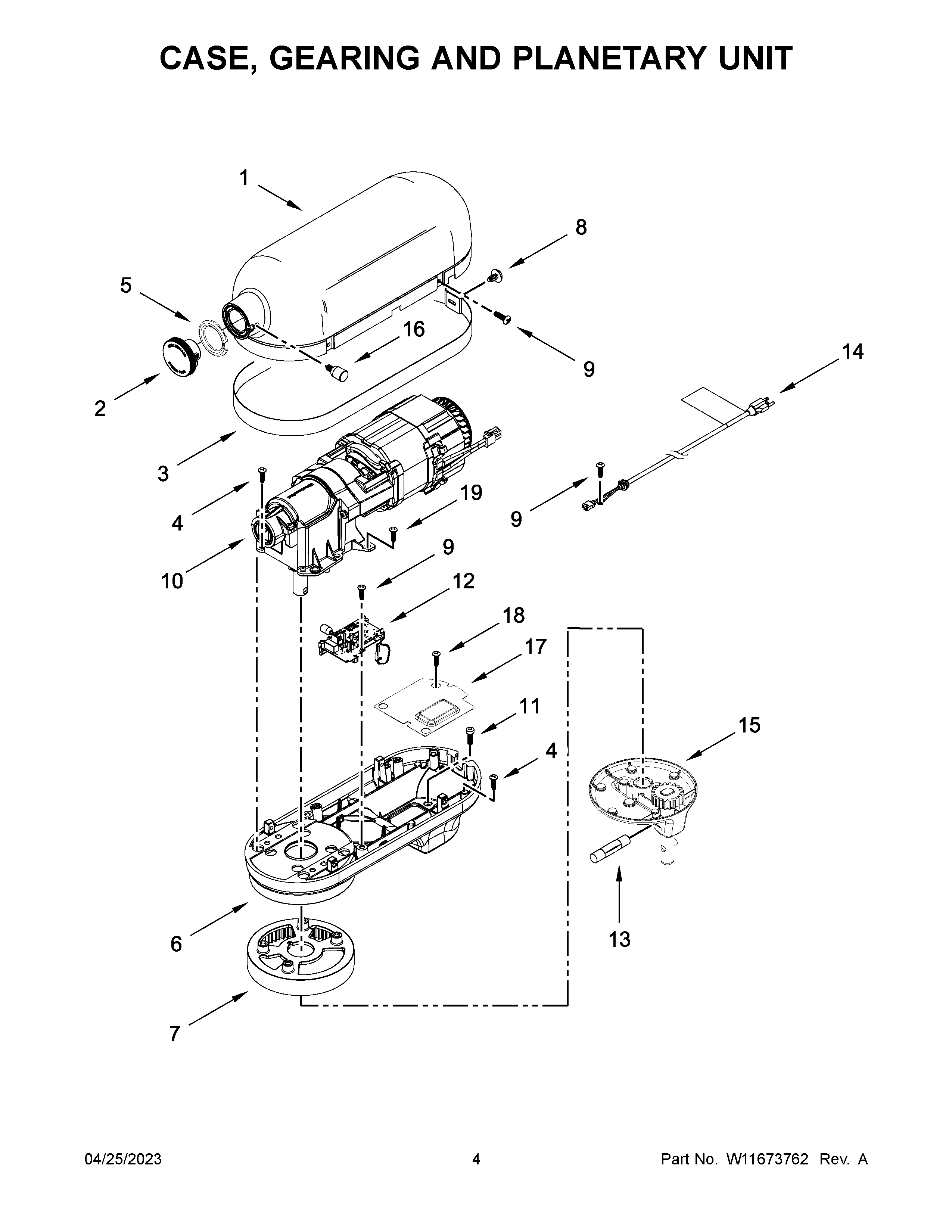

5KSM70SHXABK0 03 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
1GEARCASE MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)
2COVER, ATTACHMENT HUB – DUAL FINISH
3BAND, TRIM (REFER TO COLOR VARIATION PARTS PAGE)
4W10914506 Whirlpool Screw
5WP9703315 Whirlpool Hub Cap
6LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE)
7GEAR, RING AND PLATE ASSEMBLY
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10MOTOR, 230 VOLT ASSEMBLY
11W10913677 Whirlpool Screw
12W11649202 Whirlpool Speed Control
13WPW10234531 Whirlpool Dishwasher Groove Pin
14CORD, POWER (BLACK)
15PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
16THUMB SCREW (CHROME)
17PLATE, LOWER HOUSING
18SCREW
19SCREW
