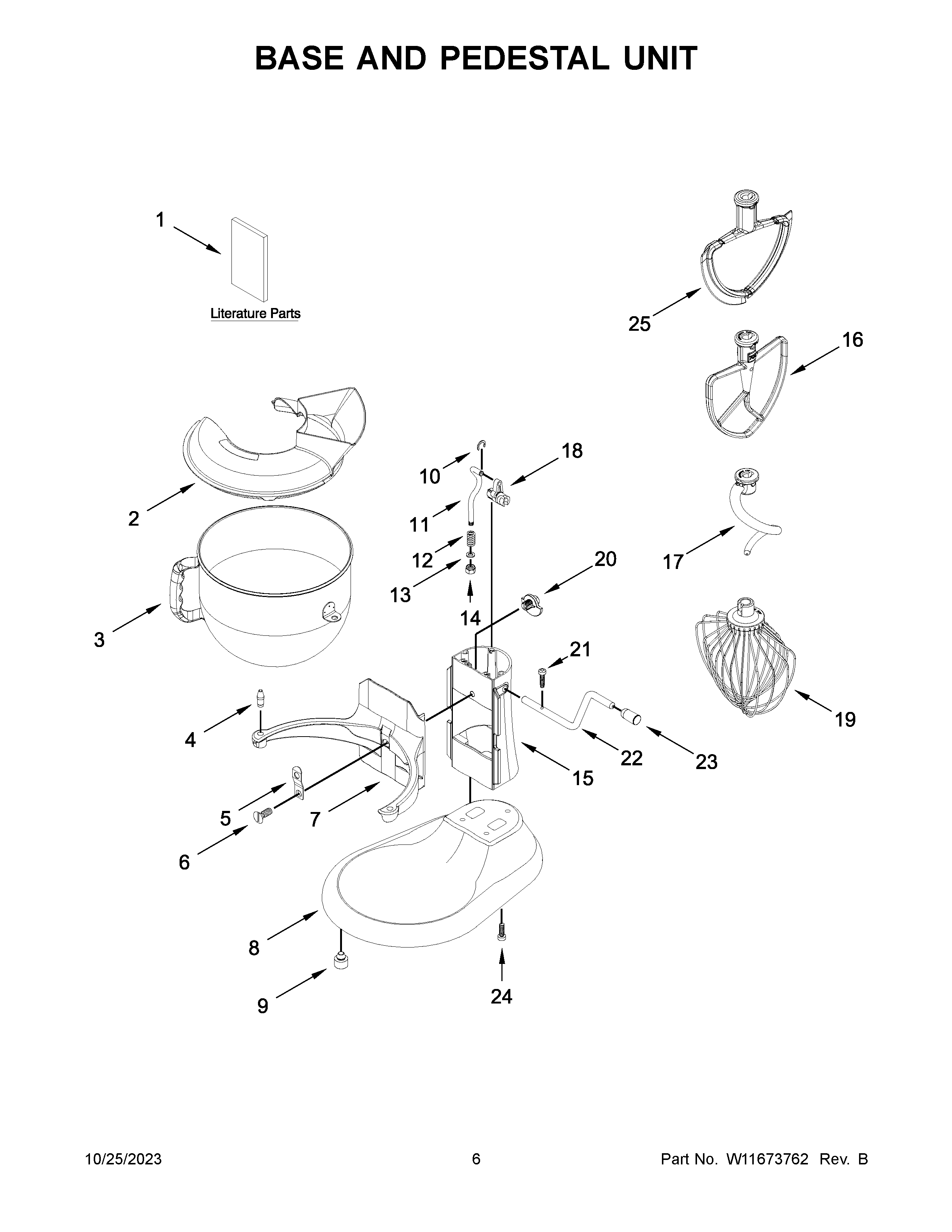

5KSM70SHXADR0 04 – BASE AND PEDESTAL UNITadmin2025-04-26T10:43:16+00:005KSM70SHXADR0 04 – BASE AND PEDESTAL UNIT ProductsPositionProduct1USE AND CARE GUIDE2SHIELD, POURING (WIDE)3BOWL, 7 QT. (BRUSHED)4WP240185 Whirlpool Bowl Retaining Pin5WPW10504114 Whirlpool Clip6W10861883 Whirlpool Screw7BOWL SUPPORT (REFER TO COLOR VARIATION PARTS PAGE)8BASE AND FOOT ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)9WP9708649 Whirlpool Foot10WP9703307 Whirlpool Ring-C Assembly11W11376364 Whirlpool Lift Rod124159622 Whirlpool PP Spring13Washer148533907 Whirlpool Dishwasher Nut15COLUMN ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)16W11458649 Whirlpool Mixer Beater17W11397072 Whirlpool Mixer Dough Hook18WP9706885 Whirlpool Lift Arm Assembly19WPW10600940 Whirlpool Wire Whip20Cam, Adjusting21WP3400814 Whirlpool Screw22W11376371 Whirlpool Handle Assembly23CAP, HANDLE24W10913677 Whirlpool Screw25BEATER, DOUBLE FLEX EDGE
