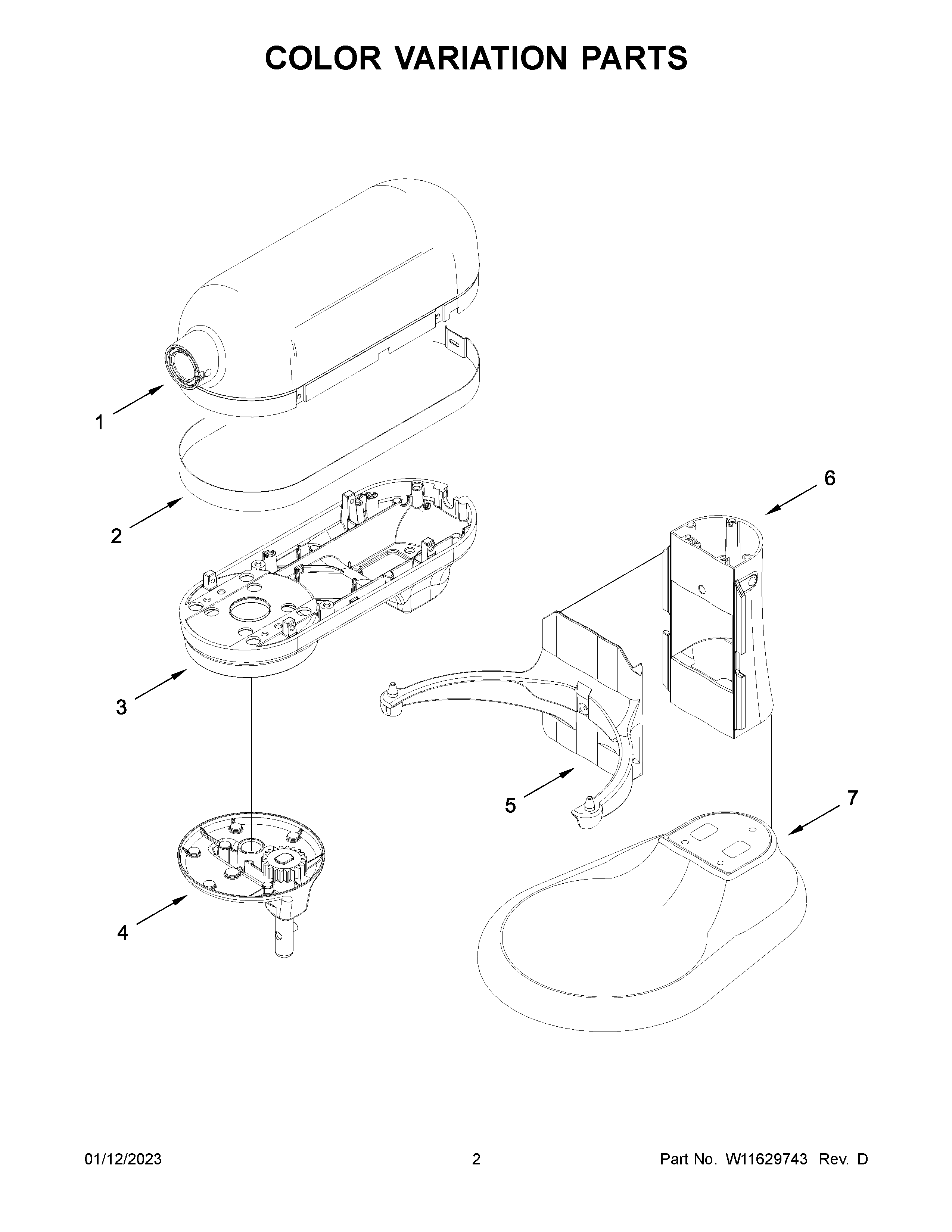

5KSM70SHXEBK0 02 – COLOR VARIATION PARTS

5KSM70SHXEBK0 02 – COLOR VARIATION PARTS

Written by

in

5KSM70SHXEBK0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1DW10327951 Whirlpool Housing
1BWPW10403016 Whirlpool Housing
1C9703532 Whirlpool Housing Assembly
1AMOTOR HOUSING (BLACK MATTE)
1FMOTOR HOUSING (MATTE DRIED ROSE)
1MOTOR HOUSING (ALMOND CREAM/CREME)
1GWPW10354887 Whirlpool Housing
1IMOTOR HOUSING (PEBBLED PALM)
1H9705296 Whirlpool Housing
1E9705300 Whirlpool Housing Assembly
2TRIM BAND (BRIGHT ALUMINUM)
2COVER, ATTACHMENT HUB – DUAL FINISH
3CLOWER GEARCASE (CAST IRON BLACK/IMPERIAL BLACK)
3HLOWER GEARCASE (ONYX BLACK)
3ELOWER GEARCASE (EMPIRE RED)
3DW11520143 Whirlpool Gearcase
3ALOWER GEARCASE (BLACK MATTE)
3ILOWER GEARCASE (PEBBLED PALM)
3LOWER GEARCASE (ALMOND CREAM/CREME)
3BLOWER GEARCASE (CANDY APPLE RED)
3GLOWER GEARCASE (MEDALLION SILVER)
3FLOWER GEARCASE (MATTE DRIED ROSE)
4PLANETARY (SILENT SILVER)
4W10914506 Whirlpool Screw
5FBOWL SUPPORT AND PINS (MATTE DRIED ROSE)
5GWPW10354878 Whirlpool Support
5BWPW10402998 Whirlpool Support
5IW11415373 Whirlpool Support Assembly
5WP9703315 Whirlpool Hub Cap
5CBOWL SUPPORT-Imperial Black
5AWPL W11328664
5DWPL W10327966
5WPL 9705358
5H9705356 Whirlpool Support
5E9705360 Whirlpool Support Assembly
6CCOLUMN-Imperial Black
6FCOLUMN AND PINS (MATTE DRIED ROSE)
6DW10328003 Whirlpool Column Assembly
6H9705320 Whirlpool Column
6WPL 9705322
6GWPW10354872 Whirlpool Column Assembly
6E9705324 Whirlpool Column Assembly
6BWPW10402992 Whirlpool Column Assembly
6IWPL W11415374
6AWPL W11123140
7GWPW10354860 Whirlpool Base Assembly
7IWPL W11415375
7FBASE AND FOOT AS
7H9705344 Whirlpool Base
7E9705348 Whirlpool Base
7CBase And Foot Assembly (Imperial Black)
7ABASE & FOOT ASSEMBLY (BLACK MATTE)
7WPL 9705346
7DWPL W10328017
7BWPW10402986 Whirlpool Base Assembly
7GEAR, RING AND PLATE ASSEMBLY
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10MOTOR, 230 VOLT ASSEMBLY
11W10913677 Whirlpool Screw
12W11649202 Whirlpool Speed Control
13WPW10234531 Whirlpool Dishwasher Groove Pin
14CORD, POWER (BLACK)
15CABINET (NOT A SERVICEABLE PART)
16THUMB SCREW (CHROME)
17PLATE, LOWER HOUSING
18SCREW
19SCREW
