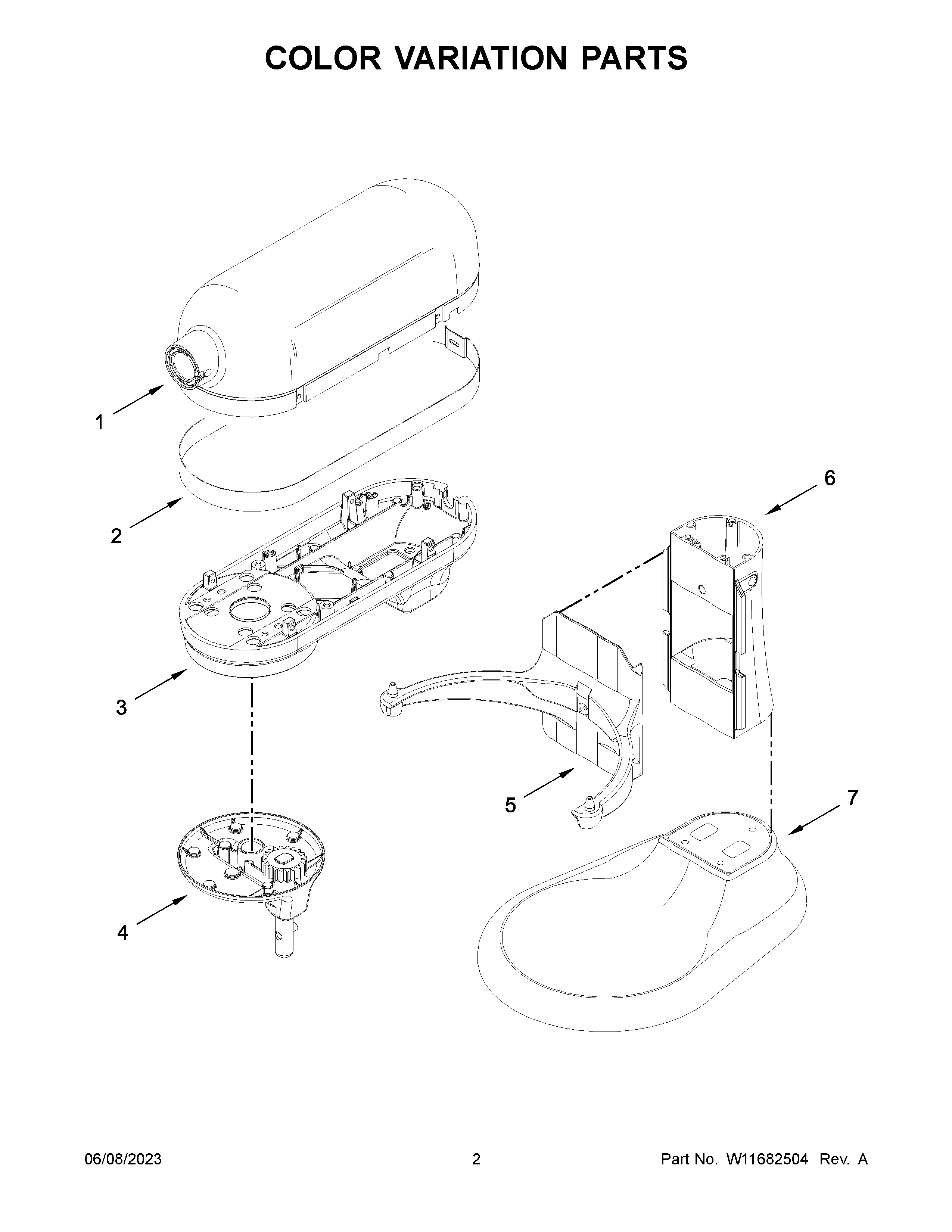

5KSM70SKXRER0 02 – COLOR VARIATION PARTS

5KSM70SKXRER0 02 – COLOR VARIATION PARTS

Written by

in

5KSM70SKXRER0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1A9705300 Whirlpool Housing Assembly
1W10327951 Whirlpool Housing
2TRIM BAND (BRIGHT ALUMINUM)
3ALOWER GEARCASE (EMPIRE RED)
3W11520143 Whirlpool Gearcase
4PLANETARY (SILENT SILVER)
5WPL W10327966
5A9705360 Whirlpool Support Assembly
6W10328003 Whirlpool Column Assembly
6A9705324 Whirlpool Column Assembly
7WPL W10328017
7A9705348 Whirlpool Base
