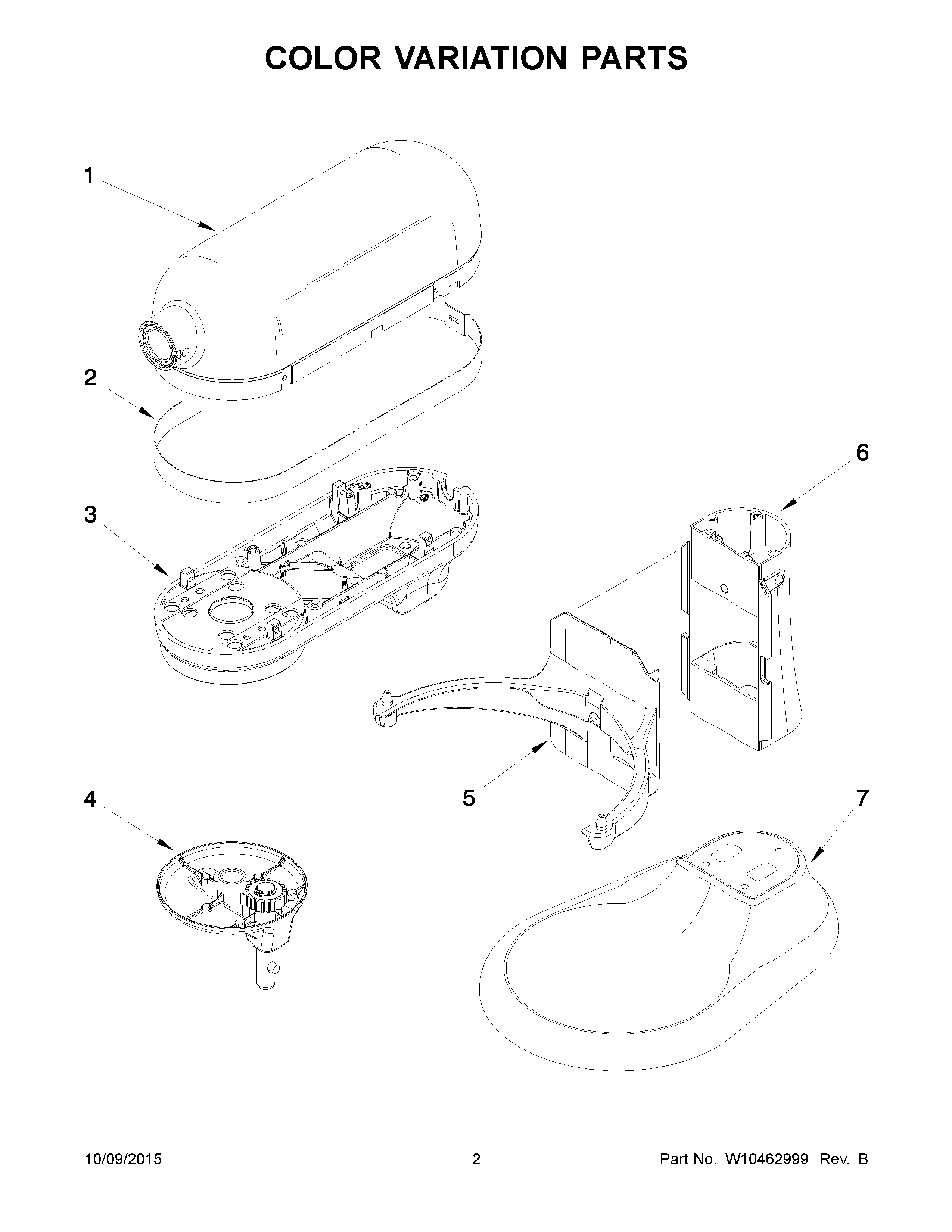

5KSM7580XBOB0 02 – COLOR VARIATION PARTS

5KSM7580XBOB0 02 – COLOR VARIATION PARTS

Written by

in

5KSM7580XBOB0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1CWPW10354887 Whirlpool Housing
1DMOTOR HOUSING (FROSTED PEARL)
1AWPW10403016 Whirlpool Housing
1EMOTOR HOUSING (ALMOND CREAM/CREME)
1B9705300 Whirlpool Housing Assembly
19705296 Whirlpool Housing
2W10668069 Whirlpool Trim Band
3W10410015 Whirlpool Gearcase
3ELOWER GEARCASE (ALMOND CREME)
3DW10454060 Whirlpool Gearcase
3BW10410014 Whirlpool Gearcase
3CW10354882 Whirlpool Gearcase
3AW10403006 Whirlpool Gearcase Assembly
4BWPW10419426 Whirlpool Planetary Assembly
4EPLANETARY (ALMOND CREME)
4CWPW10354883 Whirlpool Planetary Gear
4AWPW10403008 Whirlpool Planetary Assembly
4DW10520287 Whirlpool Planetary Mixer
4WPW10410018 Whirlpool Planetary Assembly
5B9705360 Whirlpool Support Assembly
5AWPW10402998 Whirlpool Support
5DBOWL SUPPORT AND PINS (FROSTED PEARL)
59705356 Whirlpool Support
5CWPW10354878 Whirlpool Support
5EWPL 9705358
6CWPW10451118 Whirlpool Column
6AWPW10450997 Whirlpool Column
6ECOLUMN AND PINS (ALMOND CREME)
6BWPW10451578 Whirlpool Column
6WPW10450990 Whirlpool Column Assembly
6DWPW10444018 Whirlpool Column
7B9705348 Whirlpool Base
7EWPL 9705346
7AWPW10402986 Whirlpool Base Assembly
7CWPW10354860 Whirlpool Base Assembly
7DBASE AND FOOT ASSEMBLY (FROSTED PEARL)
79705344 Whirlpool Base
