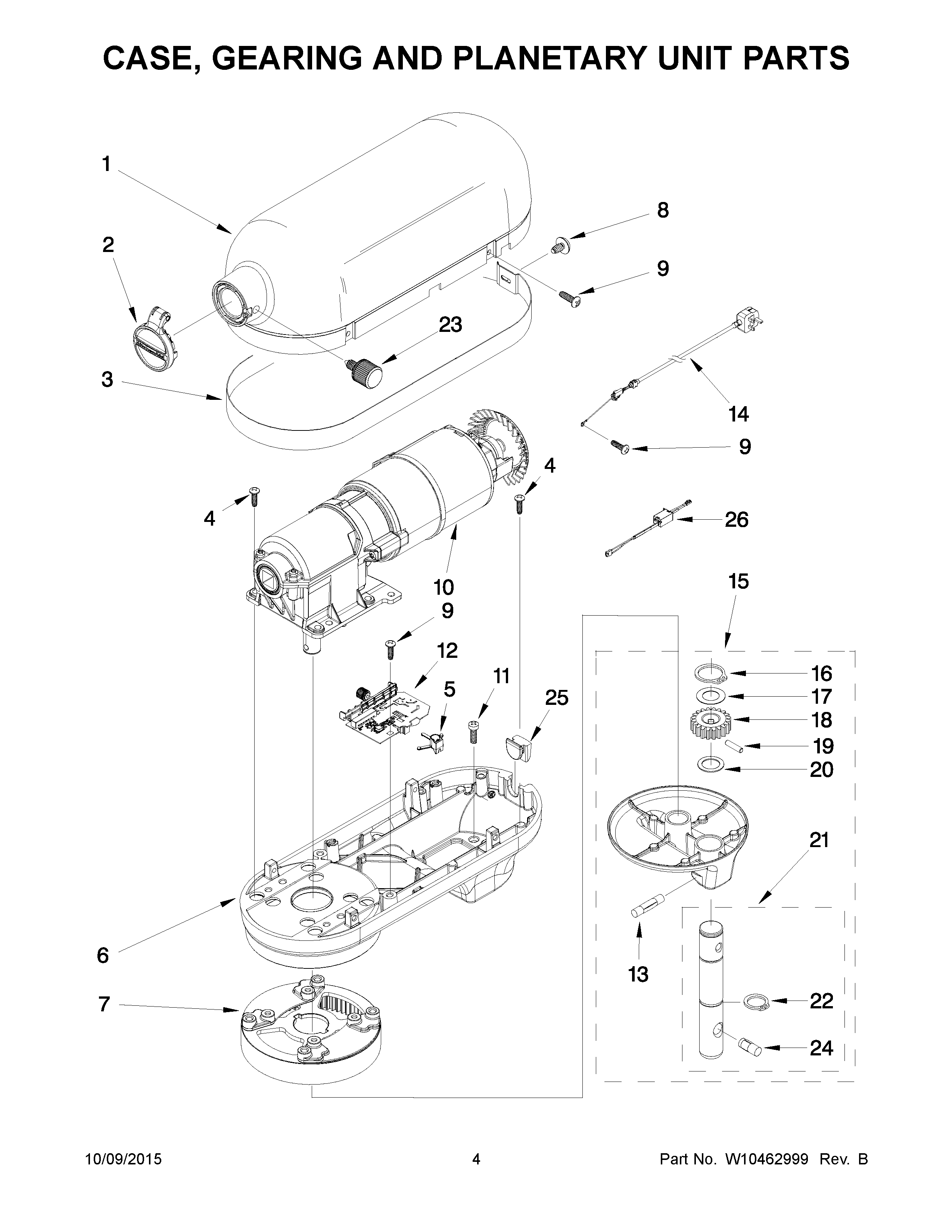

5KSM7580XBOB0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
2	W11123129 Whirlpool Hubcap
4	W10914506 Whirlpool Screw
5	WPW10305968 Whirlpool Holder
7	GEAR, RING AND PLATE ASSEMBLY
8	W10853069 Whirlpool Screw
9	WP3400814 Whirlpool Screw
10	WPW10517943 Whirlpool Motor
11	W10913677 Whirlpool Screw
12	W11188060 Whirlpool Speed Control
13	WPW10234531 Whirlpool Dishwasher Groove Pin
14A	W10419451 Whirlpool Power Cord
14	W10459179 Whirlpool Power Cord
15	CABINET (NOT A SERVICEABLE PART)
16	WP9703438 Whirlpool Snap Retaining Ring
17	WP9706090 Whirlpool Washer
18	WPW10234643 Whirlpool Gear Assembly
19	WP9707223 Whirlpool Dowel Pin
20	W10854966 Whirlpool Washer
21	WP9708191 Whirlpool Agitator Shaft
22	WP9703680 Whirlpool Retainer Ring
23	WPW10360791 Whirlpool Screw
24	W11664709 Whirlpool Groove Pin
25	W10417201 Whirlpool Clip
26	W10447372 Whirlpool Interference Filter
