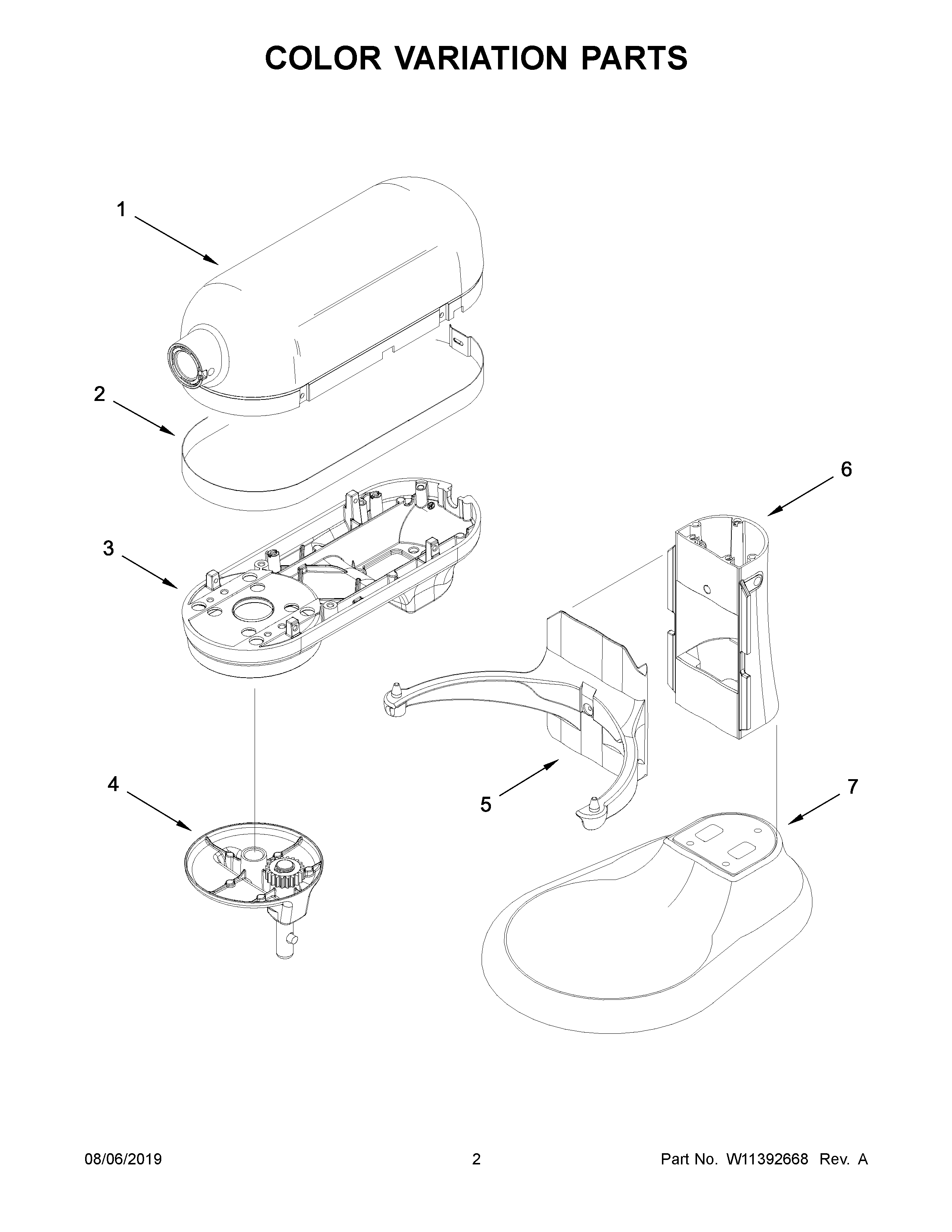

5KSM7580XECA0 02 – COLOR VARIATION PARTS

5KSM7580XECA0 02 – COLOR VARIATION PARTS

Written by

in

5KSM7580XECA0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1AWPW10403016 Whirlpool Housing
1EWPW10354887 Whirlpool Housing
1DMOTOR HOUSING (FROSTED PEARL)
1B9703532 Whirlpool Housing Assembly
1MOTOR HOUSING (ALMOND CREAM/CREME)
1GMOTOR HOUSING (MATTE DRIED ROSE)
1C9705300 Whirlpool Housing Assembly
1F9705296 Whirlpool Housing
2W10668069 Whirlpool Trim Band
3LOWER GEARCASE (ALMOND CREME)
3DW10454060 Whirlpool Gearcase
3CW10410014 Whirlpool Gearcase
3AW10403006 Whirlpool Gearcase Assembly
3BLOWER GEARCASE (CAST IRON BLACK/IMPERIAL BLACK)
3EW10354882 Whirlpool Gearcase
3FW10410015 Whirlpool Gearcase
3GLOWER GEARCASE (SILVER)
4EWPW10354883 Whirlpool Planetary Gear
4GPLANETARY (MATTE DRIED ROSE)
4PLANETARY (ALMOND CREME)
4CWPW10419426 Whirlpool Planetary Assembly
4AWPW10403008 Whirlpool Planetary Assembly
4DW10520287 Whirlpool Planetary Mixer
4FWPW10410018 Whirlpool Planetary Assembly
4BW10737004 Whirlpool Planetary Assembly
5EWPW10354878 Whirlpool Support
5GBOWL SUPPORT AND PINS (MATTE DRIED ROSE)
5BBOWL SUPPORT-Imperial Black
5WPL 9705358
5AWPW10402998 Whirlpool Support
5C9705360 Whirlpool Support Assembly
5F9705356 Whirlpool Support
5DBOWL SUPPORT AND PINS (FROSTED PEARL)
6GWPL W11438679
6BWPL W11376412
6EWPW10451118 Whirlpool Column
6FWPW10450990 Whirlpool Column Assembly
6CWPW10451578 Whirlpool Column
6AWPW10450997 Whirlpool Column
6COLUMN AND PINS (ALMOND CREME)
6DWPW10444018 Whirlpool Column
7AWPW10402986 Whirlpool Base Assembly
7DBASE AND FOOT ASSEMBLY (FROSTED PEARL)
7C9705348 Whirlpool Base
7BBase And Foot Assembly (Imperial Black)
7GBASE AND FOOT AS
7WPL 9705346
7F9705344 Whirlpool Base
7EWPW10354860 Whirlpool Base Assembly
