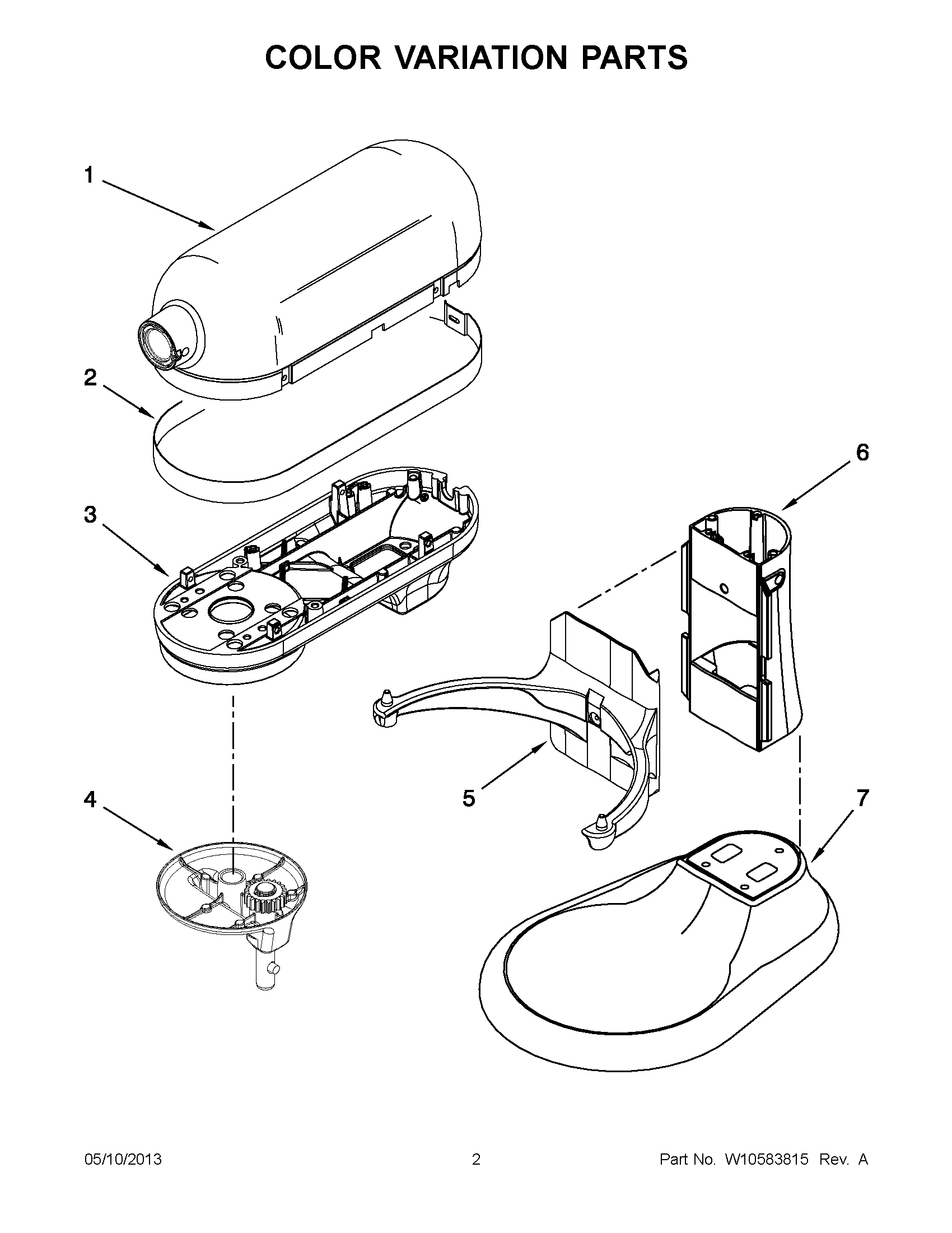

5KSM7581ACA0 01 – COLOR VARIATION PARTS

5KSM7581ACA0 01 – COLOR VARIATION PARTS

Written by

in

5KSM7581ACA0 01 – COLOR VARIATION PARTS

Products

PositionProduct
1WPW10354887 Whirlpool Housing
19705296 Whirlpool Housing
1WPW10403016 Whirlpool Housing
1MOTOR HOUSING (FROSTED PEARL)
2TRIM BAND (DARK PLATINUM)
3W10410015 Whirlpool Gearcase
3W10454060 Whirlpool Gearcase
3W10403006 Whirlpool Gearcase Assembly
3W10354882 Whirlpool Gearcase
4WPW10410018 Whirlpool Planetary Assembly
4WPW10403008 Whirlpool Planetary Assembly
4W10520287 Whirlpool Planetary Mixer
4WPW10354883 Whirlpool Planetary Gear
5WPW10354878 Whirlpool Support
5BOWL SUPPORT AND PINS (FROSTED PEARL)
5WPW10402998 Whirlpool Support
59705356 Whirlpool Support
6WPW10451118 Whirlpool Column
6WPW10450990 Whirlpool Column Assembly
6WPW10450997 Whirlpool Column
6WPW10444018 Whirlpool Column
7WPW10354860 Whirlpool Base Assembly
7BASE AND FOOT ASSEMBLY (FROSTED PEARL)
7WPW10402986 Whirlpool Base Assembly
79705344 Whirlpool Base
