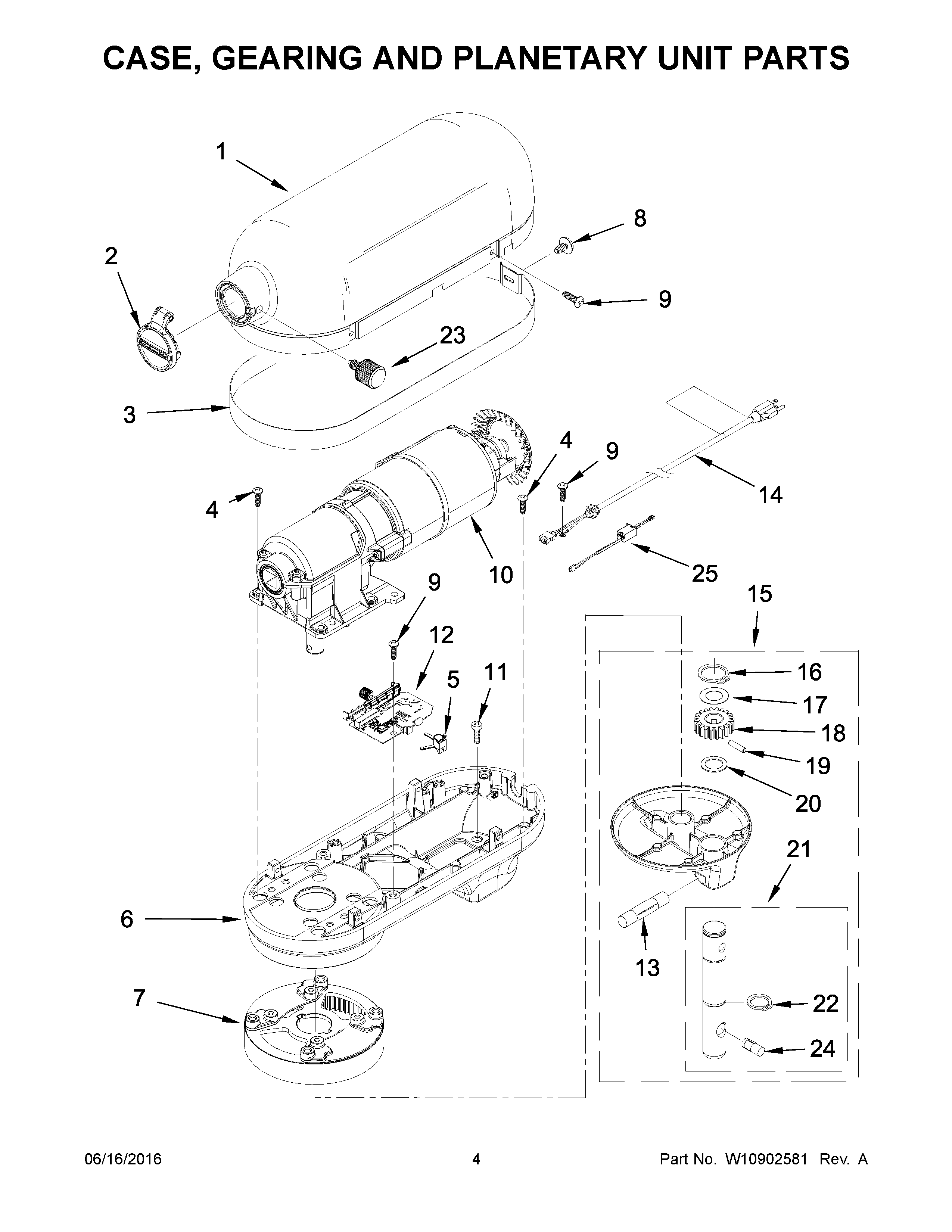

5KSM7586PZCA0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
2W11123129 Whirlpool Hubcap
4W10914506 Whirlpool Screw
5WPW10305968 Whirlpool Holder
7GEAR, RING AND PLATE ASSEMBLY
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10WPW10517943 Whirlpool Motor
10AW11246392 Whirlpool Motor
11W10913677 Whirlpool Screw
12W11188060 Whirlpool Speed Control
12ACONTROL ASSEMBLY (120 VOLT)
13WPW10234531 Whirlpool Dishwasher Groove Pin
14CORD, POWER (BLACK)
14ACORD, POWER (BLACK 7KSM7586PZCA0)
15CABINET (NOT A SERVICEABLE PART)
16WP9703438 Whirlpool Snap Retaining Ring
17WP9706090 Whirlpool Washer
18WPW10234643 Whirlpool Gear Assembly
19WP9707223 Whirlpool Dowel Pin
20W10854966 Whirlpool Washer
21WP9708191 Whirlpool Agitator Shaft
22WP9703680 Whirlpool Retainer Ring
23W10512907 Whirlpool Screw
24W11664709 Whirlpool Groove Pin
25W10703125 Whirlpool Filter
25ARFI FILTER 7KSM7586PZCA0
