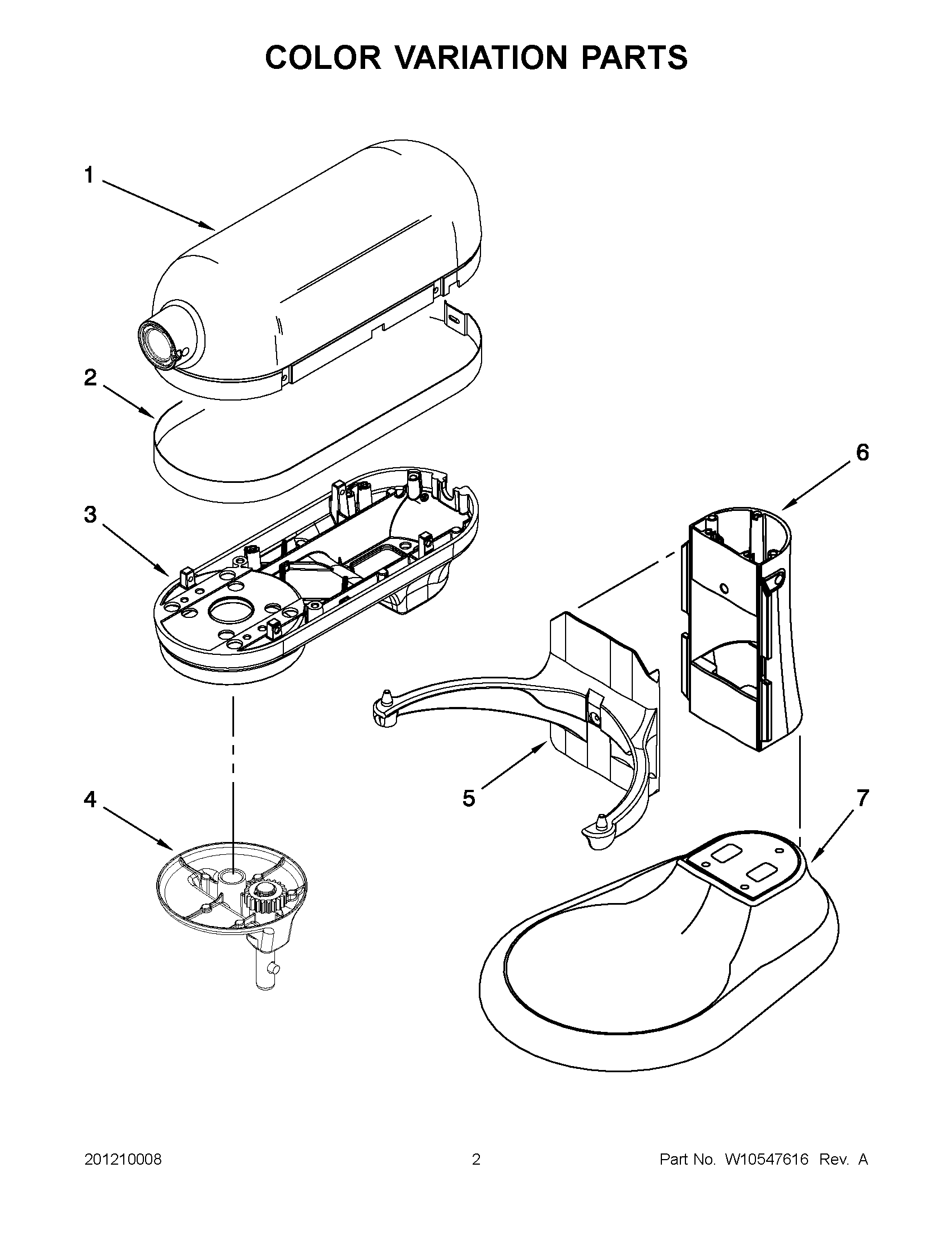

5KSM7590ZER0 01 – COLOR VARIATION PARTS

5KSM7590ZER0 01 – COLOR VARIATION PARTS

Written by

in

5KSM7590ZER0 01 – COLOR VARIATION PARTS

Products

PositionProduct
1W10454049 Whirlpool Housing
19703311 Whirlpool Housing Assembly
19705300 Whirlpool Housing Assembly
2TRIM BAND (DARK PLATINUM)
3W10307993 Whirlpool Gearcase Assembly
3W10410014 Whirlpool Gearcase
3W10450993 Whirlpool Gearcase
4WPW10419426 Whirlpool Planetary Assembly
4WPW10420628 Whirlpool Planetary Mixer
4PLANETARY (SILVER METALLIC)
59705360 Whirlpool Support Assembly
5BOWL SUPPORT AND PINS (SILVER METALLIC)
59703674 Whirlpool Support
6WPW10451578 Whirlpool Column
6COLUMN AND PINS (SILVER METALLIC)
6COLUMN AND PINS (WHITE)
79705348 Whirlpool Base
79703690 Whirlpool Base
7WPW10448633 Whirlpool Base
