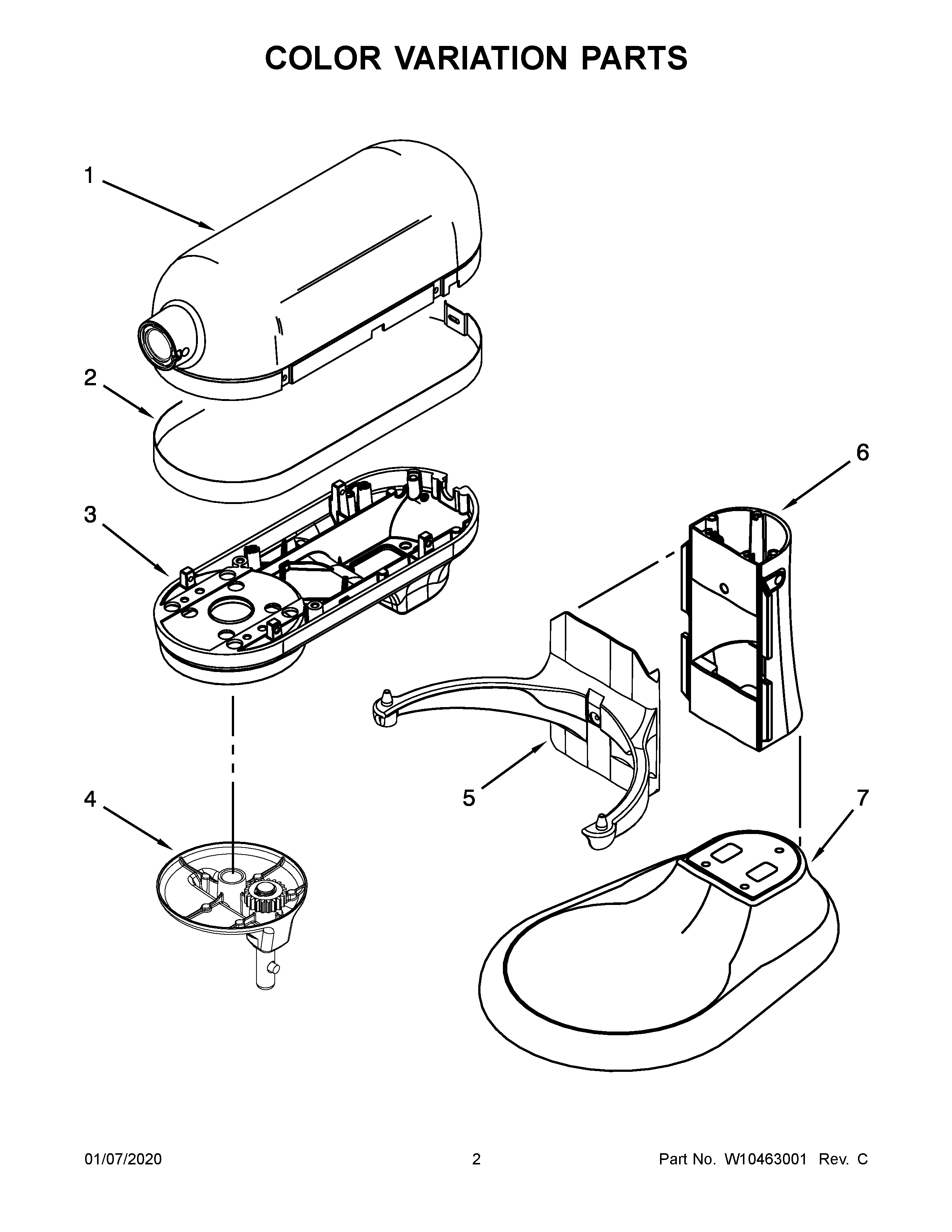

5KSM7591XBSM0 02 – COLOR VARIATION PARTS

5KSM7591XBSM0 02 – COLOR VARIATION PARTS

Written by

in

5KSM7591XBSM0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1C9709571 Whirlpool Housing Assembly
19703311 Whirlpool Housing Assembly
1A9705300 Whirlpool Housing Assembly
1BW10454049 Whirlpool Housing
2W10419455 Whirlpool Trim Band
3CLOWER GEARCASE (SILVER)
3LOWER GEARCASE (WHITE)
3AW10410014 Whirlpool Gearcase
3BW10450993 Whirlpool Gearcase
4CPLANETARY (SILVER)
4AWPW10419426 Whirlpool Planetary Assembly
4BPLANETARY (SILVER METALLIC)
4WPW10420628 Whirlpool Planetary Mixer
5BBOWL SUPPORT AND PINS (SILVER METALLIC)
5CW10327840 Whirlpool Support
5A9705360 Whirlpool Support Assembly
59703674 Whirlpool Support
6BCOLUMN AND PINS (SILVER METALLIC)
6CCOLUMN AND PINS (SILVER)
6COLUMN AND PINS (WHITE)
6AWPW10451578 Whirlpool Column
7BWPW10448633 Whirlpool Base
7C9709588 Whirlpool Base
79703690 Whirlpool Base
7A9705348 Whirlpool Base
