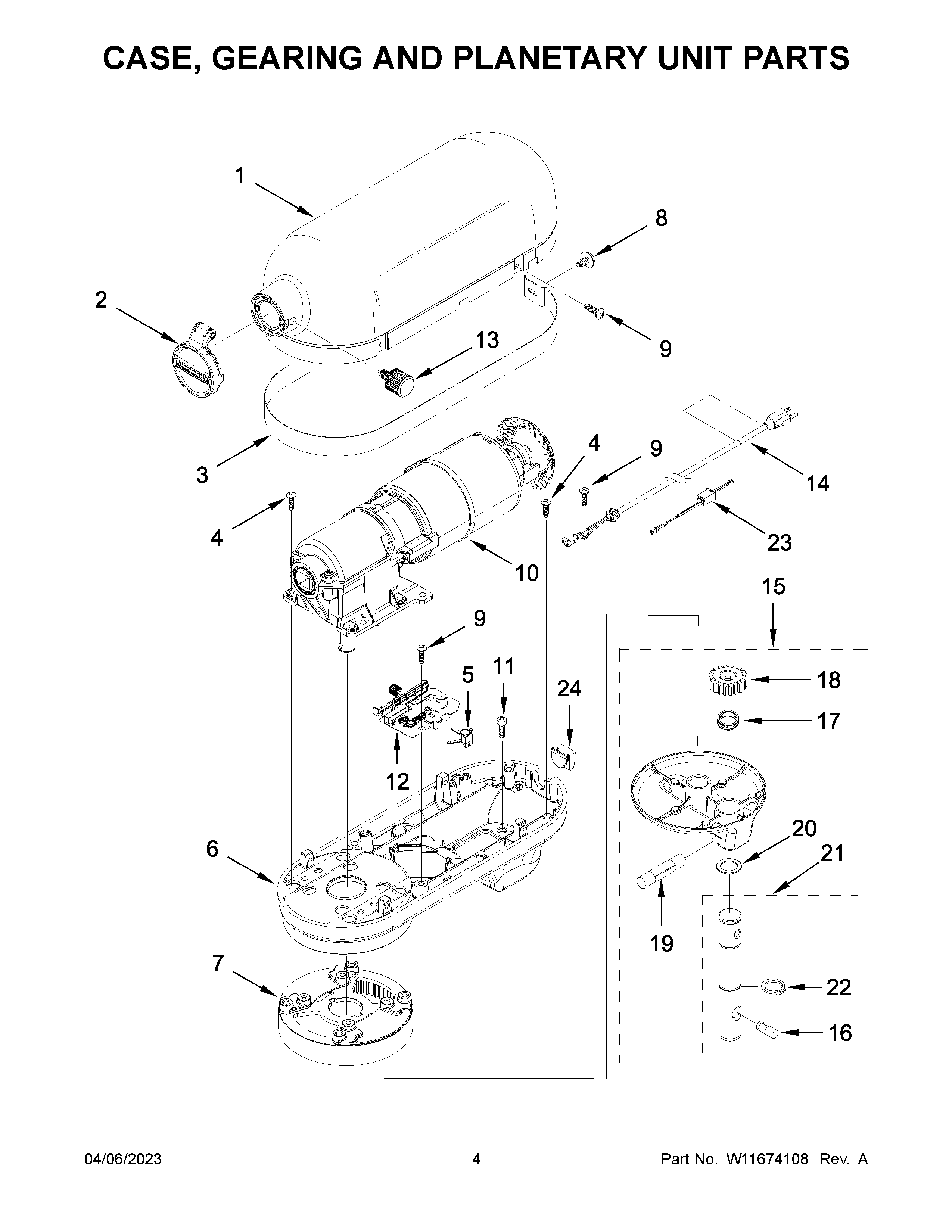

5KSM7990XBSL1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
2	WPW10395280 Whirlpool Hub Cap
4	W10914506 Whirlpool Screw
5	WPW10305968 Whirlpool Holder
7	ASSEMBLY, RING GEAR AND PLATE
8	W10853069 Whirlpool Screw
9	WP3400814 Whirlpool Screw
10	W11097334 Whirlpool Motor
11	W10913677 Whirlpool Screw
12	W11188058 Whirlpool Speed Control
13	WPW10360791 Whirlpool Screw
14	CORD, POWER (BLACK (UNITED KINGDOM))
15	CABINET (NOT A SERVICEABLE PART)
16	W11664709 Whirlpool Groove Pin
17	W11649170 Whirlpool Washer
18	GEAR, PINION
19	WPW10234531 Whirlpool Dishwasher Groove Pin
20	W10854966 Whirlpool Washer
21	SHAFT, AGITATOR
22	WP9703680 Whirlpool Retainer Ring
23	W11678212 Whirlpool Filter
24	W10417201 Whirlpool Clip
