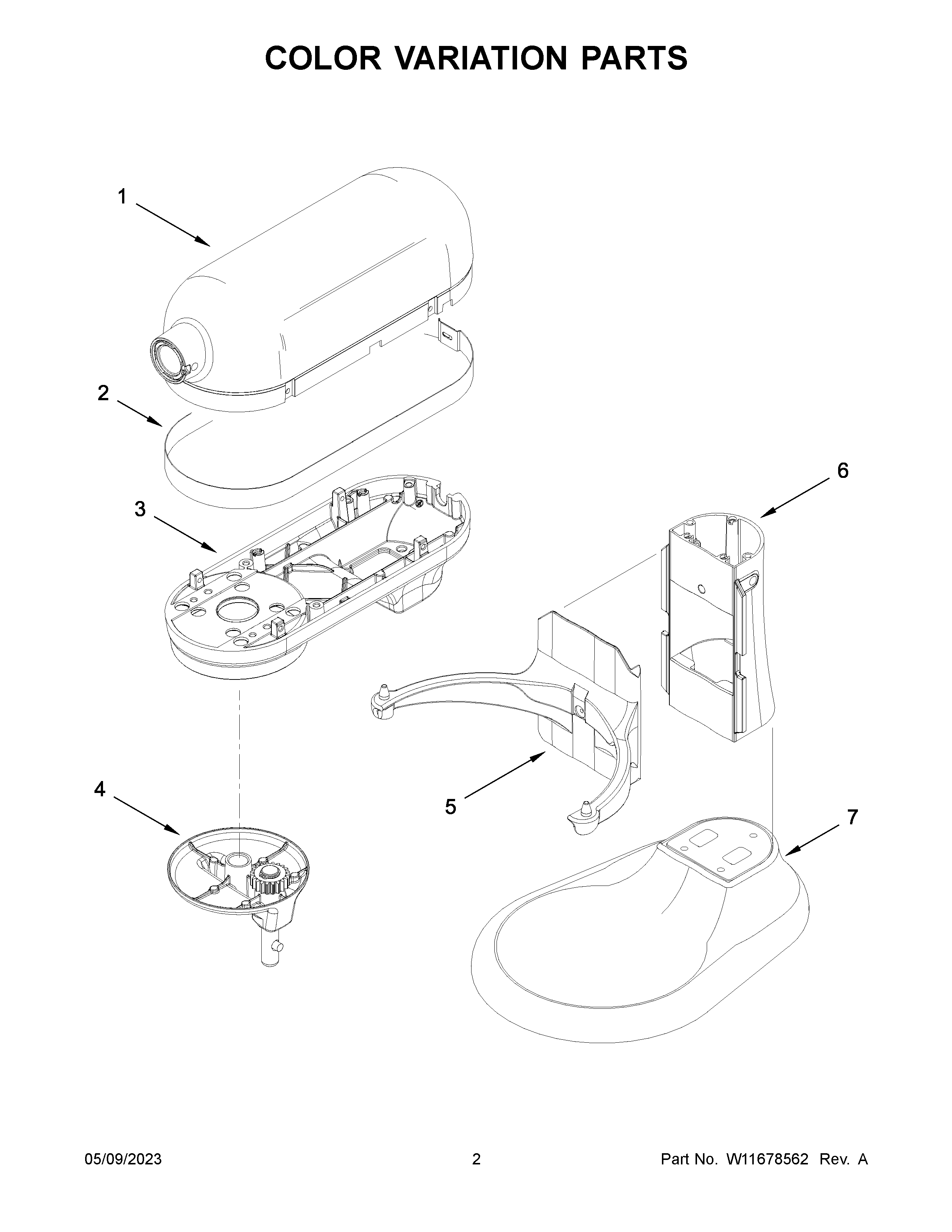

5KSM7990XESL1 02 – COLOR VARIATION PARTS

5KSM7990XESL1 02 – COLOR VARIATION PARTS

Written by

in

5KSM7990XESL1 02 – COLOR VARIATION PARTS

Products

PositionProduct
1B9703311 Whirlpool Housing Assembly
19705300 Whirlpool Housing Assembly
1A9709571 Whirlpool Housing Assembly
2TRIM BAND (DARK PLATINUM)
3LOWER GEARCASE (EMPIRE RED)
3ALOWER GEARCASE (SILVER)
3BLOWER GEARCASE (WHITE)
4PLANETARY
4BPLANETARY (WHITE)
4APLANETARY (SILVER)
5AW10327840 Whirlpool Support
59705360 Whirlpool Support Assembly
5B9703674 Whirlpool Support
6ACOLUMN AND PINS (SILVER)
6COLUMN AND PINS (EMPIRE RED)
6BCOLUMN AND PINS (WHITE)
7A9709588 Whirlpool Base
7B9703690 Whirlpool Base
79705348 Whirlpool Base
