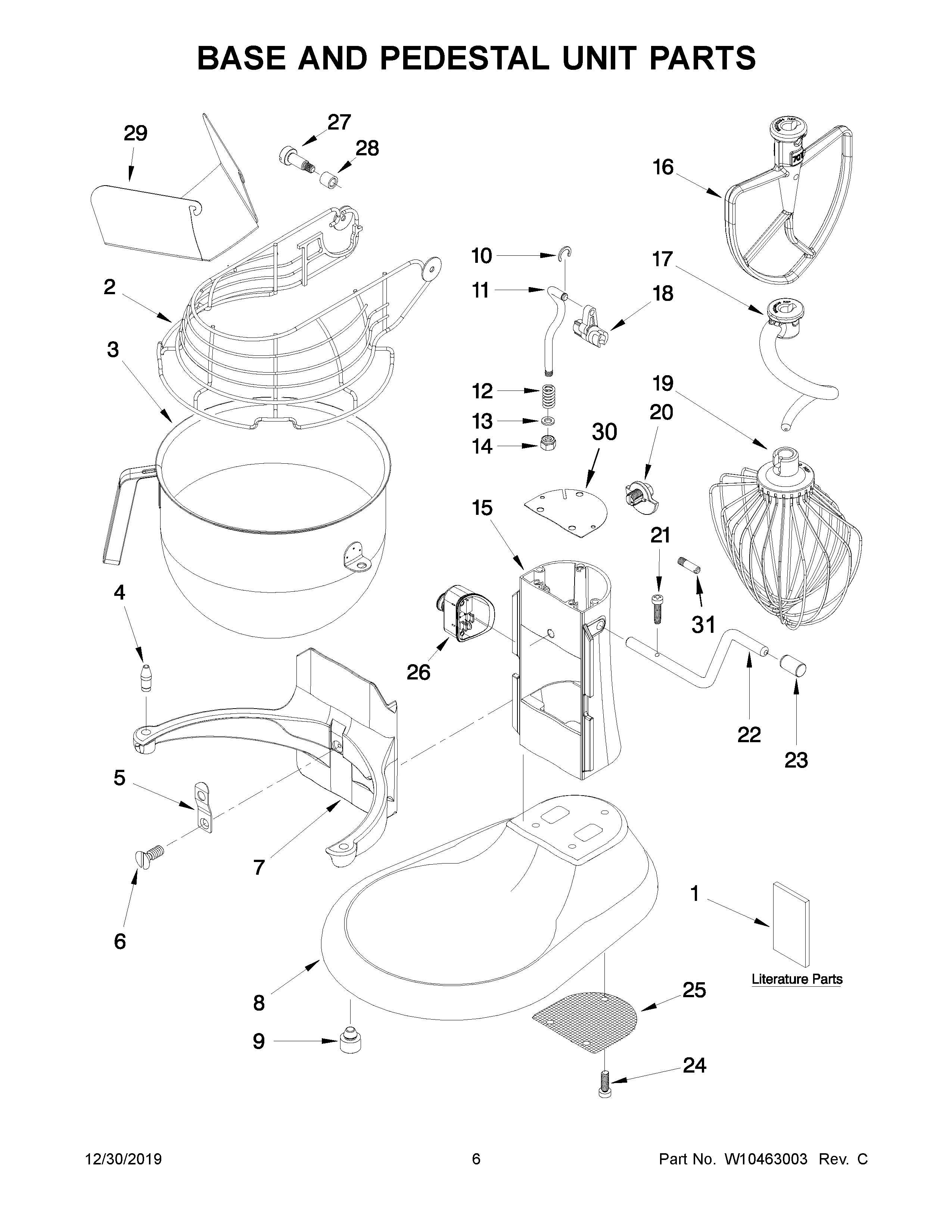

5KSM7990XEWH0 04 – BASE AND PEDESTAL UNIT PARTS

5KSM7990XEWH0 04 – BASE AND PEDESTAL UNIT PARTS

Written by

in

5KSM7990XEWH0 04 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2GUARD, BOWL
3WPW10354780 Whirlpool Bowl Mixer
4WP240185 Whirlpool Bowl Retaining Pin
5WPW10504114 Whirlpool Clip
6W10861883 Whirlpool Screw
9WP9708649 Whirlpool Foot
10WP9703307 Whirlpool Ring-C Assembly
11W11376364 Whirlpool Lift Rod
124159622 Whirlpool PP Spring
13Washer
148533907 Whirlpool Dishwasher Nut
15CABINET (NOT A SERVICEABLE PART)
16W11458649 Whirlpool Mixer Beater
17W11397072 Whirlpool Mixer Dough Hook
18WP9706885 Whirlpool Lift Arm Assembly
19WPW10600940 Whirlpool Wire Whip
20Cam, Adjusting
21WP3400814 Whirlpool Screw
22W11376371 Whirlpool Handle Assembly
23W11379274 Whirlpool Handle
24W10913677 Whirlpool Screw
259706814 Whirlpool Screen
26W11651610 Whirlpool Module
27W11676535 Whirlpool Guard Pin
28W11676536 Whirlpool Sleeve Assembly
29W10600050 Whirlpool Pour Shelf
30GASKET, COLUMN
31W10802060 Whirlpool Screw
