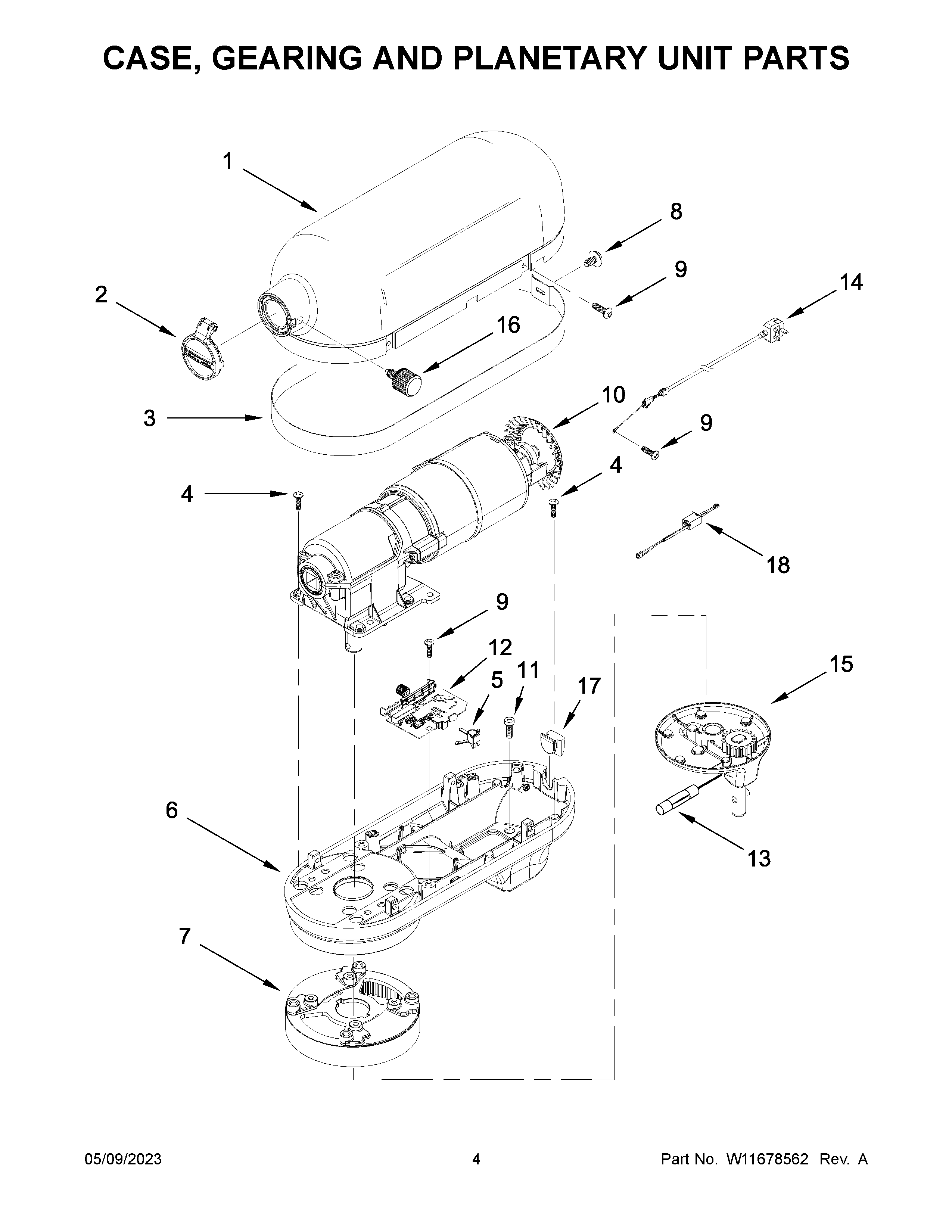

5KSM7990XEWH1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

5KSM7990XEWH1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Written by

in

5KSM7990XEWH1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
2WPW10395280 Whirlpool Hub Cap
4W10914506 Whirlpool Screw
5WPW10305968 Whirlpool Holder
7ASSEMBLY, RING GEAR AND PLATE
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10W11097334 Whirlpool Motor
11W10913677 Whirlpool Screw
12W11188058 Whirlpool Speed Control
13WPW10234531 Whirlpool Dishwasher Groove Pin
14W11678955 Whirlpool Power Cord
15CABINET (NOT A SERVICEABLE PART)
16WPW10360791 Whirlpool Screw
17W10417201 Whirlpool Clip
18W11678212 Whirlpool Filter
