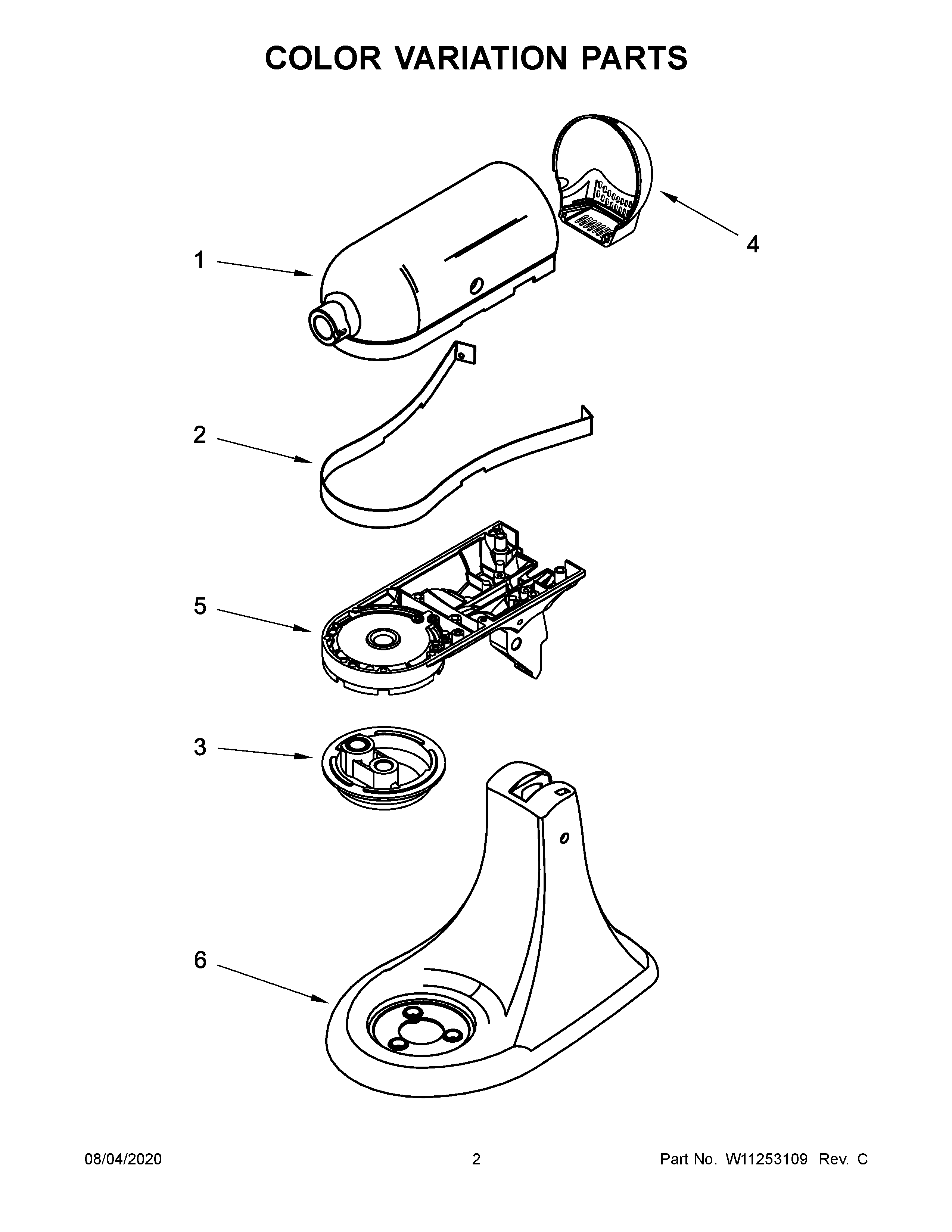

5KSM95PSEMC4 02 – COLOR VARIATION PARTS

Products

Position	Product
1B	9704025 Whirlpool Housing Assembly
1C	W10572197 Whirlpool Housing
1A	MOTOR HOUSING (SLATE/DARK PEWTER)
1	W10350463 Whirlpool Housing
2	W11230105 Whirlpool Trim Band
3B	9706670 Whirlpool Planetary
3A	PLANETARY (SLATE/DARK PEWTER)
3	W10350465 Whirlpool Planetary Mixer
3C	PLANETARY (GRENADINE)
4B	9704029 Whirlpool Cover Assembly
4A	END COVER (SLATE/DARK PEWTER)
4	W10350456 Whirlpool Cover Assembly
4C	W10572184 Whirlpool Cover
5C	W10572193 Whirlpool Gearcase Assembly
5	LOWER GEARCASE (CONTOUR SILVER)
5A	LOWER GEARCASE (SLATE/DARK PEWTER)
5B	9706662 Whirlpool Gearcase Assembly
6A	PEDESTAL, W/FEET AND HEADLOCK (SLATE/DARK PEWTER)
6	PEDESTAL (CONTOUR SILVER)
6C	PEDESTAL & FOOT (GRENADINE)
6B	PEDESTAL & FEET (METALLIC CHROME)
