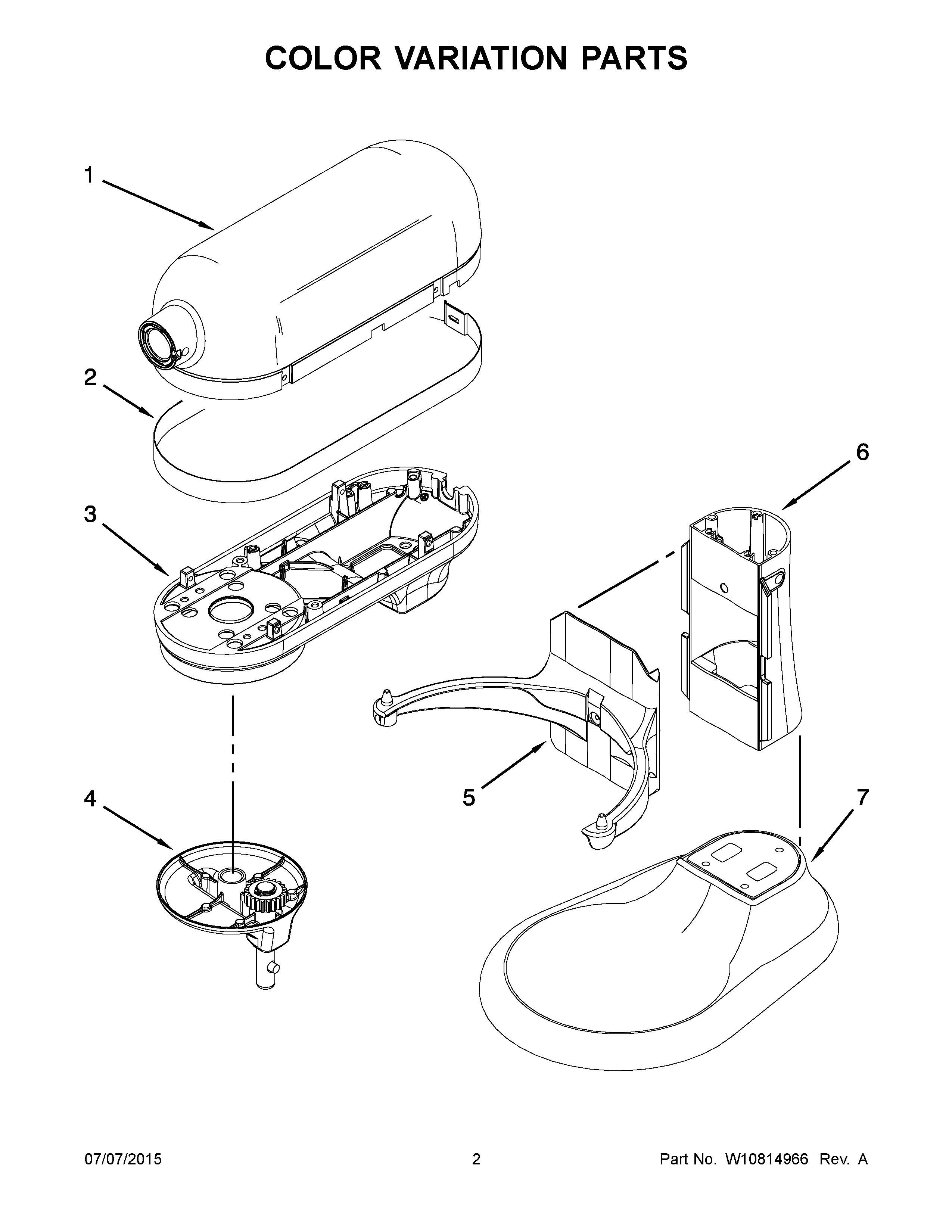

5KSMC895AER0 02 – COLOR VARIATION PARTS

Products

PositionProduct
19705300 Whirlpool Housing Assembly
2TRIM BAND (DARK PLATINUM)
3LOWER GEARCASE (EMPIRE RED)
4WPW10419426 Whirlpool Planetary Assembly
59705360 Whirlpool Support Assembly
6COLUMN AND PINS (EMPIRE RED)
79705348 Whirlpool Base
