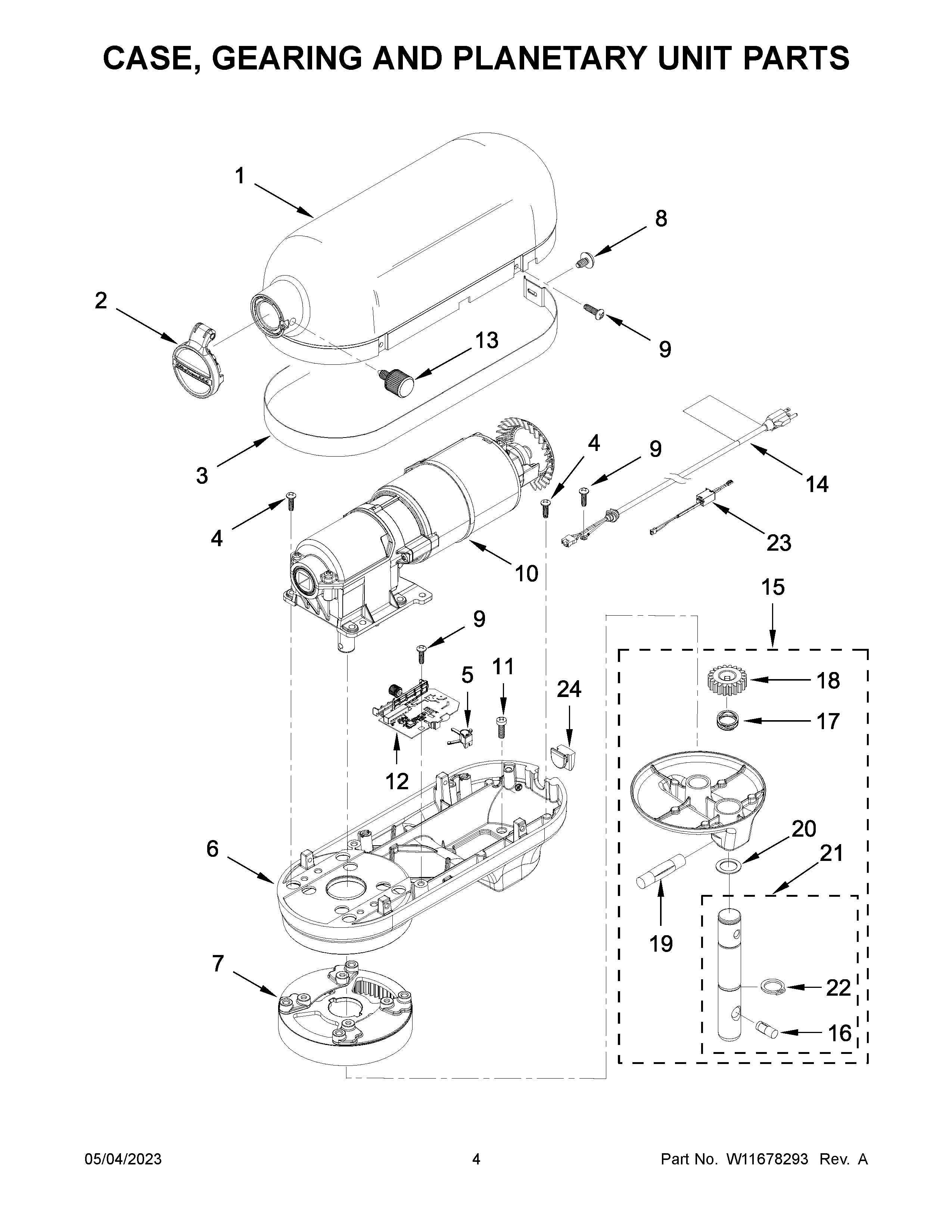

5KSMC895AER1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
1MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)
2WPW10395280 Whirlpool Hub Cap
3TRIM BAND (REFER TO COLOR VARIATION PARTS PAGE)
4W10914506 Whirlpool Screw
5WPW10305968 Whirlpool Holder
6LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE)
7ASSEMBLY, RING GEAR AND PLATE
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10W11097334 Whirlpool Motor
11W10913677 Whirlpool Screw
12W11188058 Whirlpool Speed Control
13WPW10360791 Whirlpool Screw
14CORD, POWER (BLACK (AUSTRALIA))
15PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
16W10417201 Whirlpool Clip
17W11678212 Whirlpool Filter
18WPW10234531 Whirlpool Dishwasher Groove Pin
