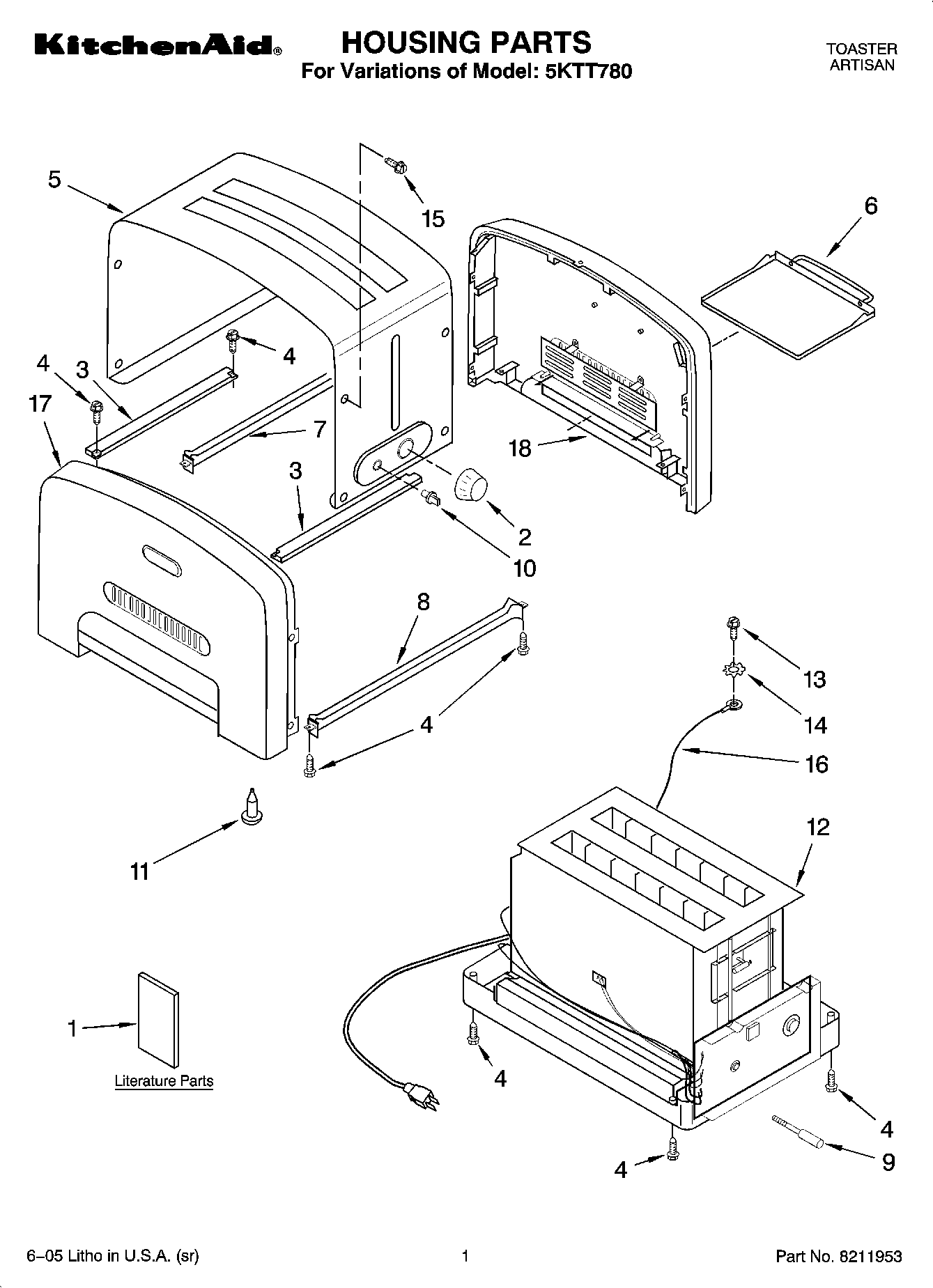

5KTT780 01 – HOUSING PARTSadmin2025-04-26T10:45:50+00:005KTT780 01 – HOUSING PARTS
Products
| Position | Product |
|---|
| 1 | List, Repair Parts (1) |
| 1 | Guide, Use & Care |
| 2 | Knob, Darkness |
| 3 | Support |
| 4 | Screw |
| 5 | Wrap Assembly (Includes Items 2 & 10) |
| 6 | Tray, Crumb |
| 7 | Bridge, Rear (Pearl Metallic) |
| 7 | Bridge, Rear (Empire Red) |
| 7 | Bridge, Rear (Cobalt Blue) |
| 7 | Bridge, Rear (Tangerine) |
| 8 | Bridge, Front (Cobalt Blue) |
| 8 | Bridge, Front (Empire Red) |
| 8 | Bridge, Front (Pearl Metallic) |
| 8 | Bridge, Front (Tangerine) |
| 9 | Arm, Lifter |
| 10 | Knob, On/Off |
| 11 | Foot, Rubber |
| 12 | Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) (Britain) |
| 12 | Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) (Australia) |
| 12 | Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) (Swiss) |
| 12 | Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) (Europe) |
| 13 | Screw, Grounding |
| 14 | Lock Washer |
| 15 | Screw, Wrap |
| 16 | Wire, Ground |
| 17 | Panel Assembly (Left) (Includes Badge & Vent) (Cobalt Blue) |
| 17 | Panel Assembly (Left) (Includes Badge & Vent) (Tangerine) |
| 17 | Panel Assembly (Left) (Includes Badge & Vent) (Pearl Metallic) |
| 17 | Panel Assembly (Left) (Includes Badge & Vent) (Empire Red) |
| 18 | WPL 4176835 |
| 18 | WPL 4176836 |
| 18 | WPL 4176833 |
| 18 | WPL 4176834 |
