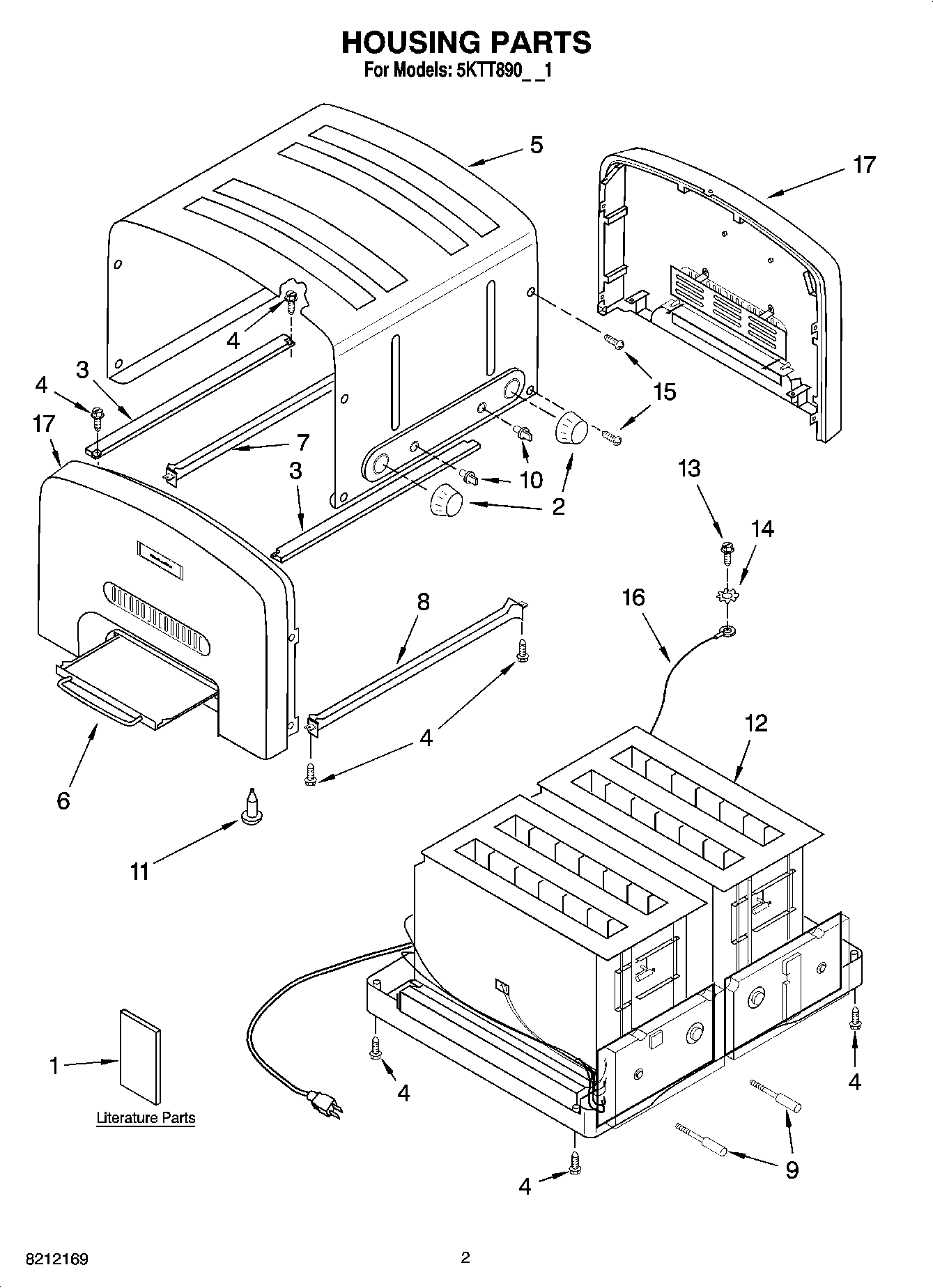

5KTT890EBU1 01 – HOUSING PARTS

Products

Position	Product
1	Guide, Use & Care
1	Repair Parts List
2	Knob, Darkness
3	Support
4	Screw
5	Wrap Assembly (Includes Items 2 & 10)
6	Tray, Crumb
7	Bridge, Rear (Pearl Metallic)
7	Bridge, Rear (Cobalt Blue)
8	Bridge, Front (Pearl Metallic)
8	Bridge, Front (Cobalt Blue)
9	Arm, Lifter
10	Knob, On/Off
11	Foot, Rubber
12	Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) (Europe)
12	Chassis (Includes Power Cord, Base, Control Boards, & Heating Elements) (Australia)
13	Screw, Grounding
14	Lock Washer
15	Screw, Wrap
16	Wire, Ground
17	WPL 4176833
17	WPL 4176836
