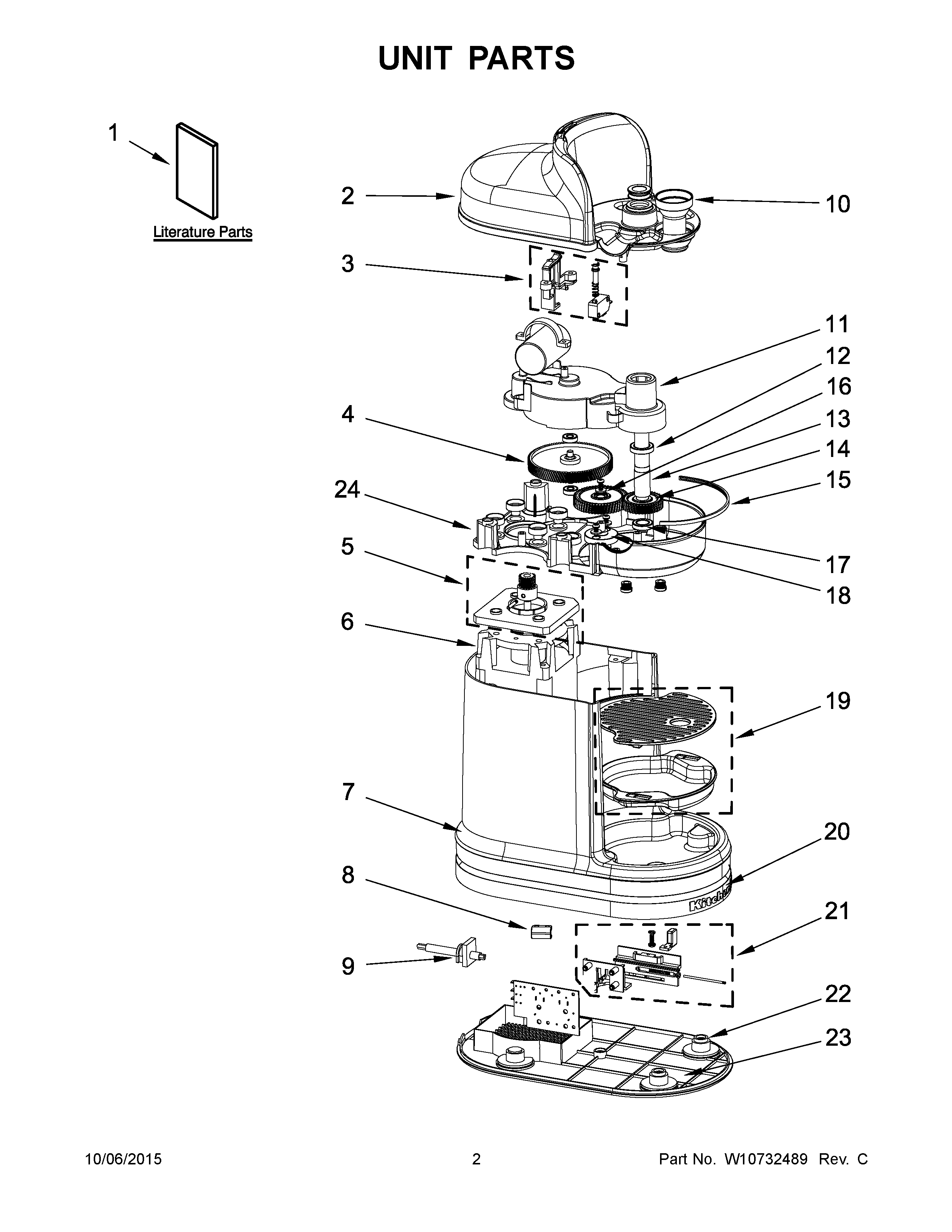

5KVJ0111BOB0 02 – UNIT PARTSadmin2025-04-26T10:45:32+00:005KVJ0111BOB0 02 – UNIT PARTS
Products
| Position | Product |
|---|
| 1B | CABINET (NOT A SERVICEABLE PART) |
| 1 | USE AND CARE GUIDE, US |
| 1A | USE AND CARE GUIDE, EUROPEAN |
| 2E | COVER, HOUSING (MEDALLION SILVER) |
| 2D | COVER, HOUSING (ALMOND CREME) |
| 2C | COVER, HOUSING (CANDY APPLE) |
| 2B | COVER, HOUSING (CONTOUR SILVER) |
| 2A | COVER, HOUSING (ONYX BLACK) |
| 2 | COVER, HOUSING (WHITE) |
| 3 | SWITCH, MICRO |
| 4 | GEAR, COMPOUND |
| 5 | BRACKET, MOTOR ASSEMBLY |
| 6 | MOTOR (INCLUDES CAPACITOR) (U.S.) |
| 6A | MOTOR (INCLUDES CAPACITOR) (EUROPEAN) |
| 7 | BASE HOUSING (WHITE, U.S.) |
| 7A | BASE HOUSING (ONYX BLACK, U.S.) |
| 7B | BASE HOUSING (ONYX BLACK, EUROPEAN) |
| 7D | BASE HOUSING (CANDY APPLE, EUROPEAN) |
| 7E | BASE HOUSING (ALMOND CREME) |
| 7F | BASE HOUSING (MEDALLION SILVER) |
| 7C | BASE HOUSING (CONTOUR SILVER, U.S.) |
| 8 | SUPPORT, CORD LOCK |
| 9B | CORD, POWER (BRAZIL) |
| 9A | CORD, POWER (EUROPEAN) |
| 9 | CORD, POWER (U.S.) |
| 10 | W10736798 Whirlpool Spout |
| 11 | COVER, GEARBOX |
| 12 | BEARING, BALL |
| 13 | SHAFT, OUTPUT GEAR |
| 14 | GEAR, OUTPUT |
| 15 | SEAL, GEARBOX |
| 16 | GEAR, IDLER |
| 17 | BEARING, BALL |
| 18 | SHAFT, POWER |
| 19 | COVER, TRAY GRATE |
| 20 | TRIM BAND (U.S.) |
| 20A | TRIM BAND (EUROPEAN) |
| 21 | SWITCH ASSEMBLY |
| 22 | BASE |
| 22A | BASE, BRAZIL |
| 23 | FOOT |
| 24E | WPL W10842695 |
| 24D | GEAR BOX (ALMOND C |
| 24C | GEAR BOX (CANDY APPLE) |
| 24B | GEAR BOX (CONTOUR SILVER) |
| 24 | GEAR BOX (WHITE) |
| 24A | GEAR BOX (ONYX BLACK) |
