5KVJ0111BOB0 03 – ATTACHMENT PARTS

5KVJ0111BOB0 03 – ATTACHMENT PARTS

Written by

in

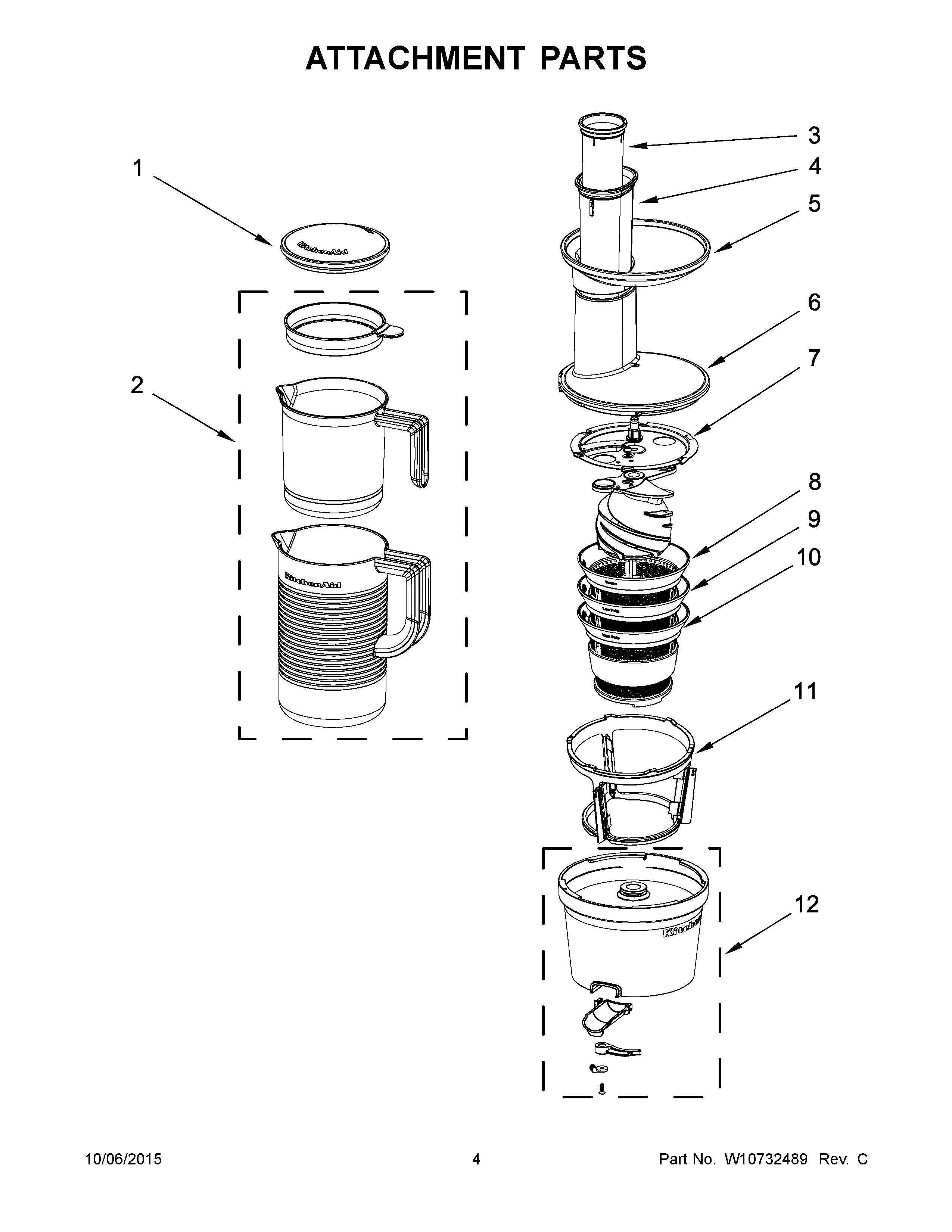

5KVJ0111BOB0 03 – ATTACHMENT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10724168 Whirlpool Brush
NIW10842677 Whirlpool Storage Box
1LID, JUICER
2CONTAINER, JUICER ASSEMBLY
3W10724133 Whirlpool Pusher
4W10724135 Whirlpool Pusher Assembly
5W10724136 Whirlpool Cap
6W10724137 Whirlpool Lid
7BLADE, AUGER ASSEMBLY
8W10724156 Whirlpool Basket Assembly
9W10724157 Whirlpool Basket
10W10724145 Whirlpool Basket
11W10724160 Whirlpool Arm
12W10736797 Whirlpool Bowl
