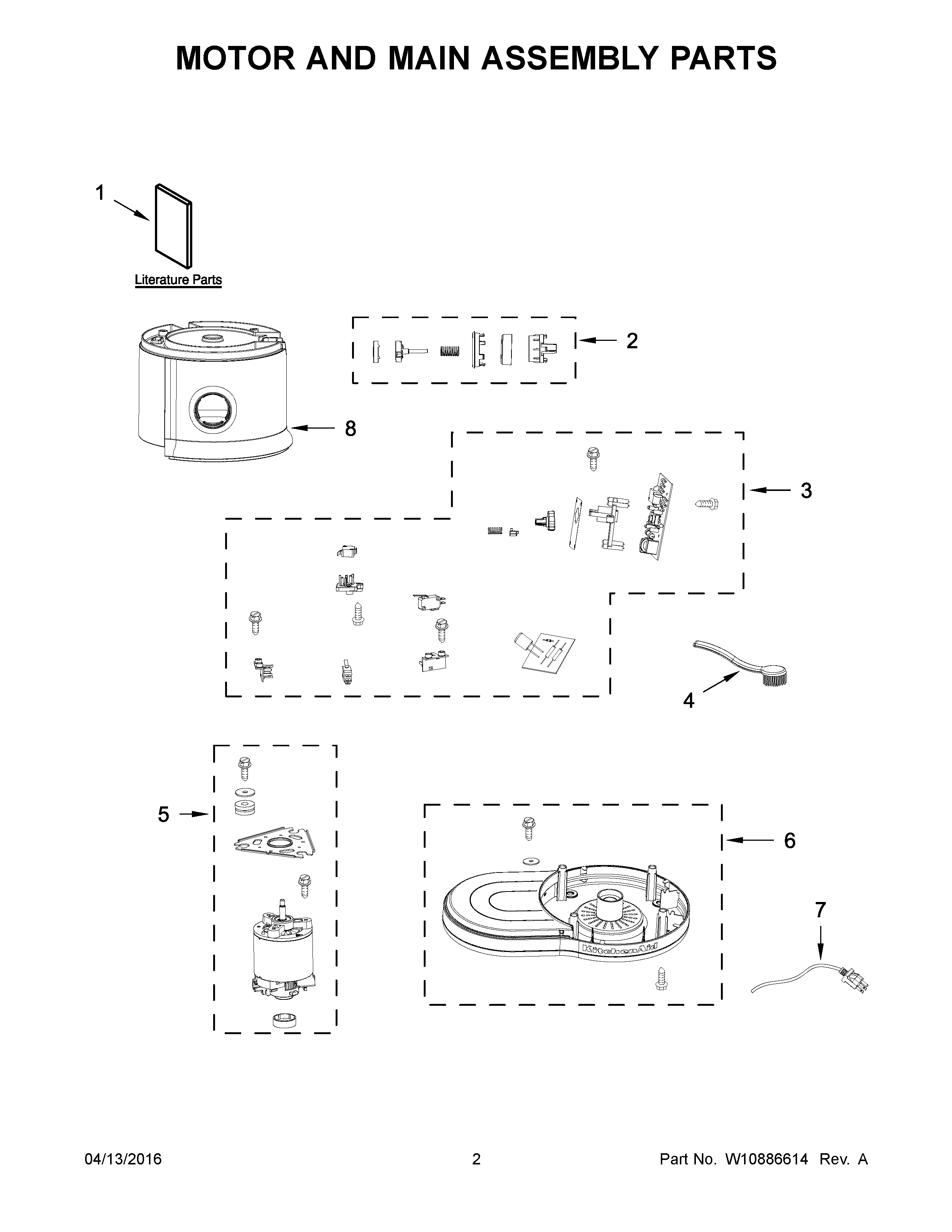

5KVJ0332EAC1 02 – MOTOR AND MAIN ASSEMBLY PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	SWITCH ASSEMBLY
3A	PCB ASSEMBLY (BRAZIL)
3	PCB ASSEMBLY
4	BRUSH, CLEANING
5	MOTOR, 220-240V
5A	MOTOR, 110V
6	BASE ASSEMBLY (INCLUDES TRIMBAND)
6A	BASE ASSEMBLY (INCLUDES TRIMBAND, BRAZIL)
7	CORD, POWER (EUROPE)
7A	CORD, POWER (UNITED KINGDOM)
7B	W10850152 Whirlpool Power Cord
8A	LOWER BODY HOUSING (CANDY APPLE)
8B	LOWER BODY HOUSING (EMPIRE RED)
8C	LOWER BODY HOUSING (MEDALLION SILVER)
8D	LOWER BODY HOUSING (ONYX BLACK)
8	LOWER BODY HOUSING (ALMOND CREME)
